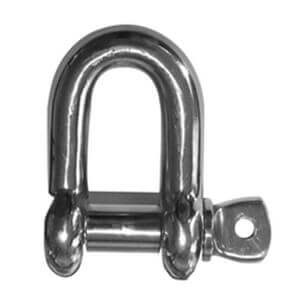

Stainless Steel Screw Pin Chain Shackle
| STOCK NUMBER | SIZE | PIN DIAMETER | DIMENSIONS | WORKING LOAD LIMIT | WEIGHT/PIECE | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | |||||
| SSPCH187 | 3/16″ | 1/4″ | .47″ | .31″ | .25″ | .25″ | .97″ | .62″ | .97″ | 1.59″ | .19″ | 1.43″ | 650 lbs. | 0.10 lbs. |
| SSPCH250 | 1/4″ | 5/16″ | .53″ | .38″ | .31″ | .31″ | 1.15″ | .75″ | 1.07″ | 1.91″ | .22″ | 1.71″ | 880 lbs. | 0.11 lbs. |
| SSPCH312 | 5/16″ | 3/8″ | .66″ | .44″ | .38″ | .38″ | 1.42″ | .92″ | 1.28″ | 2.31″ | .25″ | 2.02″ | 1300 lbs. | 0.18 lbs. |
| SSPCH375 | 3/8″ | 7/16″ | .75″ | .50″ | .44″ | .44″ | 1.63″ | 1.06″ | 1.48″ | 2.67″ | .31″ | 2.37″ | 1500 lbs. | 0.31 lbs. |
| SSPCH500 | 1/2″ | 5/8″ | 1.06 | .75″ | .63″ | .63″ | 2.32″ | 1.50″ | 2.04″ | 3.76″ | .44″ | 3.34″ | 3000 lbs. | 0.68 lbs. |
| SSPCH625 | 5/8″ | 3/4″ | 1.25″ | .88″ | .81″ | .75″ | 2.75″ | 1.81″ | 2.40″ | 4.53″ | .50″ | 3.97″ | 4000 lbs. | 1.26 lbs. |
| SSPCH750 | 3/4″ | 7/8″ | 1.44″ | 1.00″ | .97″ | .88″ | 3.20″ | 2.10″ | 2.86″ | 5.33″ | .50″ | 4.50″ | 6000 lbs. | 2.10 lbs. |
| SSPCH875 | 7/8″ | 1″ | 1.69″ | 1.13″ | 1.00″ | 1.00″ | 3.69″ | 2.38″ | 3.24″ | 5.94″ | .56″ | 5.13″ | 8000 lbs. | 3.30 lbs. |
