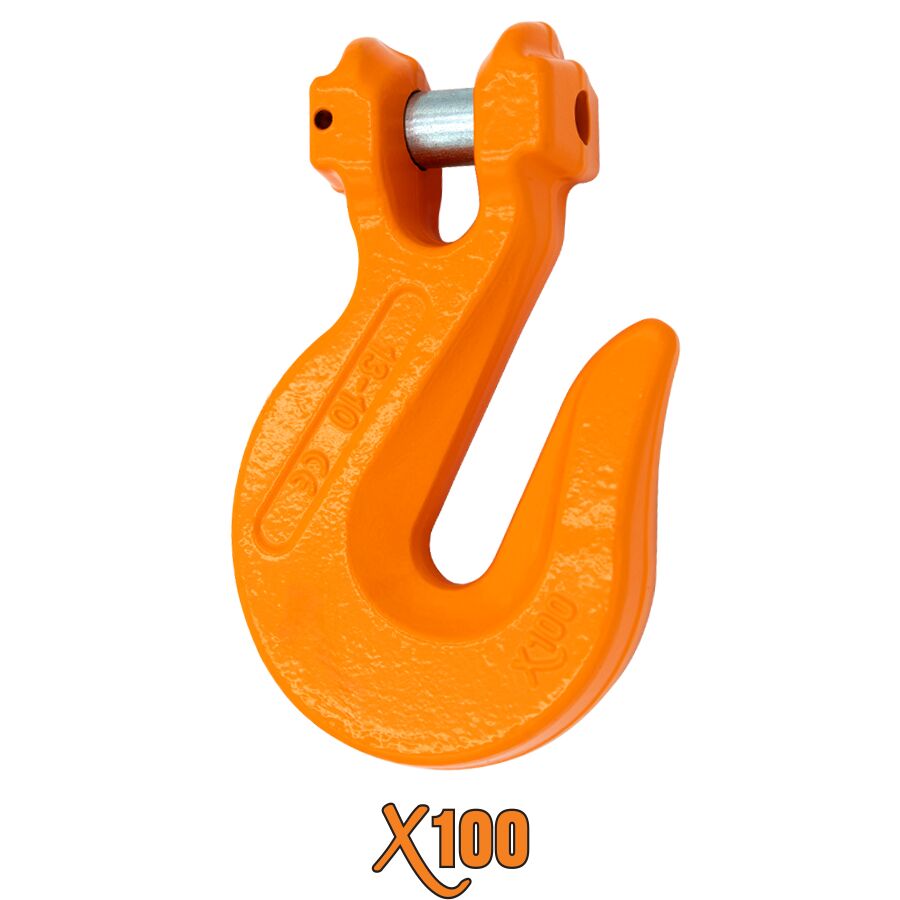

X100® Grade 100 Clevis Grab Hook Without Cradle
- Approved for Overhead Lifting
- Forged Alloy Steel
- Quenched and Tempered
- Powder Coated HI-VIZ Safety Orange
- 100% Proof Tested at 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
- Embossed Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability
| STOCK NUMBER | SIZE | DIMENSIONS | THICKNESS | WEIGHT/PIECE (LBS.) | WORKING LOAD LIMIT | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| XCG281-312NC | 9/32″-5/16″ | 0.36” | 1.46” | 0.40” | 2.38” | 3.74” | 0.923″ | 0.924 | 5,700 lbs. |
| XCG375NC | 3/8″ | 0.49″ | 1.89″ | 0.51″ | 3.16″ | 4.99″ | 1.105″ | 1.848 | 8,800 lbs. |
| XCG500NC | 1/2” | 0.63″ | 2.24″ | 0.67″ | 3.81″ | 6.10″ | 1.508″ | 3.718 | 15,000 lbs. |
| XCG625NC | 5/8″ | 0.77″ | 2.82″ | 0.79″ | 4.84″ | 7.78″ | 1.821″ | 6.688 | 22,600 lbs. |
| STOCK NUMBER | SIZE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| XCG281-312NC | 9/32″-5/16″ | 0.36” | 1.46” | 0.40” | 2.38” | 3.74” |
| XCG375NC | 3/8″ | 0.49″ | 1.89″ | 0.51″ | 3.16″ | 4.99″ |
| XCG500NC | 1/2” | 0.63″ | 2.24″ | 0.67″ | 3.81″ | 6.10″ |
| XCG625NC | 5/8″ | 0.77″ | 2.82″ | 0.79″ | 4.84″ | 7.78″ |
