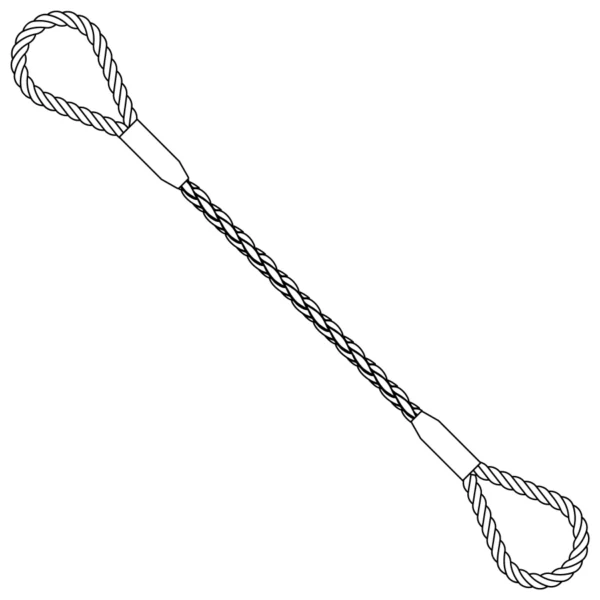

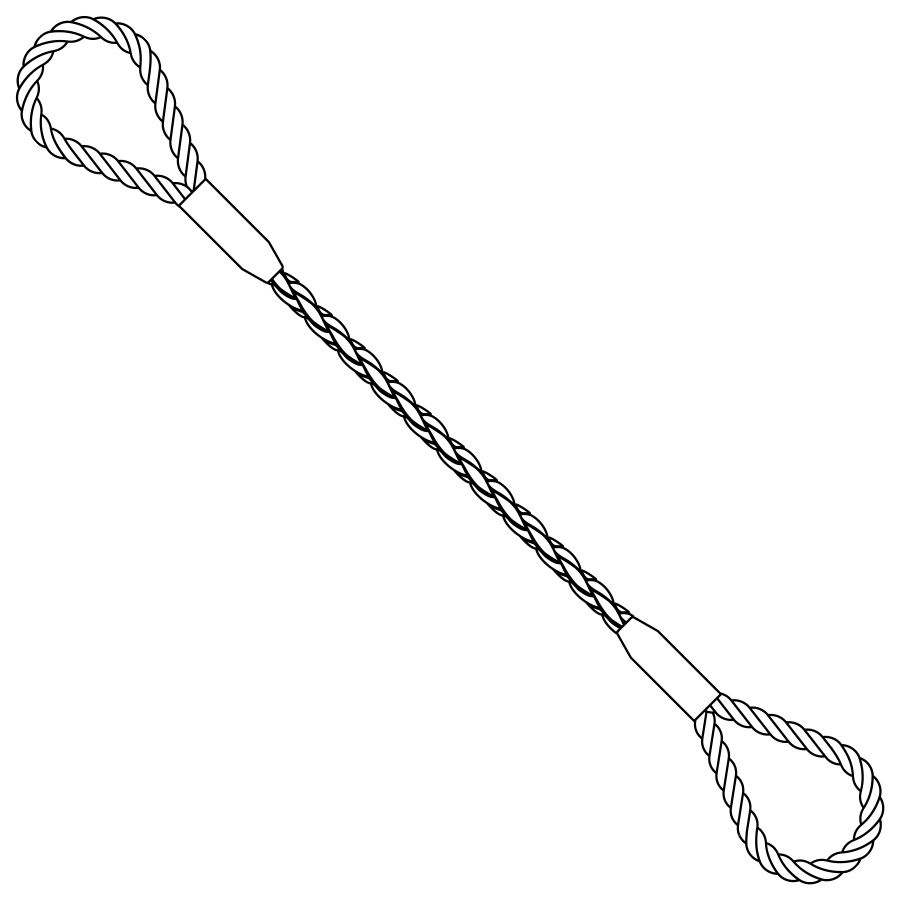

Braided Slings
- Available in 3-Part, 6-Part, 7-Part and 8-Part

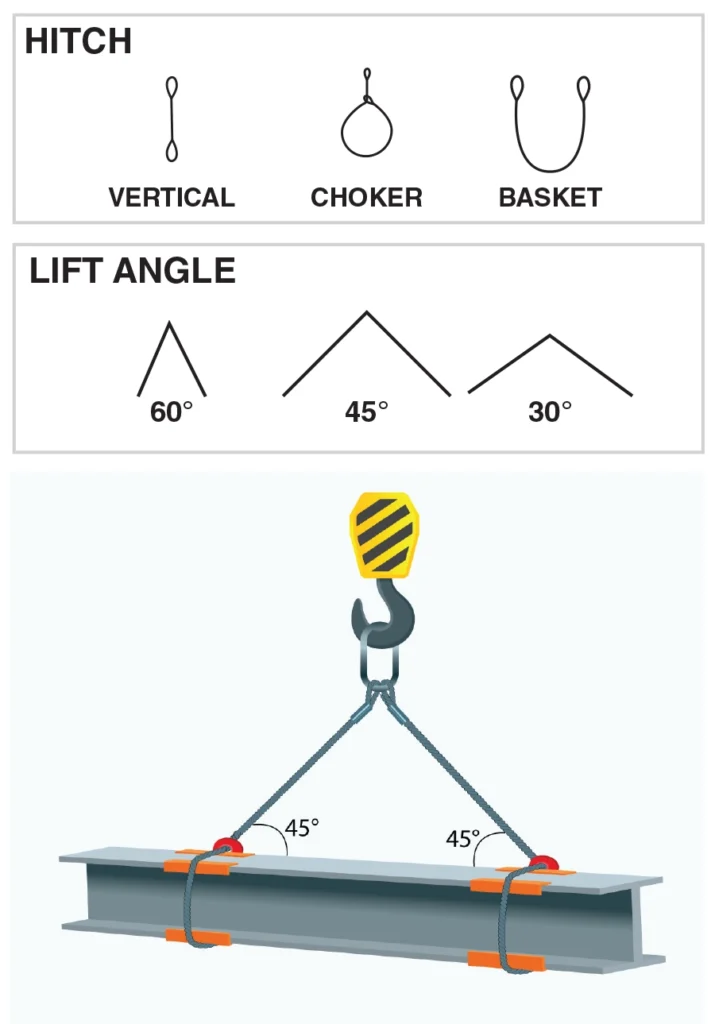

- Hitch Types: Vertical, Choker, or Basket
| DIAMETER OF INDIVIDUAL PARTS |
ONE SLING 3 PARTS EIP | |
|---|---|---|
| VERTICAL RATED LOAD (TONS) |
FINISHED DIAMETER | |
| 1/4″ | 1.7 | 1/2″ |
| 5/16″ | 2.6 | 5/8″ |
| 3/8″ | 3.6 | 3/4″ |
| 7/16″ | 4.9 | 7/8″ |
| 1/2″ | 6.4 | 1″ |
| 9/16″ | 8 | 1 1/8″ |
| 5/8″ | 9.9 | 1 1/4″ |
| 3/4″ | 14 | 1 1/2″ |
| 7/8″ | 19 | 1 3/4″ |
| 1″ | 24.8 | 2″ |
| 1 1/8″ | 31.2 | 2 1/4″ |
| 1 1/4″ | 38.4 | 2 1/2″ |
| 1 3/8″ | 46 | 2 3/4″ |
| 1 1/2″ | 55 | 3″ |
| 1 5/8″ | 63.4 | 3 1/4″ |
| 1 3/4″ | 73 | 3 1/2″ |
| 2″ | 95 | 4″ |
| 2 1/4″ | 118 | 2 1/2″ |
| 2 1/2″ | 145 | 5″ |
Sling capacities for rope diameters 1/8” through 5/16” are based on 7X19 GAC.
*Rated capacities basket hitch based on D/d ratio of 25 times the component rope diameter. Rated capacities based on pin diameter no larger than the natural eye width or no less than the nominal sling diameter. Rated capacities based on design factor of 5.
** See Choker Hitch Rated Capacity Adjustment.
| ROPE DIA | SLING BODY DIAMETER | VERTICAL RATED CAPACITY (TONS)* | STANDARD EYE DIMENSION |
THIMBLE | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN. SLING LENGTH STANDARD EYE |
BODY WIDTH | BODY THICKNESS |
VERTICAL | CHOKER | BASKET** | WIDTH | LENGTH | SLIP THRU (IN.) |
HEAVY DUTY (IN.) |
||||
| BASKET | 60° | 45° | 30° | ||||||||||
| 3/32” | 2’0” | 7/16” | 1/4” | .42 | .37 | .84 | .73 | .59 | .42 | 2” | 4” | W-2 | 1/4” |
| 1/8” | 2’0” | 9/16” | 3/8” | .84 | .74 | 1.7 | 1.5 | 1.2 | .84 | 3” | 6” | W-2 | 5/16 |
| 3/16” | 3’0” | 13/16” | 1/2” | 1.6 | 1.4 | 3.2 | 2.8 | 2.3 | 1.6 | 4” | 8” | W-3 | 1/2” |
| 1/4” | 3’6” | 1 1/8” | 11/16” | 2.9 | 2.5 | 5.7 | 4.9 | 4 | 2.9 | 5” | 10” | W-4 | 5/8” |
| 5/16” | 4’6” | 1 3/8” | 7/8” | 4.4 | 3.9 | 8.9 | 7.7 | 6.3 | 4.4 | 6” | 12” | W-4 | 3/4” |
| 3/8” | 5’0” | 1 11/16” | 1” | 6.3 | 5.5 | 13 | 11 | 9 | 6.3 | 7” | 14” | W-5 | 7/8” |
| 7/16” | 6’0” | 2” | 1 3/16” | 8.6 | 7.5 | 17 | 15 | 12 | 8.6 | 8” | 16” | W-5 | 1” |
| 1/2” | 6’6” | 2 1/4” | 1 5/16” | 11 | 9.8 | 22 | 19 | 16 | 11 | 9” | 18” | W-6 | 1 1/8” |
| 9/16” | 7’0” | 2 1/2” | 1 1/2” | 14 | 12 | 28 | 24 | 20 | 14 | 10” | 20” | W-6 | 1 3/8” |
| 5/8” | 8’0” | 2 13/16” | 1 11/16” | 17 | 15 | 35 | 30 | 24 | 17 | 11” | 22” | W-7 | 1 1/2” |
| 3/4” | 9’0” | 3 3/8” | 2” | 25 | 22 | 49 | 43 | 35 | 25 | 12” | 24” | W-8 | 1 5/8” |
| 7/8” | 10’0” | 4” | 2 5/16” | 33 | 29 | 67 | 58 | 47 | 33 | 14” | 28” | W-9 | 2” |
| 1” | 11’ 0” | 4 1/2” | 2 11/16” | 43 | 38 | 87 | 75 | 61 | 43 | 16” | 32” | W-10 | – |
Sling capacities for rope diameters 1/8” through 5/16” are based on 7X19 GAC.
*Rated capacities basket hitch based on D/d ratio of 25 times the component rope diameter. Rated capacities based on pin diameter no larger than the natural eye width or no less than the nominal sling diameter. Rated capacities based on design factor of 5.
** See Choker Hitch Rated Capacity Adjustment.
| ROPE DIA | SLING BODY DIAMETER | VERTICAL RATED CAPACITY (TONS)* | STANDARD EYE DIMENSION |
||||||
|---|---|---|---|---|---|---|---|---|---|
| VERTICAL | CHOKER | BASKET** | WIDTH | LENGTH | |||||
| BASKET | 60° | 45° | 30° | ||||||
| * 1/8” | 3/8” | 1.2 | 1 | 2.4 | 2 | 1.6 | 1.2 | 3” | 6” |
| * 3/16” | 9/16” | 2.4 | 2.1 | 4.8 | 4.2 | 3.4 | 2.4 | 4” | 8” |
| * 1/4” | 3/4” | 4 | 3.5 | 8 | 6.9 | 5.7 | 4 | 5” | 10” |
| * 5/16” | 1” | 5.6 | 4.9 | 11.2 | 9.7 | 8 | 5.6 | 6” | 12” |
| 3/8” | 1 1/8” | 8.7 | 7.6 | 17.4 | 15 | 12.3 | 8.7 | 7 1/2” | 15” |
| 7/16” | 1 5/16” | 11.7 | 10.3 | 23.4 | 20.3 | 46.5 | 11.7 | 9” | 18” |
| 1/2” | 1 1/2” | 15.3 | 13.4 | 30.6 | 26.5 | 21.6 | 15.3 | 10” | 20” |
| 9/16” | 1 3/4” | 19.3 | 16.9 | 38.6 | 33.4 | 27.3 | 19.3 | 12” | 24” |
| 5/8” | 1 7/8” | 23.7 | 20.7 | 47.4 | 41 | 33.5 | 23.7 | 12” | 24” |
| 3/4” | 2 1/4” | 33.8 | 29.5 | 67.5 | 58.5 | 47.7 | 33.8 | 15” | 30” |
| 7/8” | 2 5/8” | 45.7 | 40 | 91.4 | 79.2 | 64.6 | 45.7 | 17” | 34” |
| 1” | 3” | 59.4 | 52 | 18.7 | 102.8 | 81.9 | 59.4 | 20” | 40” |
| 1 1/8” | 3 3/8” | 75 | 65 | 149 | 129 | 105 | 75 | 22” | 44” |
| 1 1/4” | 3 3/4” | 92 | 80 | 184 | 159 | 130 | 92 | 25” | 50” |
| 1 3/8” | 4 1/8” | 110 | 96 | 220 | 190 | 156 | 110 | 27” | 54” |
| 1 1/2” | 4 1/2” | 131 | 115 | 262 | 227 | 185 | 131 | 30” | 60” |
| 1 3/4” | 5 1/4” | 176 | 154 | 351 | 304 | 248 | 176 | 35” | 70” |
| 2” | 6” | 227 | 199 | 455 | 394 | 321 | 227 | 40” | 80” |
| 2 1/4” | 6 3/4” | 284 | 248 | 567 | 491 | 401 | 284 | 45” | 90” |
| 2 1/2” | 7 1/2” | 347 | 303 | 693 | 600 | 490 | 347 | 50” | 100” |
| 2 3/4” | 8 1/4” | 414 | 363 | 828 | 717 | 585 | 414 | 55” | 110” |
Sling capacities for rope diameters 1/8” through 5/16” are based on 7X19 GAC.
*Rated capacities basket hitch based on D/d ratio of 25 times the component rope diameter. Rated capacities based on pin diameter no larger than the natural eye width or no less than the nominal sling diameter. Rated capacities based on design factor of 5.
** See Choker Hitch Rated Capacity Adjustment.
| ROPE DIA | MIN. SLING LENGTH STANDARD EYE |
SLING DIA. |
VERTICAL RATED CAPACITY (TONS)* | STANDARD EYE DIMENSION |
THIMBLE | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VERTICAL | CHOKER | BASKET** | WIDTH | LENGTH | SLIP THRU (IN.) |
HEAVY DUTY (IN.) | ||||||
| BASKET | 60° | 45° | 30° | |||||||||
| 3/32” | 2’ 0” | 7/16” | .56 | .49 | 1.1 | .97 | .79 | .56 | 2” | 4” | W-2 | 5/16” |
| 1/8” | 2’ 0” | 9/16” | 1.1 | 1 | 2.2 | 1.9 | 1.6 | 1.1 | 3” | 6” | W-2 | 3/8” |
| 3/16” | 3’ 0” | 13/16” | 2.2 | 1.9 | 4.3 | 3.7 | 3 | 2.2 | 4” | 8” | W-3 | 1/2” |
| 1/4” | 3’ 6” | 1 1/8” | 3.8 | 3.3 | 7.6 | 6.6 | 5.4 | 3.8 | 5” | 10” | W-4 | 3/4” |
| 5/16” | 4’ 6” | 1 3/8” | 5.9 | 5.2 | 12 | 10 | 8.3 | 5.9 | 6” | 12” | W-5 | 1″ |
| 3/8” | 5’ 0” | 1 11/16” | 8.5 | 7.4 | 17 | 15 | 12 | 8.5 | 7” | 14” | W-5 | 1 1/8” |
| 7/16” | 6’ 0” | 2” | 11 | 10 | 23 | 20 | 16 | 11 | 8” | 16” | W-6 | 1 1/4” |
| 1/2” | 6’ 6” | 2 1/4” | 15 | 13 | 30 | 26 | 21 | 15 | 9” | 18” | W-7 | 1 3/8” |
| 9/16” | 7’ 0” | 2 1/2” | 19 | 16 | 38 | 33 | 27 | 19 | 10” | 20” | W-7 | 1 1/2” |
| 5/8” | 8’ 0” | 2 13/16” | 23 | 20 | 46 | 40 | 33 | 23 | 11” | 22” | W-8 | 1 3/4” |
| 3/4” | 9’ 0” | 3 3/8” | 33 | 29 | 66 | 57 | 47 | 33 | 12” | 24” | W-9 | 2” |
| 7/8” | 10’ 0” | 4” | 45 | 39 | 89 | 77 | 63 | 45 | 14” | 28” | W-10 | – |
| 1” | 11’ 0” | 4 1/2” | 58 | 51 | 116 | 100 | 82 | 58 | 16” | 32” | W-10 | – |
Sling capacities for rope diameters 1/8” through 5/16” are based on 7X19 GAC.
*Rated capacities basket hitch based on D/d ratio of 25 times the component rope diameter. Rated capacities based on pin diameter no larger than the natural eye width or no less than the nominal sling diameter. Rated capacities based on design factor of 5.
** See Choker Hitch Rated Capacity Adjustment.
