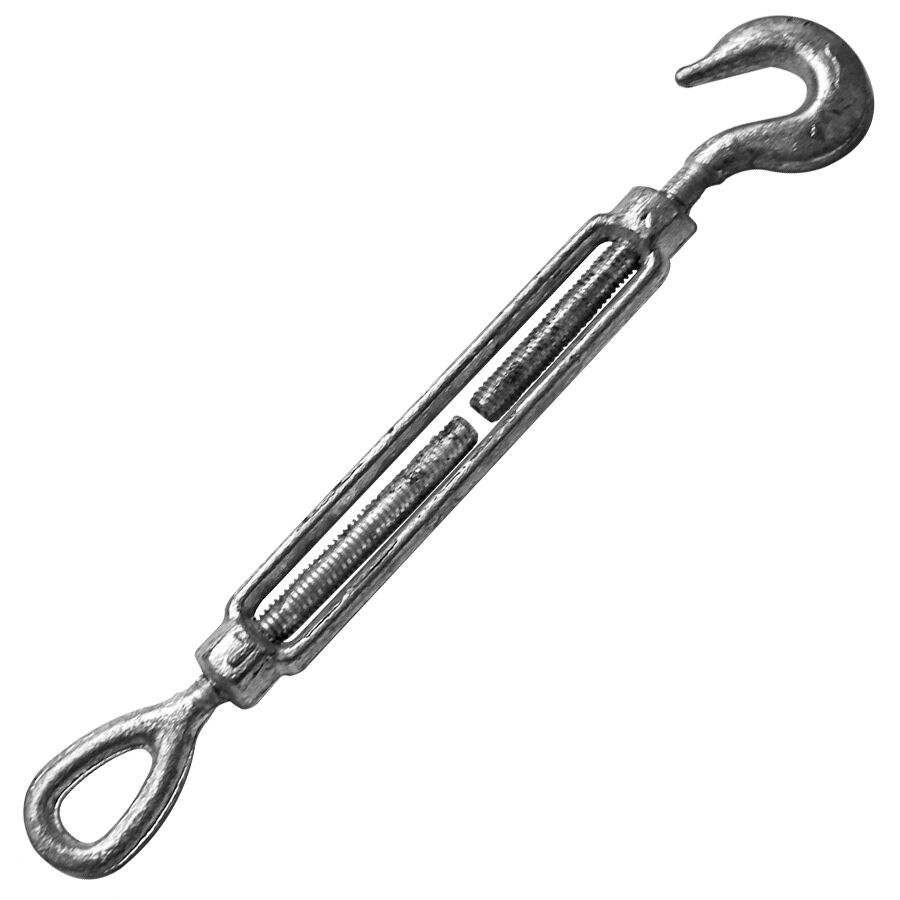

Eye-Hook Galvanized Turnbuckles
| STOCK NUMBERS | SIZE | WORKING LOAD LIMIT | APPROXIMATE WEIGHT/PIECE | DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | ||||
| TBEH250X4 | 1/4″ X 4″ | 400 lbs. | .31 lbs. | .25″ | .44″ | 1.67″ | 1.27″ | 11.66″ | 7.66″ | 12.29″ | 8.29″ | .81″ | .34″ | 1.76″ | 4.07″ |
| TBEH312X450 | 5/16″ X 4 1/2″ | 700 lbs. | .50 lbs. | .31″ | .50″ | 2.00″ | 1.50″ | 13.50″ | 9.00″ | 14.28″ | 9.78″ | .95″ | .44″ | 2.20″ | 4.58″ |
| TBEH375X6 | 3/8″ X 6″ | 1,000 lbs. | .79 lbs. | .38″ | .56″ | 2.28″ | 1.76″ | 17.09″ | 11.09″ | 18.04″ | 12.04″ | 1.13″ | .53″ | 2.48″ | 6.10″ |
| TBEH500X6 | 1/2″ X 6″ | 1,500 lbs. | 1.80 lbs. | .50″ | .65″ | 3.53″ | 2.28″ | 19.57″ | 13.57″ | 20.79″ | 14.79″ | 1.41″ | .71″ | 3.56″ | 6.03″ |
| TBEH500X9 | 1/2″ X 9″ | 1,500 lbs. | 2.35 lbs. | .50″ | .65″ | 3.53″ | 2.28″ | 25.69″ | 16.64″ | 26.94″ | 17.94″ | 1.41″ | .71″ | 3.56″ | 9.18″ |
| TBEH500X12 | 1/2″ X 12″ | 1,500 lbs. | 2.70 lbs. | .50″ | .65″ | 3.51″ | 2.28″ | 31.86″ | 19.86″ | 33.08″ | 21.08″ | 1.41″ | .71″ | 3.54″ | 12.36″ |
| TBEH625X6 | 5/8″ X 6″ | 2,250 lbs. | 2.98 lbs. | .63″ | .90″ | 4.24″ | 2.81″ | 21.11″ | 15.11″ | 22.61″ | 16.61″ | 1.90″ | .88″ | 4.35″ | 6.03″ |
| TBEH625X9 | 5/8″ X 9″ | 2,250 lbs. | 3.80 lbs. | .63″ | .90″ | 4.24″ | 2.81″ | 27.31″ | 18.21″ | 28.81″ | 19.70″ | 1.90″ | 88″ | 4.35″ | 9.18″ |
| TBEH625X12 | 5/8″ X 12″ | 2,250 lbs. | 4.35 lbs. | .63″ | .90″ | 4.23″ | 2.81″ | 33.45″ | 21.45″ | 34.95″ | 22.95″ | 1.80″ | .88″ | 4.34″ | 12.39″ |
| TBEH750X6 | 3/4″ X 6″ | 3,000 lbs. | 4.21 lbs. | .75″ | .98″ | .5.07″ | 3.33″ | 22.61″ | 16.61″ | 24.45″ | 18.45″ | 2.09″ | 1.00″ | 5.12″ | 6.13″ |
| TBEH750X9 | 3/4″ X 9″ | 3,000 lbs. | 5.58 lbs. | .75″ | .98″ | .5.07″ | 3.33″ | 28.81″ | 19.71″ | 30.65″ | 21.63″ | 2.09″ | 1.00″ | 5.12″ | 9.33″ |
| TBEH750X12 | 3/4″ X 12″ | 3,000 lbs. | 6.52 lbs. | .75″ | .98″ | 5.04″ | 3.33″ | 35.01″ | 23.01″ | 36.85″ | 24.85″ | 2.09″ | 1.00″ | 5.09″ | 12.59″ |
| TBEH750X18 | 3/4″ X 18″ | 3,000 lbs. | 8.24 lbs. | .75″ | .98″ | 5.07″ | 3.33″ | 47.01″ | 29.01″ | 48.85″ | 30.85″ | 2.09″ | 1.00″ | 5.12″ | 18.53″ |
| TBEH875X12 | 7/8″ X 12″ | 4,000 lbs. | 9.34 lbs. | .88″ | 1.13″ | 5.82″ | 3.78″ | 36.11″ | 24.11″ | 38.23″ | 26.23″ | 2.38″ | 1.25″ | 5.79″ | 12.16″ |
| TBEH100X12 | 1″ X 12″ | 5,000 lbs. | 13.9 lbs. | 1.00″ | 1.25″ | 6.56″ | 4.25″ | 37.65″ | 25.56″ | 40.06″ | 28.06″ | 3.00″ | 1.43″ | 6.50″ | 12.18″ |
| TBEH100X18 | 1″ X 18″ | 5,000 lbs. | 15.85 lbs. | 1.00″ | 1.25″ | 6.56″ | 4.25″ | 49.75″ | 31.65″ | 52.11″ | 34.11″ | 3.00″ | 1.43″ | 6.50″ | 18.28″ |
| STOCK NUMBERS | DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | |
| TBEH250X4 | .25″ | .44″ | 1.67″ | 1.27″ | 11.66″ | 7.66″ | 12.29″ | 8.29″ | .81″ | .34″ | 1.76″ | 4.07″ |
| TBEH312X450 | .31″ | .50″ | 2.00″ | 1.50″ | 13.50″ | 9.00″ | 14.28″ | 9.78″ | .95″ | .44″ | 2.20″ | 4.58″ |
| TBEH375X6 | .38″ | .56″ | 2.28″ | 1.76″ | 17.09″ | 11.09″ | 18.04″ | 12.04″ | 1.13″ | .53″ | 2.48″ | 6.10″ |
| TBEH500X6 | .50″ | .65″ | 3.53″ | 2.28″ | 19.57″ | 13.57″ | 20.79″ | 14.79″ | 1.41″ | .71″ | 3.56″ | 6.03″ |
| TBEH500X9 | .50″ | .65″ | 3.53″ | 2.28″ | 25.69″ | 16.64″ | 26.94″ | 17.94″ | 1.41″ | .71″ | 3.56″ | 9.18″ |
| TBEH500X12 | .50″ | .65″ | 3.51″ | 2.28″ | 31.86″ | 19.86″ | 33.08″ | 21.08″ | 1.41″ | .71″ | 3.54″ | 12.36″ |
| TBEH625X6 | .63″ | .90″ | 4.24″ | 2.81″ | 21.11″ | 15.11″ | 22.61″ | 16.61″ | 1.90″ | .88″ | 4.35″ | 6.03″ |
| TBEH625X9 | .63″ | .90″ | 4.24″ | 2.81″ | 27.31″ | 18.21″ | 28.81″ | 19.70″ | 1.90″ | 88″ | 4.35″ | 9.18″ |
| TBEH625X12 | .63″ | .90″ | 4.23″ | 2.81″ | 33.45″ | 21.45″ | 34.95″ | 22.95″ | 1.80″ | .88″ | 4.34″ | 12.39″ |
| TBEH750X6 | .75″ | .98″ | .5.07″ | 3.33″ | 22.61″ | 16.61″ | 24.45″ | 18.45″ | 2.09″ | 1.00″ | 5.12″ | 6.13″ |
| TBEH750X9 | .75″ | .98″ | .5.07″ | 3.33″ | 28.81″ | 19.71″ | 30.65″ | 21.63″ | 2.09″ | 1.00″ | 5.12″ | 9.33″ |
| TBEH750X12 | .75″ | .98″ | 5.04″ | 3.33″ | 35.01″ | 23.01″ | 36.85″ | 24.85″ | 2.09″ | 1.00″ | 5.09″ | 12.59″ |
| TBEH750X18 | .75″ | .98″ | 5.07″ | 3.33″ | 47.01″ | 29.01″ | 48.85″ | 30.85″ | 2.09″ | 1.00″ | 5.12″ | 18.53″ |
| TBEH875X12 | .88″ | 1.13″ | 5.82″ | 3.78″ | 36.11″ | 24.11″ | 38.23″ | 26.23″ | 2.38″ | 1.25″ | 5.79″ | 12.16″ |
| TBEH100X12 | 1.00″ | 1.25″ | 6.56″ | 4.25″ | 37.65″ | 25.56″ | 40.06″ | 28.06″ | 3.00″ | 1.43″ | 6.50″ | 12.18″ |
| TBEH100X18 | 1.00″ | 1.25″ | 6.56″ | 4.25″ | 49.75″ | 31.65″ | 52.11″ | 34.11″ | 3.00″ | 1.43″ | 6.50″ | 18.28″ |
| EYE & EYE | EYE & HOOK | HOOK & HOOK | EYE & JAW | JAW & JAW | STUB END |
|---|---|---|---|---|---|
| TBEE (Size) | TBEH (Size) | TBHH (Size) | TBEJ (Size) | TBJJ (Size) | TBSS (Size) |
