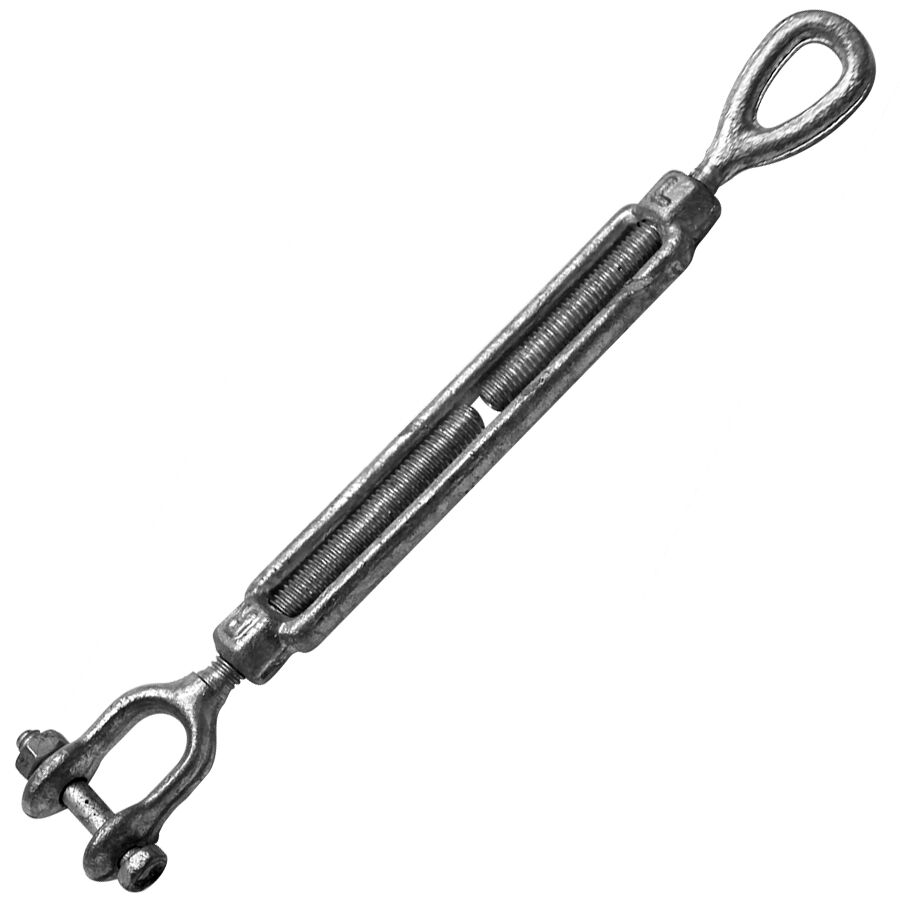

Eye-Jaw Galvanized Turnbuckles
| STOCK NUMBERS | SIZE | WORKING LOAD LIMIT | APPROXIMATE WEIGHT/PIECE | DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | ||||
| TBEJ250X4 | 1/4″ X 4″ | 500 lbs. | .33 lbs. | .25″ | .45″ | 1.66″ | .64″ | 11.57″ | 7.57″ | 12.38″ | 8.28″ | .81″ | .34″ | 1.76″ | 4.07″ |
| TBEJ312X450 | 5/16″ X 4 1/2″ | 800 lbs. | .52 lbs. | .31″ | .50″ | 2.02″ | .87″ | 13.50″ | 9.00″ | 14.30″ | 9.80″ | .95″ | .44″ | 2.20″ | 4.58″ |
| TBEJ375X6 | 3/8″ X 6″ | 1,200 lbs. | .80 lbs. | .38″ | .53″ | 2.11″ | .85″ | 16.91″ | 10.91″ | 17.87″ | 11.87″ | 1.13″ | .53″ | 2.48″ | 6.10″ |
| TBEJ500X6 | 1/2″ X 6″ | 2,200 lbs. | 1.77 lbs. | .50″ | .64″ | 3.22″ | 1.07″ | 19.30″ | 13.30″ | 20.48″ | 14.48″ | 1.41″ | .71″ | 3.56″ | 6.03″ |
| TBEJ500X9 | 1/2″ X 9″ | 2,200 lbs. | 2.25 lbs. | .50″ | .64″ | 3.20″ | 1.07″ | 25.59″ | 16.59″ | 26.77″ | 17.77″ | 1.41″ | .71″ | 3.54″ | 9.36″ |
| TBEJ500X12 | 1/2″ X 12″ | 2,200 lbs. | 2.67 lbs. | .50″ | .64″ | 3.20″ | 1.07″ | 31.59″ | 19.59″ | 32.77″ | 20.77″ | 1.41″ | .71″ | 3.54″ | 12.36″ |
| TBEJ625X6 | 5/8″ X 6″ | 3,500 lbs. | 2.98 lbs. | .63″ | .79″ | 3.90″ | 1.32″ | 20.73″ | 14.73″ | 22.27″ | 16.27″ | 1.80″ | .88″ | 4.35″ | 6.03″ |
| TBEJ625X9 | 5/8″ X 9″ | 3,500 lbs. | 3.72 lbs. | .63″ | .79″ | 3.89″ | 1.32″ | 27.07″ | 18.07″ | 28.61″ | 19.61″ | 1.80″ | .88″ | 4.34″ | 9.39″ |
| TBEJ625X12 | 5/8″ X 12″ | 3,500 lbs. | 4.35 lbs. | .63″ | .79″ | 3.89″ | 1.32″ | 33.07″ | 21.07″ | 34.61″ | 22.61″ | 1.80″ | .88″ | 4.34″ | 12.39″ |
| TBEJ750X6 | 3/4″ X 6″ | 5,200 lbs. | 4.51 lbs. | .75″ | .97″ | 4.71″ | 1.52″ | 22.17″ | 16.17″ | 24.09″ | 18.09″ | 2.09″ | 1.00″ | 5.12″ | 6.13″ |
| TBEJ750X9 | 3/4″ X 9″ | 5,200 lbs. | 5.56 lbs. | .75″ | .97″ | 4.68″ | 1.52″ | 28.57″ | 19.57″ | 30.49″ | 21.49″ | 2.09″ | 1.00″ | 5.09″ | 9.59″ |
| TBEJ750X12 | 3/4″ X 12″ | 5,200 lbs. | 6.42 lbs. | .75″ | .97″ | 4.68″ | 1.52″ | 34.57″ | 22.57″ | 36.49″ | 24.49″ | 2.09″ | 1.00″ | 5.09″ | 12.59″ |
| TBEJ750X18 | 3/4″ X 18″ | 5,200 lbs. | 8.14 lbs | .75″ | .97″ | 4.71″ | 1.52″ | 46.57″ | 28.57″ | 48.49″ | 30.49″ | 2.09″ | 1.00″ | 5.12″ | 19.53″ |
| TBEJ875X12 | 7/8″ X 12″ | 7,200 lbs. | 9.10 lbs. | .88″ | 1.16″ | 5.50″ | 1.77″ | 35.68″ | 23.68″ | 37.91″ | 25.91″ | 2.38″ | 1.25″ | 5.79″ | 12.16″ |
| TBEJ875X18 | 7/8″ X 18″ | 7,200 lbs. | 11.6 lbs. | .88″ | 1.16″ | 5.50″ | 1.77″ | 48.15″ | 30.15″ | 50.38″ | 32.38″ | 2.38″ | 1.25″ | 5.79″ | 12.16″ |
| TBEJ100X12 | 1″ X 12″ | 10,000 lbs. | 13.4 lbs. | 1.00″ | 1.34″ | 6.09″ | 2.05″ | 37.03″ | 25.03″ | 39.59″ | 27.59″ | 3.00″ | 1.43″ | 6.50″ | 12.18″ |
| TBEJ100X18 | 1″ X 18″ | 10,000 lbs. | 16.7 lbs. | 1.00″ | 1.34″ | 6.09″ | 2.05″ | 49.03″ | 31.03″ | 51.59″ | 33.59″ | 3.00″ | 1.43″ | 6.50″ | 18.18″ |
| TBEJ100X24 | 1″ X 24″ | 10,000 lbs. | 20.6 lbs. | 1.00″ | 1.34″ | 6.09″ | 2.05″ | 61.03″ | 37.03″ | 64.19″ | 40.19″ | 3.00″ | 1.43″ | 6.47″ | 24.84″ |
| TBEJ1250X12 | 1 1/4″ X 12″ | 15,200 lbs. | 20.9 lbs. | 1.25″ | 1.84″ | 8.09″ | 2.82″ | 40.76″ | 28.76″ | 43.98″ | 31.98″ | 3.59″ | 1.82″ | 8.49″ | 12.06″ |
| TBEJ1250X18 | 1 1/4″ X 18″ | 15,200 lbs. | 24.8 lbs. | 1.25″ | 1.84″ | 8.09″ | 2.82″ | 52.76″ | 34.76″ | 55.98″ | 37.98″ | 3.59″ | 1.82″ | 8.49″ | 18.06″ |
| TBEJ1250X24 | 1 1/4″ X 24″ | 15,200 lbs. | 28.8 lbs. | 1.25″ | 1.84″ | 8.09″ | 2.82″ | 65.32″ | 41.32″ | 68.54″ | 44.54″ | 3.59″ | 1.82″ | 8.49″ | 24.62″ |
| TBEJ1500X18 | 1 1/2″ X 18″ | 21,400 lbs. | 36.0 lbs. | 1.50″ | 2.06″ | 8.93″ | 2.81″ | 54.50″ | 36.50″ | 40.21″ | 58.21″ | 4.09″ | 2.12″ | 9.46″ | 18.32″ |
| TBEJ1500X24 | 1 1/2″ X 24″ | 21,400 lbs. | 41.5 lbs. | 1.50″ | 2.06″ | 8.93″ | 2.81″ | 67.12″ | 43.12″ | 70.86″ | 46.86″ | 4.09″ | 2.12″ | 9.46″ | 24.94″ |
| STOCK NUMBERS | DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | |
| TBEJ250X4 | .25″ | .45″ | 1.66″ | .64″ | 11.57″ | 7.57″ | 12.38″ | 8.28″ | .81″ | .34″ | 1.76″ | 4.07″ |
| TBEJ312X450 | .31″ | .50″ | 2.02″ | .87″ | 13.50″ | 9.00″ | 14.30″ | 9.80″ | .95″ | .44″ | 2.20″ | 4.58″ |
| TBEJ375X6 | .38″ | .53″ | 2.11″ | .85″ | 16.91″ | 10.91″ | 17.87″ | 11.87″ | 1.13″ | .53″ | 2.48″ | 6.10″ |
| TBEJ500X6 | .50″ | .64″ | 3.22″ | 1.07″ | 19.30″ | 13.30″ | 20.48″ | 14.48″ | 1.41″ | .71″ | 3.56″ | 6.03″ |
| TBEJ500X9 | .50″ | .64″ | 3.20″ | 1.07″ | 25.59″ | 16.59″ | 26.77″ | 17.77″ | 1.41″ | .71″ | 3.54″ | 9.36″ |
| TBEJ500X12 | .50″ | .64″ | 3.20″ | 1.07″ | 31.59″ | 19.59″ | 32.77″ | 20.77″ | 1.41″ | .71″ | 3.54″ | 12.36″ |
| TBEJ625X6 | .63″ | .79″ | 3.90″ | 1.32″ | 20.73″ | 14.73″ | 22.27″ | 16.27″ | 1.80″ | .88″ | 4.35″ | 6.03″ |
| TBEJ625X9 | .63″ | .79″ | 3.89″ | 1.32″ | 27.07″ | 18.07″ | 28.61″ | 19.61″ | 1.80″ | .88″ | 4.34″ | 9.39″ |
| TBEJ625X12 | .63″ | .79″ | 3.89″ | 1.32″ | 33.07″ | 21.07″ | 34.61″ | 22.61″ | 1.80″ | .88″ | 4.34″ | 12.39″ |
| TBEJ750X6 | .75″ | .97″ | 4.71″ | 1.52″ | 22.17″ | 16.17″ | 24.09″ | 18.09″ | 2.09″ | 1.00″ | 5.12″ | 6.13″ |
| TBEJ750X9 | .75″ | .97″ | 4.68″ | 1.52″ | 28.57″ | 19.57″ | 30.49″ | 21.49″ | 2.09″ | 1.00″ | 5.09″ | 9.59″ |
| TBEJ750X12 | .75″ | .97″ | 4.68″ | 1.52″ | 34.57″ | 22.57″ | 36.49″ | 24.49″ | 2.09″ | 1.00″ | 5.09″ | 12.59″ |
| TBEJ750X18 | .75″ | .97″ | 4.71″ | 1.52″ | 46.57″ | 28.57″ | 48.49″ | 30.49″ | 2.09″ | 1.00″ | 5.12″ | 19.53″ |
| TBEJ875X12 | .88″ | 1.16″ | 5.50″ | 1.77″ | 35.68″ | 23.68″ | 37.91″ | 25.91″ | 2.38″ | 1.25″ | 5.79″ | 12.16″ |
| TBEJ875X18 | .88″ | 1.16″ | 5.50″ | 1.77″ | 48.15″ | 30.15″ | 50.38″ | 32.38″ | 2.38″ | 1.25″ | 5.79″ | 12.16″ |
| TBEJ100X12 | 1.00″ | 1.34″ | 6.09″ | 2.05″ | 37.03″ | 25.03″ | 39.59″ | 27.59″ | 3.00″ | 1.43″ | 6.50″ | 12.18″ |
| TBEJ100X18 | 1.00″ | 1.34″ | 6.09″ | 2.05″ | 49.03″ | 31.03″ | 51.59″ | 33.59″ | 3.00″ | 1.43″ | 6.50″ | 18.18″ |
| TBEJ100X24 | 1.00″ | 1.34″ | 6.09″ | 2.05″ | 61.03″ | 37.03″ | 64.19″ | 40.19″ | 3.00″ | 1.43″ | 6.47″ | 24.84″ |
| TBEJ1250X12 | 1.25″ | 1.84″ | 8.09″ | 2.82″ | 40.76″ | 28.76″ | 43.98″ | 31.98″ | 3.59″ | 1.82″ | 8.49″ | 12.06″ |
| TBEJ1250X18 | 1.25″ | 1.84″ | 8.09″ | 2.82″ | 52.76″ | 34.76″ | 55.98″ | 37.98″ | 3.59″ | 1.82″ | 8.49″ | 18.06″ |
| TBEJ1250X24 | 1.25″ | 1.84″ | 8.09″ | 2.82″ | 65.32″ | 41.32″ | 68.54″ | 44.54″ | 3.59″ | 1.82″ | 8.49″ | 24.62″ |
| TBEJ1500X18 | 1.50″ | 2.06″ | 8.93″ | 2.81″ | 54.50″ | 36.50″ | 40.21″ | 58.21″ | 4.09″ | 2.12″ | 9.46″ | 18.32″ |
| TBEJ1500X24 | 1.50″ | 2.06″ | 8.93″ | 2.81″ | 67.12″ | 43.12″ | 70.86″ | 46.86″ | 4.09″ | 2.12″ | 9.46″ | 24.94″ |
| EYE & EYE | EYE & HOOK | HOOK & HOOK | EYE & JAW | JAW & JAW | STUB END |
|---|---|---|---|---|---|
| TBEE (Size) | TBEH (Size) | TBHH (Size) | TBEJ (Size) | TBJJ (Size) | TBSS (Size) |
