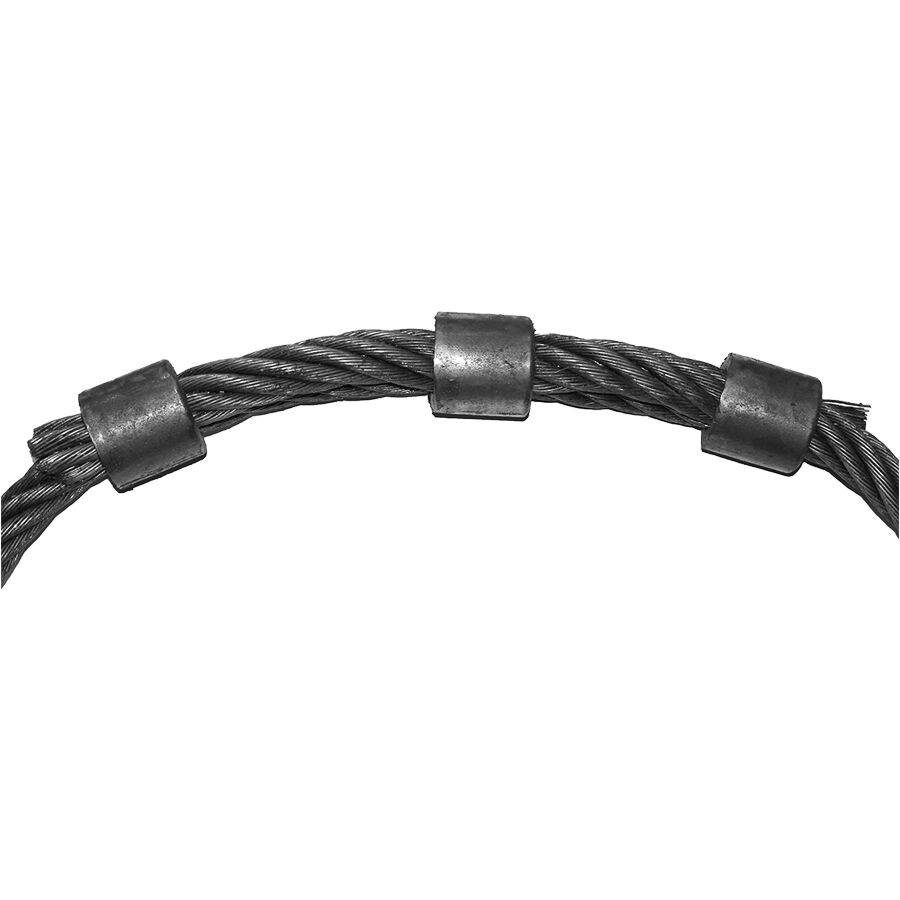

Grommets
Cable Laid – Vertical, Choker, or Basket Hitches. Rated capacities shown apply only to 6X19 and 6X36 classification EIPS wire rope.
| RATED CAPACITY IN TONS (2,000 LBS.) | ||||||
|---|---|---|---|---|---|---|
| GROMMET BODY DIAMETER |
VERTICAL |
CHOKER |
VERTICAL BASKET |
60˚ |
45˚ |
30˚ |
|
COMPONENT ROPE 6X36 BRIGHT IWRC EIPS RRL |
||||||
| 3/4″ | 6.2 | 4.1 | 12 | 11 | 8.8 | 6.2 |
| 7/8” | 8.3 | 5.4 | 17 | 14 | 12 | 8.3 |
| 1″ | 11 | 6.8 | 21 | 18 | 15 | 11 |
| 1-1/8” | 13 | 8.4 | 26 | 22 | 18 | 13 |
| 1-1/4″ | 16 | 10 | 31 | 27 | 22 | 16 |
