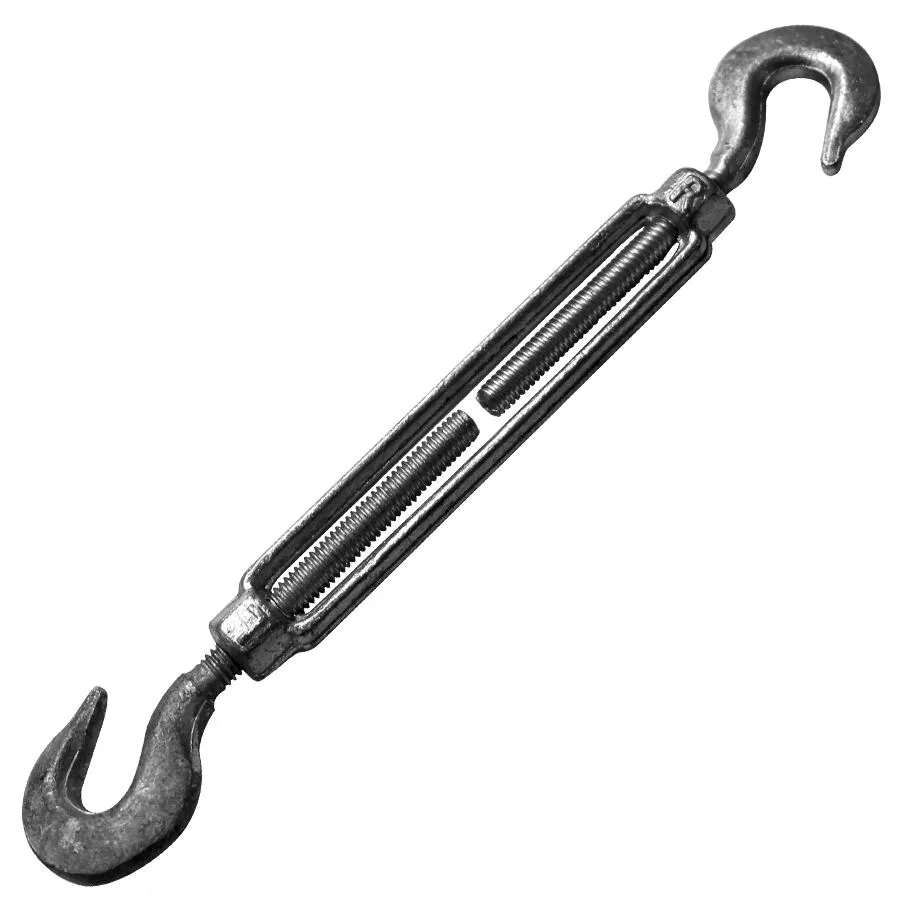

Hook-Hook Galvanized Turnbuckles
| STOCK NUMBERS | SIZE | WORKING LOAD LIMIT | APPROXIMATE WEIGHT/PIECE | DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | ||||
| TBHH250X4 | 1/4″ X 4″ | 400 lbs. | .33 lbs. | .25″ | .44″ | 1.67″ | 1.27″ | 9.79″ | 7.38″ | 12.20″ | 8.20″ | 4.07″ |
| TBHH312X450 | 5/16″ X 4 1/2″ | 700 lbs. | .52 lbs. | .31″ | .50″ | 2.00″ | 1.50″ | 11.58″ | 8.58″ | 14.08″ | 9.58″ | 4.58″ |
| TBHH375X6 | 3/8″ X 6″ | 1,000 lbs. | .83 lbs. | .38″ | .56″ | 2.28″ | 1.77″ | 15.23″ | 10.62″ | 17.84″ | 11.84″ | 6.10″ |
| TBHH500X6 | 1/2″ X 6″ | 1,500 lbs. | 1.88 lbs. | .50″ | .65″ | 3.53″ | 2.28″ | 17.98″ | 13.20″ | 20.76″ | 14.76″ | 6.03″ |
| TBHH500X9 | 1/2″ X 9″ | 1,500 lbs. | 2.30 lbs. | .50″ | .65″ | 3.53″ | 2.28″ | 24.15″ | 15.90″ | 27.35″ | 18.12″ | 9.18″ |
| TBHH500X12 | 1/2″ X 12″ | 1,500 lbs. | 2.77 lbs. | .50″ | .65″ | 3.51″ | 2.28″ | 30.27″ | 19.49″ | 33.05″ | 21.05″ | 12.36″ |
| TBHH625X6 | 5/8″ X 6″ | 2,250 lbs. | 3.21 lbs. | .63″ | .90″ | 4.24″ | 2.81″ | 19.50″ | 14.50″ | 22.50″ | 16.50″ | 6.03″ |
| TBHH625X9 | 5/8″ X 9″ | 2,250 lbs. | 3.80 lbs. | .63″ | .90″ | 4.24″ | 2.81″ | 25.67″ | 17.67″ | 28.70″ | 19.70″ | 9.18″ |
| TBHH625X12 | 5/8″ X 12″ | 2,250 lbs. | 4.58 lbs. | .63″ | .90″ | 4.23″ | 2.81″ | 31.84″ | 20.84″ | 34.84″ | 22.84″ | 12.39″ |
| TBHH750X6 | 3/4″ X 6″ | 3,000 lbs. | 4.20 lbs. | .75″ | .98″ | 5.07″ | 3.33″ | 21.19″ | 15.98″ | 24.40″ | 18.40″ | 6.13″ |
| TBHH750X9 | 3/4″ X 9″ | 3,000 lbs. | 5.58 lbs. | .75″ | .98″ | 5.07″ | 3.33″ | 27.40″ | 19.18″ | 30.60″ | 21.60″ | 9.33″ |
| TBHH750X12 | 3/4″ X 12″ | 3,000 lbs. | 6.92 lbs. | .75″ | .98″ | 5.04″ | 3.33″ | 33.59″ | 22.38″ | 36.80″ | 24.80″ | 12.59″ |
| TBHH750X18 | 3/4″ X 18″ | 3,000 lbs. | 8.65 lbs. | .75″ | .98″ | 5.07″ | 3.33″ | 45.59″ | 28.38″ | 48.80″ | 30.80″ | 18.53″ |
| TBHH875X12 | 7/8″ X 12″ | 4,000 lbs. | 9.85 lbs. | .88″ | 1.13″ | 5.82″ | 3.78″ | 34.89″ | 23.52″ | 38.26″ | 26.26″ | 12.16″ |
| TBHH100X12 | 1″ X 12″ | 5,000 lbs. | 14.8 lbs. | 1.00″ | 1.25 | 6.56″ | 4.25″ | 36.59″ | 25.06″ | 40.12″ | 28.12″ | 12.18″ |
| STOCK NUMBERS | DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |
| TBHH250X4 | .25″ | .44″ | 1.67″ | 1.27″ | 9.79″ | 7.38″ | 12.20″ | 8.20″ | 4.07″ |
| TBHH312X450 | .31″ | .50″ | 2.00″ | 1.50″ | 11.58″ | 8.58″ | 14.08″ | 9.58″ | 4.58″ |
| TBHH375X6 | .38″ | .56″ | 2.28″ | 1.77″ | 15.23″ | 10.62″ | 17.84″ | 11.84″ | 6.10″ |
| TBHH500X6 | .50″ | .65″ | 3.53″ | 2.28″ | 17.98″ | 13.20″ | 20.76″ | 14.76″ | 6.03″ |
| TBHH500X9 | .50″ | .65″ | 3.53″ | 2.28″ | 24.15″ | 15.90″ | 27.35″ | 18.12″ | 9.18″ |
| TBHH500X12 | .50″ | .65″ | 3.51″ | 2.28″ | 30.27″ | 19.49″ | 33.05″ | 21.05″ | 12.36″ |
| TBHH625X6 | .63″ | .90″ | 4.24″ | 2.81″ | 19.50″ | 14.50″ | 22.50″ | 16.50″ | 6.03″ |
| TBHH625X9 | .63″ | .90″ | 4.24″ | 2.81″ | 25.67″ | 17.67″ | 28.70″ | 19.70″ | 9.18″ |
| TBHH625X12 | .63″ | .90″ | 4.23″ | 2.81″ | 31.84″ | 20.84″ | 34.84″ | 22.84″ | 12.39″ |
| TBHH750X6 | .75″ | .98″ | 5.07″ | 3.33″ | 21.19″ | 15.98″ | 24.40″ | 18.40″ | 6.13″ |
| TBHH750X9 | .75″ | .98″ | 5.07″ | 3.33″ | 27.40″ | 19.18″ | 30.60″ | 21.60″ | 9.33″ |
| TBHH750X12 | .75″ | .98″ | 5.04″ | 3.33″ | 33.59″ | 22.38″ | 36.80″ | 24.80″ | 12.59″ |
| TBHH750X18 | .75″ | .98″ | 5.07″ | 3.33″ | 45.59″ | 28.38″ | 48.80″ | 30.80″ | 18.53″ |
| TBHH875X12 | .88″ | 1.13″ | 5.82″ | 3.78″ | 34.89″ | 23.52″ | 38.26″ | 26.26″ | 12.16″ |
| TBHH100X12 | 1.00″ | 1.25 | 6.56″ | 4.25″ | 36.59″ | 25.06″ | 40.12″ | 28.12″ | 12.18″ |
| EYE & EYE | EYE & HOOK | HOOK & HOOK | EYE & JAW | JAW & JAW | STUB END |
|---|---|---|---|---|---|
| TBEE (Size) | TBEH (Size) | TBHH (Size) | TBEJ (Size) | TBJJ (Size) | TBSS (Size) |
