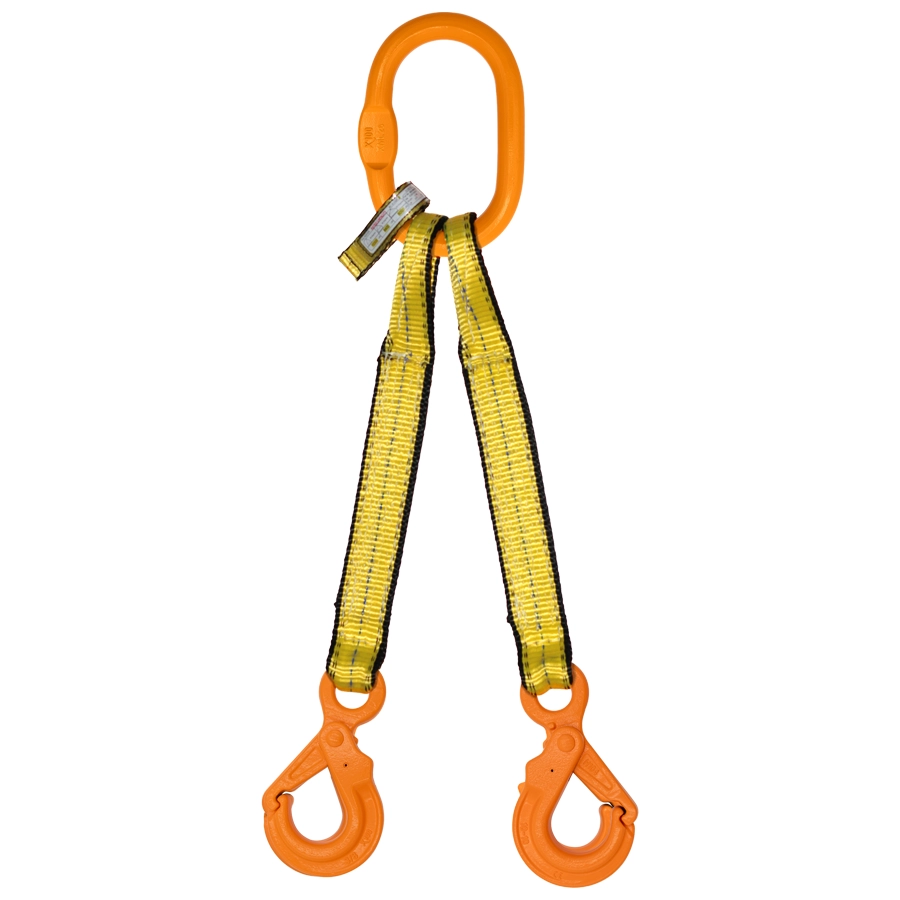

Nylon & Polyester Bridle Slings
Available in:
- Single
- Double
- Triple
- Quad
| STOCK NUMBER | WEB WIDTH | WEB PLY | NUMBER OF LEGS | RATED CAPACITY (lbs.) | GRADE 100 OBLONG LINK | EYE HOIST HOOK SIZE (TONS) | GRADE 100 EYE SELF LOCKING HOOK SIZE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| VERTICAL | 60* | 45* | 30* | |||||||
| EE1-901 | 1″ | 1 | Single | 1,600 | – | – | – | 1/2″ | 1 | 9/32″ |
| 1″ | 1 | Double | – | 2,700 | 2,200 | 1,600 | 1/2″ | 1 | 9/32″ | |
| 1″ | 1 | Triple | – | 4,100 | 3,300 | 2,400 | 3/4″ | 1 | 9/32″ | |
| 1″ | 1 | Quad | – | 5,500 | 4,500 | 3,200 | 1″ | 1 | 9/32″ | |
| EE2-901 | 1″ | 2 | Single | 3,200 | – | – | – | 1/2″ | 2 | 9/32″ |
| 1″ | 2 | Double | – | 5,400 | 4,400 | 3,200 | 3/4″ | 2 | 9/32″ | |
| 1″ | 2 | Triple | – | 8,200 | 6,700 | 4,800 | 3/4″ | 2 | 9/32″ | |
| 1″ | 2 | Quad | – | 10,500 | 8,400 | 6,000 | 1″ | 2 | 9/32″ | |
| EE1-902 | 2″ | 1 | Single | 3,200 | – | – | – | 1/2″ | 2 | 9/32″ |
| 2″ | 1 | Double | – | 5,400 | 4,400 | 3,200 | 3/4″ | 2 | 9/32″ | |
| 2″ | 1 | Triple | – | 8,200 | 6,700 | 4,800 | 3/4″ | 2 | 9/32″ | |
| 2″ | 1 | Quad | – | 10,500 | 8,400 | 6,000 | 1″ | 2 | 9/32″ | |
| EE2-902 | 2″ | 2 | Single | 6,400 | – | – | – | 3/4″ | 4.5 | 3/8″ |
| 2″ | 2 | Double | – | 11,000 | 8,900 | 6,000 | 1″ | 4.5 | 3/8″ | |
| 2″ | 2 | Triple | – | 16,500 | 13,400 | 9,600 | 1″ | 4.5 | 3/8″ | |
| 2″ | 2 | Quad | – | 21,500 | 17,500 | 12,500 | 1 1/4″ | 4.5 | 3/8″ | |
| EE1-903 | 3″ | 1 | Single | 4,800 | – | – | – | 1/2″ | 3 | 3/8″ |
| 3″ | 1 | Double | – | 8,300 | 6,700 | 4,800 | 3/4″ | 3 | 3/8″ | |
| 3″ | 1 | Triple | – | 12,700 | 10,100 | 7,200 | 7/8″ | 3 | 3/8″ | |
| 3″ | 1 | Quad | – | 16,600 | 13,500 | 9,600 | 1″ | 3 | 3/8″ | |
| EE2-903 | 3″ | 2 | Single | 9,600 | – | – | – | 3/4″ | 7 | 1/2″ |
| 3″ | 2 | Double | – | 16,600 | 13,500 | 9,600 | 1″ | 7 | 1/2″ | |
| 3″ | 2 | Triple | – | 24,900 | 20,300 | 14,400 | 1 1/4″ | 7 | 1/2″ | |
| 3″ | 2 | Quad | – | 33,200 | 27,100 | 19,200 | 1 1/2″ | 7 | 1/2″ | |
| EE1-904 | 4″ | 1 | Single | 6,400 | – | – | – | 5/8″ | 4.5 | 3/8″ |
| 4″ | 1 | Double | – | 11,000 | 9,000 | 6,400 | 7/8″ | 4.5 | 3/8″ | |
| 4″ | 1 | Triple | – | 16,600 | 13,500 | 9,600 | 1″ | 4.5 | 3/8″ | |
| 4″ | 1 | Quad | – | 22,100 | 18,000 | 12,800 | 1″ | 4.5 | 3/8″ | |
| EE2-904 | 4″ | 2 | Single | 12,800 | – | – | – | 7/8″ | 7 | 5/8″ |
| 4″ | 2 | Double | – | 22,100 | 18,000 | 12,800 | 1″ | 7 | 5/8″ | |
| 4″ | 2 | Triple | – | 33,200 | 27,100 | 19,200 | 1 1/2″ | 7 | 5/8″ | |
| 4″ | 2 | Quad | – | 44,300 | 36,200 | 25,600 | 1 1/2″ | 7 | 5/8″ | |
All slings are sewn in house and are customizable.
WARNING: Do NOT exceed rated capacities. Sling tension increases as the angle from horizontal decreases.
Slings should not be used at angles of less than 30°.
