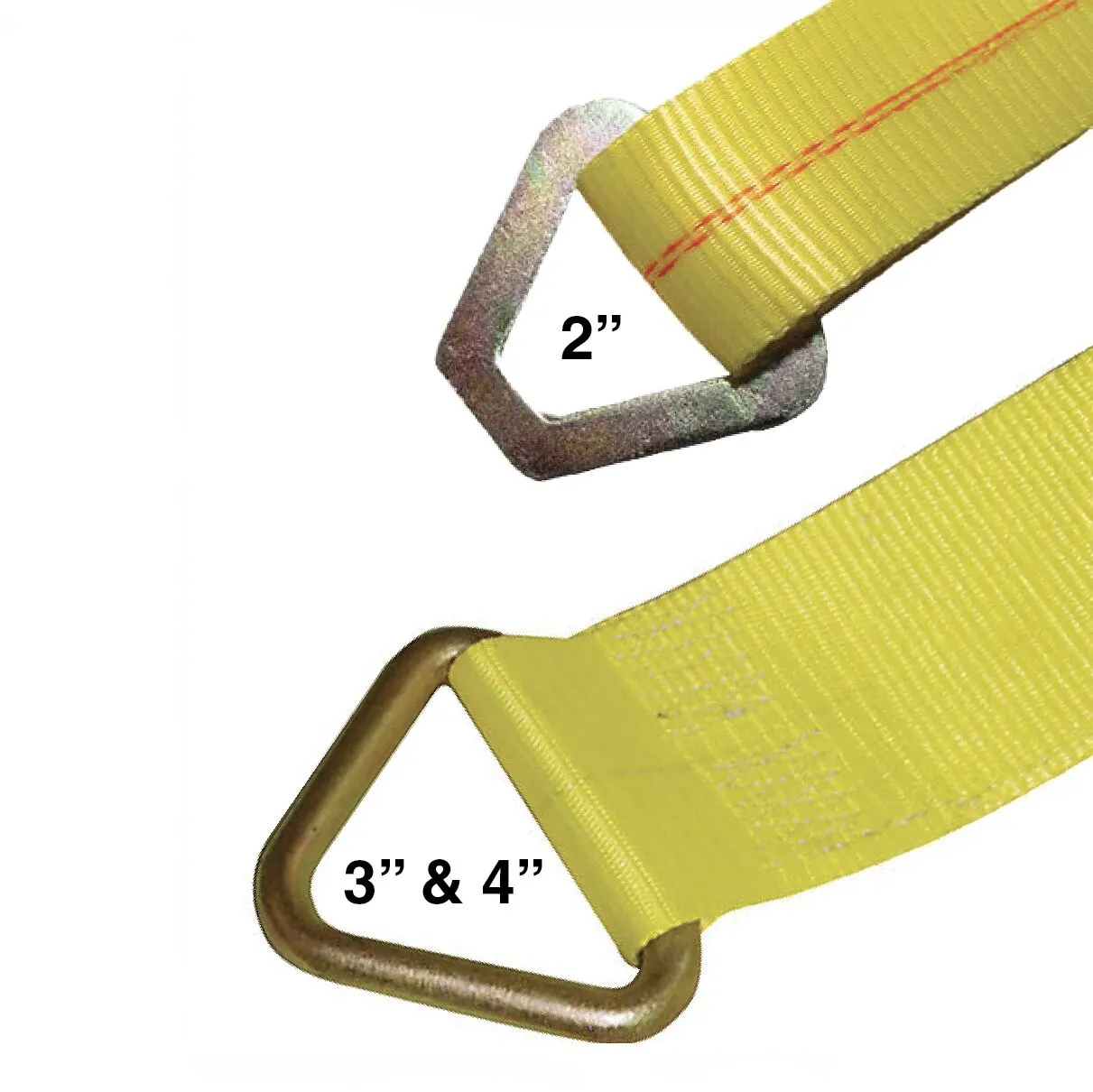

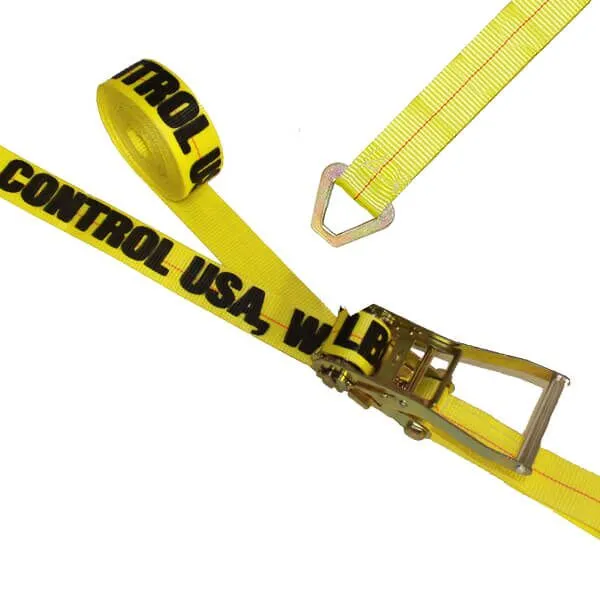

Ratchet Assembly with Delta Ring
• 2″ assembly pictured
Additional colors available. Minimum order may be required.
- Specifications
- Anatomy of a Ratchet Strap Assembly
- Understanding Our Part Numbers
- 3" & 4" Ratchet Assembly
- Tab
- Tab
- Tab
Our straps are designed and manufactured in Sanford, North Carolina; allowing us to fully customize our products to meet the needs of the market(s) served by our dealers. All assemblies are manufactured & clearly tagged to meet or exceed DOT & FMCSA specifications and backed by the best warranty in the industry today.
| STOCK NUMBER | WIDTH | LENGTH | END FITTING | WORKING LOAD LIMIT (lbs.) |
|---|---|---|---|---|
| DR2R27-10 | 2″ | 27′ | 2″ Delta Ring | 3,333 |
| DR2R30-10 | 2″ | 30′ | 2″ Delta Ring | 3,333 |
| DR3R27-15 | 3″ | 27′ | 3″ Delta Ring | 5,000 |
| DR3R30-15 | 3″ | 30′ | 3″ Delta Ring | 5,000 |
| DR4R27-16.2 | 4″ | 27′ | 3″ Delta Ring | 5,400 |
| DR4R30-16.2 | 4″ | 30′ | 3″ Delta Ring | 5,400 |
Ultimately, it is the responsibility of the operator to determine the correct product for their application
A Strap assembly is only as strong as its weakest component (this INCLUDES the point of attachment!)
XXaaRbb – XX(Hardware Type) aa(Capacity) R(Ratchet) bb(Length)
Example – JH10R15 Would be a J Hook, 10,000 LB Ratchet Strap, 15’ Long
