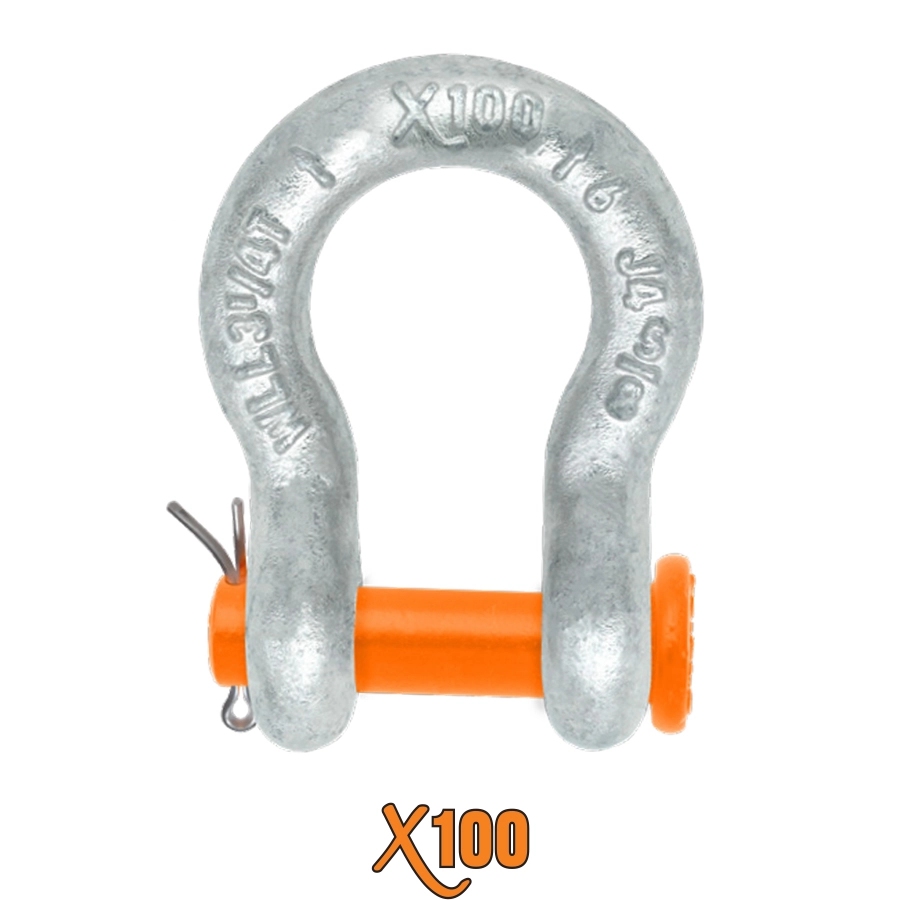

X100® Round Pin Anchor Shackles
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Carbon Steel Bow with Alloy Oversized Pin
- Designed & Suitable for Overhead Lifting
- Drop Forged, Load Rated, Hot Galvanized
- Quenched & Tempered
- Pin is Powder Coated X100 BLAZE ORANGE
- Breaking Strength to Working Load Limit Ratio 6:1
- Embossed Markings: X100 Brand, Size, Working Load Limit, Lot Trace Code
DROP FORGED, LOAD RATED, HOT GALVANIZED
| STOCK NUMBER | SIZE (IN) | PIN DIA (IN) | WORKING LOAD LIMIT (TON) | WEIGHT/PIECE (LBS) |
|---|---|---|---|---|
| XRPA250 | 1/4 | 5/16 | 0.50 | 0.13 |
| XRPA312 | 5/16 | 3/8 | 0.75 | 0.18 |
| XRPA375 | 3/8 | 7/16 | 1.00 | 0.25 |
| XRPA500 | 1/2 | 5/8 | 2.00 | 0.50 |
| XRPA625 | 5/8 | 3/4 | 3.25 | 1.50 |
X100 Round Pin Anchor Shackles are suitable for overhead lifting. According to Federal Specification RR-C-271G, Type IVA, Grade A, Class 1. Meets ASME B30.26 requirements. Ultimate load is 5X the Working Load Limit.

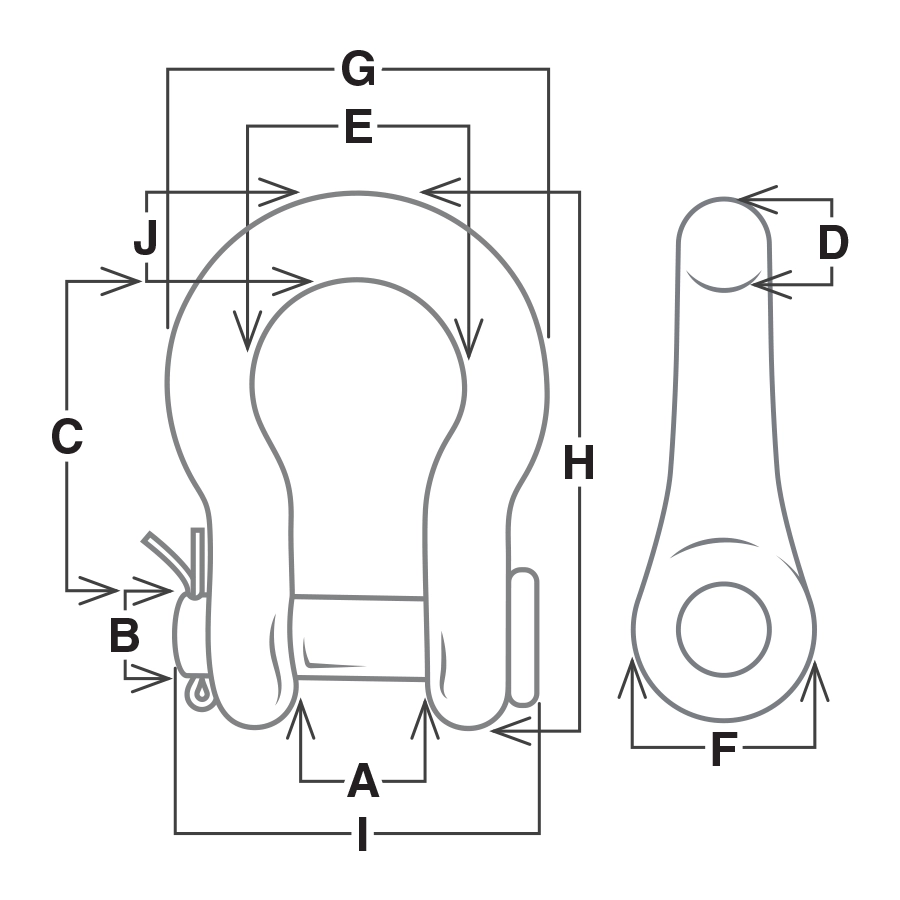

| STOCK NUMBER | DIMENSIONS (IN) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | |
| XRPA250 | .48 | .31 | 1.13 | .26 | .77 | .67 | 1.29 | 1.88 | 1.34 | .26 |
| XRPA312 | .51 | .39 | 1.23 | .32 | .84 | .85 | 1.47 | 2.12 | 1.61 | .31 |
| XRPA375 | .68 | .43 | 1.48 | .39 | 1.01 | .98 | 1.80 | 2.54 | 1.83 | .39 |
| XRPA500 | .81 | .63 | 1.88 | .52 | 1.30 | 1.19 | 2.31 | 3.28 | 2.38 | .50 |
| XRPA625 | 1.09 | .75 | 2.35 | .66 | 1.65 | 1.58 | 2.94 | 4.13 | 3.02 | .64 |
