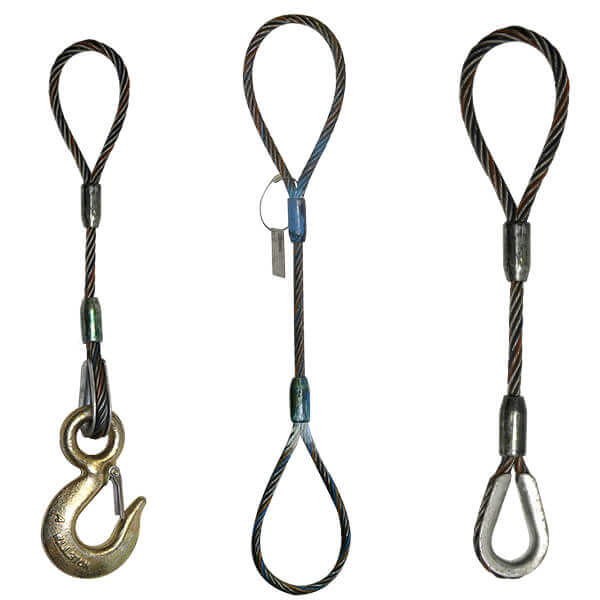

Single-Leg Wire Rope Slings
Single-Leg Wire Rope Slings
| ROPE DIA. |
WORKING LOAD LIMIT (TON) EIPS IWRC W/R |

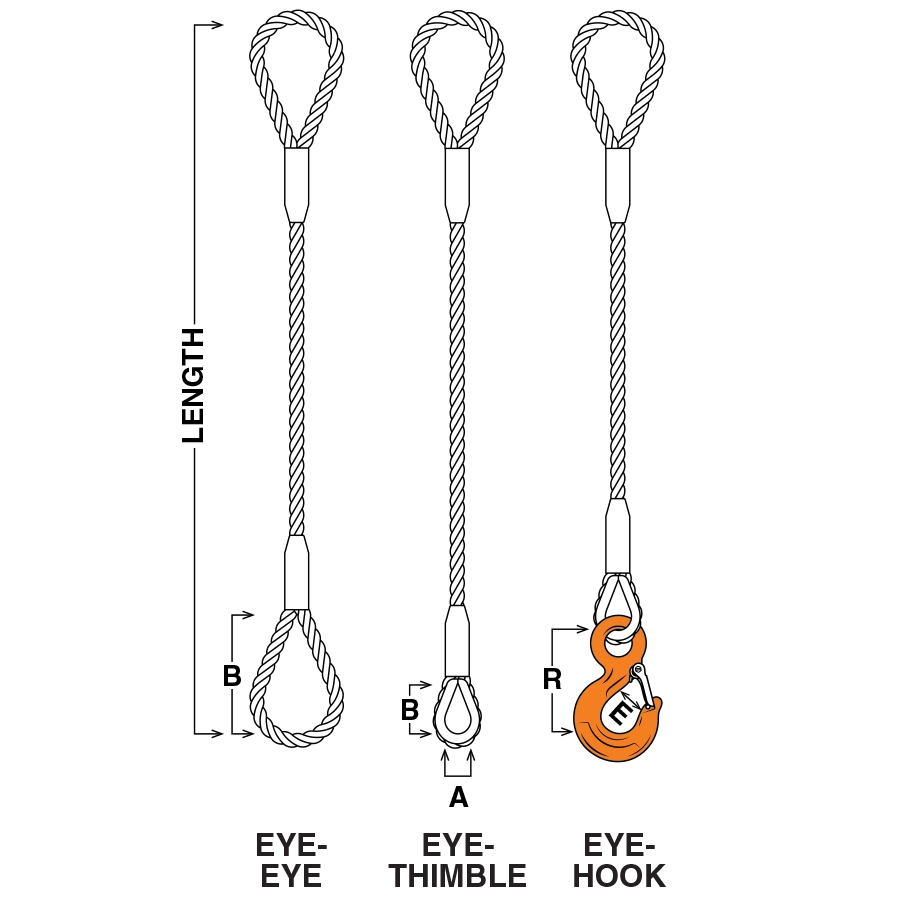

EYE DIMENSIONS | THIMBLE | STANDARD HOOK SELECTION | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VERTICAL | CHOKER | BASKET | A | B | A | B | WLL TON |
E | R | |
| 1/4″ | .65 | .48 | 1.3 | 2″ | 4″ | 7/8″ | 1-5/8″ | 1 | 7/8″ | 3-5/16″ |
| 5/16″ | 1.0 | .74 | 2.0 | 2-1/2″ | 5-1/2″ | 1-1/16″ | 2″ | 1 | 7/8″ | 3-5/16″ |
| 3/8″ | 1.4 | 1.1 | 2.9 | 3″ | 6″ | 1-1/8″ | 2-1/8″ | 1-1/2 | 7/8″ | 3-5/8″ |
| 7/16″ | 1.9 | 1.4 | 3.9 | 3-1/2″ | 7″ | 1-1/4″ | 2-1/4″ | 2 | 1-1/16″ | 4″ |
| 1/2″ | 2.5 | 1.9 | 5.1 | 4″ | 8″ | 1-1/2″ | 2-15/16″ | 3 | 1-1/4″ | 4-1/2″ |
| 9/16″ | 3.2 | 2.4 | 6.4 | 4-1/2″ | 9″ | 1-1/2″ | 2-15/16″ | 5 | 1-1/2″ | 5-3/4″ |
| 5/8″ | 3.9 | 2.9 | 7.8 | 5″ | 10″ | 1-3/4″ | 3-1/4″ | 5 | 1-1/2″ | 5-3/4″ |
| 3/4″ | 5.6 | 4.1 | 11 | 6″ | 12″ | 2″ | 3-3/4″ | 7 | 2″ | 7-1/8″ |
| 7/8″ | 7.6 | 5.6 | 15 | 7″ | 14″ | 2-1/4″ | 4-1/4″ | 11 | 2-1/8″ | 9″ |
| 1″ | 9.8 | 7.2 | 20 | 8″ | 16″ | 2-1/2″ | 4-1/2″ | 11 | 2-1/8″ | 9″ |
| 1-1/8″ | 12 | 9.1 | 24 | 9″ | 18″ | 2-7/8″ | 5-1/4″ | 15 | 2-1/4″ | 10-1/16″ |
| 1-1/4″ | 15 | 11 | 30 | 10″ | 20″ | 3-1/2″ | 6-1/4″ | 15 | 2-1/4″ | 10-1/16″ |
| 1-1/2″ | 21 | 16 | 42 | 12″ | 24″ | 3-1/2″ | 6-1/4″ | 22 | 3″ | 12-1/2″ |
| 1-3/4″ | 28 | 21 | 57 | 14″ | 28″ | 4-1/2″ | 9″ | 30 | 3-1/2″ | 13-7/8″ |
| 2″ | 37 | 28 | 73 | 16″ | 32″ | 6″ | 12″ | 37 | 4-1/2″ | 18-3/16″ |
All capacities in tons (2,000 lbs.) All eye and fitting dimensions in inches.
Any and all sizes are available. Please contact your sales representative for details.
WARNING Do not exceed working load limit.

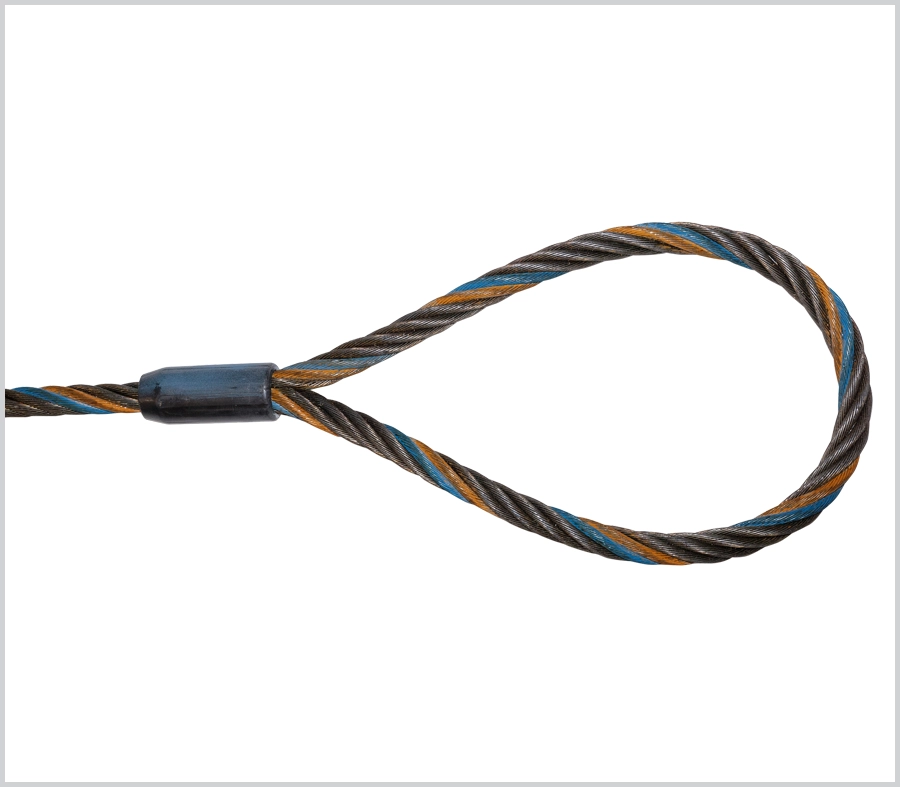

Flemished Eye

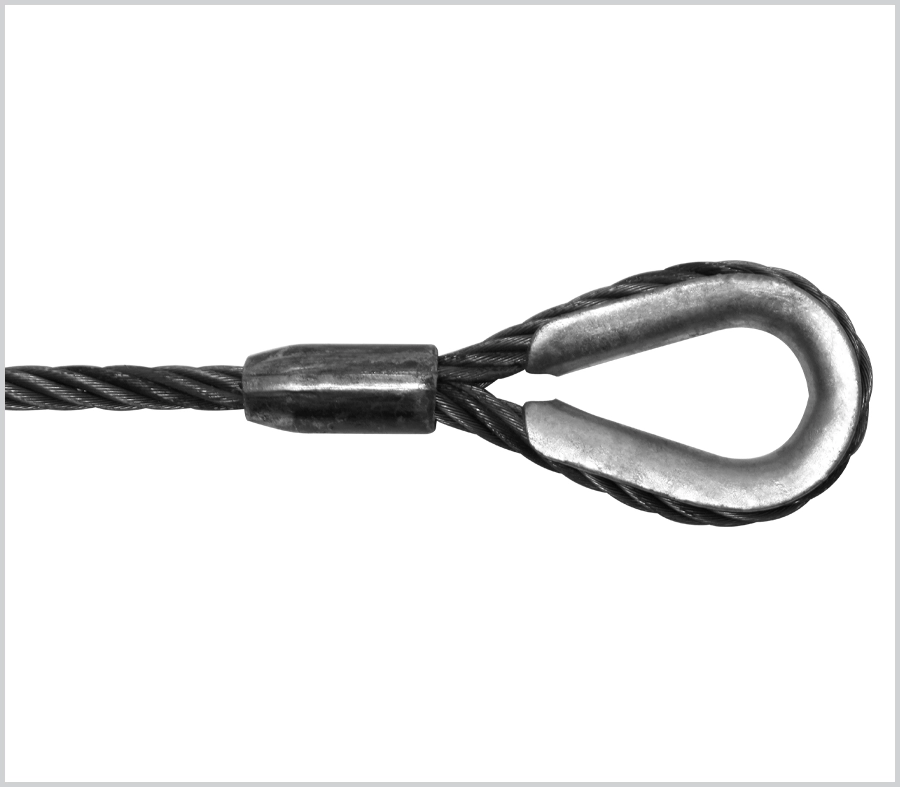

Flemished Thimbled Eye

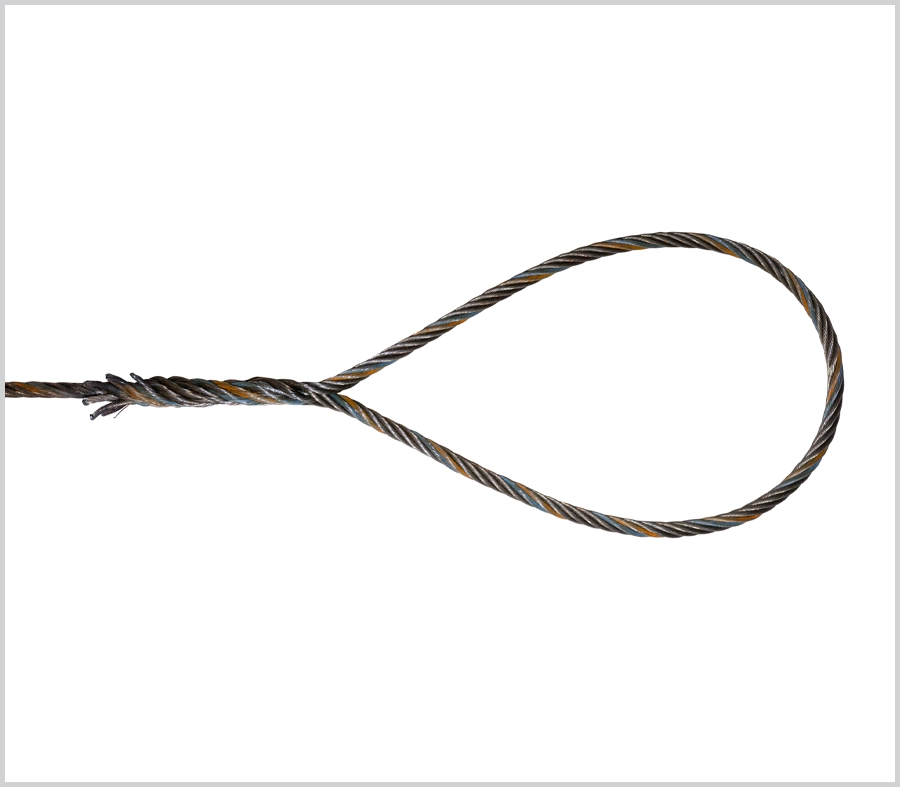

Hand Spliced Eye

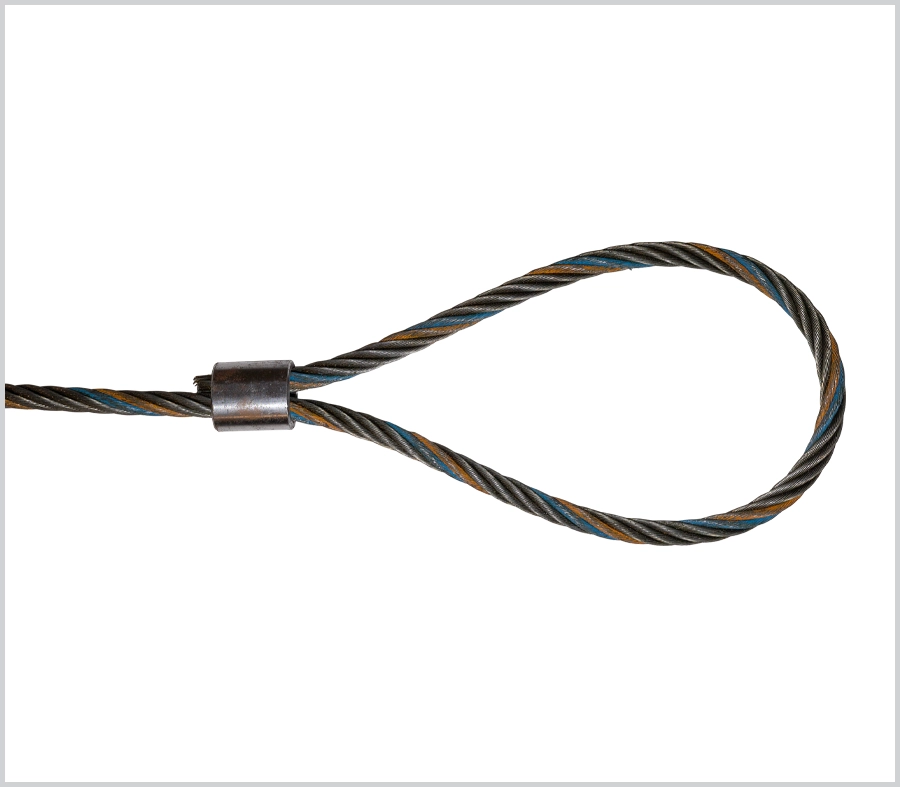

One Piece Turnback
Two Piece Turnback
