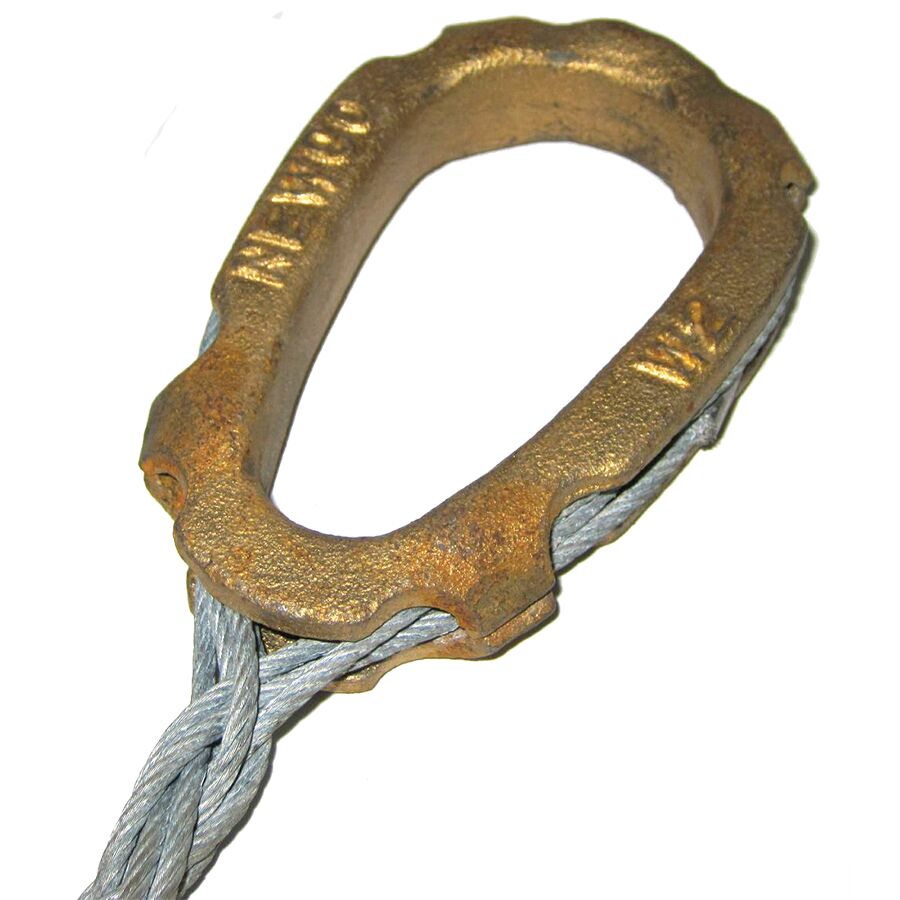

Slip Thru Thimbles
| STOCK NUMBER | SINGLE PART ROPE SIZE | A | B | C | D | E | F | G | WEIGHT/ PIECE (LBS.) |
|---|---|---|---|---|---|---|---|---|---|
| ST-10 | 5/16″ – 3/8″ | 2 1/8″ | 4 1/8″ | 7/16″ | 13/16″ | 9/16″ | 3 1/4″ | 5 1/4″ | 1.3 |
| ST-16 | 1/2″ – 9/16″ | 2 3/8″ | 4 3/8″ | 5/8″ | 1″ | 5/8″ | 4″ | 6″ | 1.5 |
| ST-20 | 5/8″ – 3/4″ | 3 3/8″ | 6 5/8″ | 13/16″ | 1 5/16″ | 5/8″ | 5 3/8″ | 8 1/2″ | 3.4 |
| ST-24 | 7/8″ – 1″ | 3 3/4″ | 7 1/8″ | 1 1/8″ | 1 5/8″ | 7/8″ | 6 1/4″ | 9 3/8″ | 5.5 |
| ST-36 | 1 1/8″ – 1 1/4″ | 4 3/8″ | 8 3/8″ | 1 3/8″ | 1 7/8″ | 1″ | 7 1/8″ | 11″ | 8.6 |
| ST-44 | 1 3/8″ – 1 1/2″ | 5″ | 9 1/2″ | 1 5/8″ | 2 1/8″ | 1 1/4″ | 8 1/8″ | 12 1/2″ | 10 |
Larger sizes available upon request.
