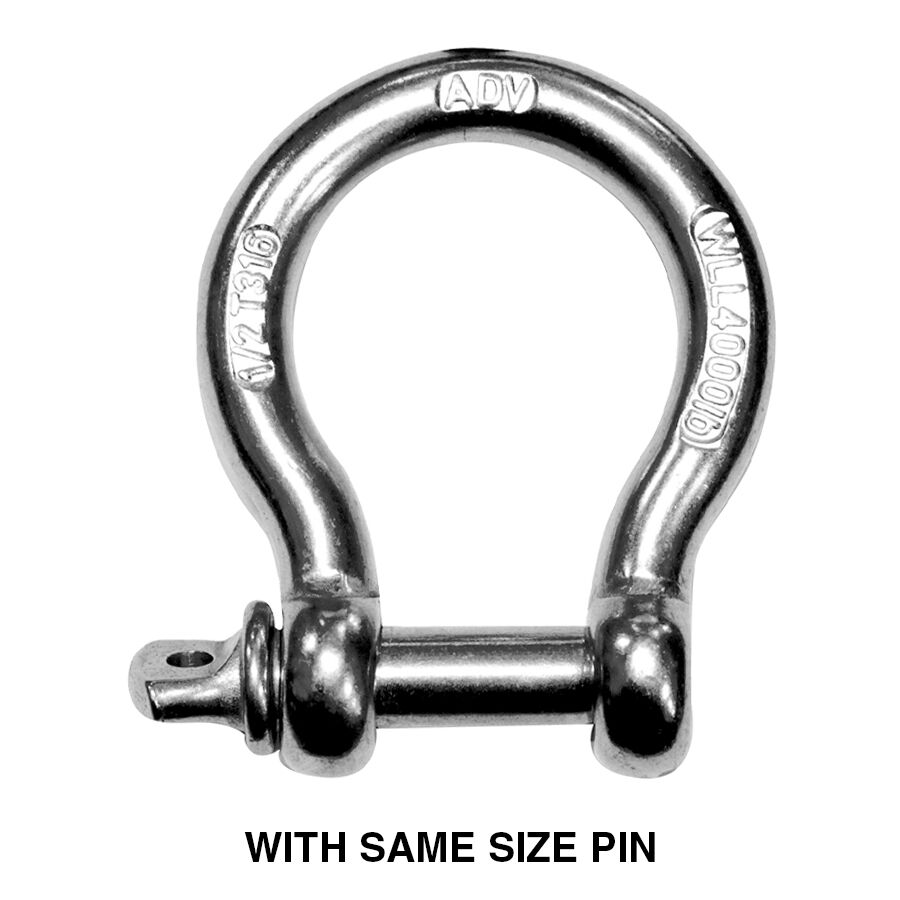

Stainless Steel Type 316 Screw Pin Bow Shackles
- Rated for overhead lifting
- 5:1 minimum breaking strength to working load limit ratio
- Type 316
- Clearly marked with working load limit, size and “ADV”
- Pin is the same size as the shackle
Type 316
| STOCK NUMBER | SIZE | PIN DIAMETER | DIMENSIONS | WORKING LOAD LIMIT | WEIGHT/PIECE | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | |||||
| SSPA187BOW | 3/16″ | 3/16″ | .38 | .25″ | .88″ | .19″ | .60″ | .56″ | .98″ | 1.47″ | .16″ | 1.14″ | .19″ | 500 lbs. | .04 lbs. |
| SSPA250BOW | 1/4″ | 1/4″ | .47″ | .31″ | 1.13″ | .25″ | .78″ | .61″ | 1.28″ | 1.84″ | .19″ | 1.43″ | .25″ | 750 lbs. | .06 lbs. |
| SSPA312BOW | 5/16″ | 5/16″ | .53″ | .38″ | 1.22″ | .31″ | .84″ | .75″ | 1.47″ | 2.09″ | .22″ | 1.71″ | .31″ | 1,300 lbs. | .12 lbs. |
| SSPA375BOW | 3/8″ | 3/8″ | .66″ | .44″ | 1.44″ | .38″ | 1.03″ | .91″ | 1.78″ | 2.49″ | .25″ | 2.02″ | .38″ | 1,750 lbs. | .25 lbs. |
| SSPA500BOW | 1/2″ | 1/2″ | .81″ | .63″ | 1.88″ | .50″ | 1.31″ | 1.19″ | 2.31″ | 3.28″ | .38″ | 2.69″ | .50″ | 3,000 lbs. | .56 lbs. |
| SSPA625BOW | 5/8″ | 5/8″ | 1.06″ | .75″ | 2.38″ | .63″ | 1.69″ | 1.50″ | 2.94″ | 4.19″ | .44″ | 3.34″ | .69″ | 4,000 lbs. | 1.05 lbs. |
| SSPA750BOW | 3/4″ | 3/4″ | 1.25″ | .88″ | 2.81″ | .75″ | 2.00″ | 1.81″ | 3.50″ | 4.97″ | .50″ | 3.97″ | .81″ | 6,000 lbs. | 1.68 lbs. |
| SSPA875BOW | 7/8″ | 7/8″ | 1.44″ | 1.00″ | 3.31″ | .88″ | 2.28″ | 2.09″ | 4.03″ | 5.83″ | .50″ | 4.50″ | .97″ | 8,000 lbs. | 2.52 lbs. |
| SSPA100BOW | 1″ | 1″ | 1.69″ | 1.13″ | 3.75″ | 1.00″ | 2.69″ | 2.38″ | 4.69″ | 6.56″ | .56″ | 5.13″ | 1.06″ | 9,000 lbs. | 3.80 lbs. |
| SSPA1250BOW | 1 1/4” | 1 1/4” | – | – | – | – | – | – | – | – | – | – | – | 12,000 lbs. | 9.50 lbs. |
