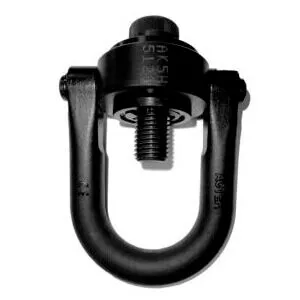

Swivel Hoist Rings
| STOCK NUMBER | U-BAR DIAMETER | RATED LOAD (LBS.) | THREAD SIZE | THREAD PROTRUSION | TORQUE |
|---|---|---|---|---|---|
| 46100 | 3/8″ | 600 lbs. | 1/4″ – 20 | .54″ | 6 FT./lbs. |
| 46104 | 3/8″ | 800 lbs. | 5/16″ – 18 | .54″ | 7 FT./lbs. |
| 46106 | 3/8″ | 1,000 lbs. | 3/8″ – 16 | .54″ | 12 FT./lbs. |
| 46606 | 1/2″ | 2,000 lbs. | 7/16″ – 14 | 1.07″ | 22 FT./lbs. |
| 46602 | 1/2″ | 2,500 lbs. | 1/2″ – 13 | 1.07″ | 28 FT./lbs. |
| 46608 | 3/4″ | 2,500 lbs. | 1/2″ – 13 | .78″ | 28 FT./lbs. |
| 46007 | 3/4″ | 2,500 lbs. | 9/16″ – 12 | .78″ | 30 FT./lbs. |
| 46002 | 3/4″ | 4,000 lbs. | 5/8″ – 11 | .78″ | 60 FT./lbs. |
| 46018 | 3/4″ | 5,000 lbs. | 3/4″ – 10 | 1.53″ | 100 FT./lbs. |
| 46204 | 1″ | 7,000 lbs. | 3/4″ – 10 | 1.04″ | 100 FT./lbs. |
| 46202 | 1″ | 8,000 lbs. | 7/8″ – 9 | 1.04″ | 160 FT./lbs. |
| 46210 | 1″ | 10,000 lbs. | 1″ – 8 | 1.29″ | 230 FT./lbs. |
| STOCK NUMBER | RATED LOAD (LBS.) | THREAD SIZE | THREAD PROTRUSION | TORQUE |
|---|---|---|---|---|
| 56100 | 600 | 1/4″ – 20 | .5″ | 5 FT./lbs. |
| 56102 | 800 | 5/16″ – 18 | .5″ or 1″ | 7 FT./lbs. |
| 56106 | 1,000 | 3/8″ – 16 | .5″ or 1″ | 12 FT./lbs. |
| 56008 | 2,500 | 1/2″ – 13 | .75″ | 28 FT./lbs. |
| 56010 | 2,500 | 1/2″ – 13 | 1″ | 28 FT./lbs. |
| 56012 | 2,500 | 1/2″ – 13 | 1.25″ | 28 FT./lbs. |
| 56002 | 4,000 | 5/8″ – 11 | .75″ | 60 FT./lbs. |
| 56004 | 4,000 | 5/8″ – 11 | 1″ | 60 FT./lbs. |
| 56006 | 4,000 | 5/8″ – 11 | 1.25″ | 60 FT./lbs. |
| 56014 | 5,000 | 3/4″ – 10 | 1″ or 1.5″ | 100 FT./lbs. |
| 56204 | 7,000 | 3/4″ – 10 | 1″ | 100 FT./lbs. |
| 56203 | 7,000 | 3/4″ – 10 | 1.25″ | 100 FT./lbs. |
| 56206 | 7,000 | 3/4″ – 10 | 1.5″ | 100 FT./lbs. |
| 56202 | 8,000 | 7/8″ – 9 | 1″ or 1.25″ | 160 FT./lbs. |
| 56210 | 10,000 | 1″ – 8 | 1.25″ | 230 FT./lbs. |
| 56212 | 10,000 | 1″ – 8 | 1.5″ | 230 FT./lbs. |
| 56214 | 10,000 | 1″ – 8 | 2.25″ | 230 FT./lbs. |
| 56802 | 15,000 | 1 1/4″ – 7 | 2″ or 2.75″ | 470 FT./lbs. |
| 56702 | 20,000 | 1 3/8″ – 6 | 2.75″ | 540 FT./lbs. |
| 56404 | 24,000 | 1 1/2″ – 6 | 2.75″ | 800 FT./lbs. |
| DIRECTION OF PULL (FROM IN-LINE) | ADJUSTED WORKING LOAD |
|---|---|
| 45 degrees | 30% of rated working load |
| 90 degrees | 25% of rated working load |
Warning: The full ratings of machinery eye bolts can only be achieved by pulling directly in line with the threads. For angled lifts, we recommend swivel hoist rings.
