Three-Leg Bridle Wire Rope Slings
Select your X100® Grade 100 Hardware.
Three-Leg Bridle Wire Rope Slings

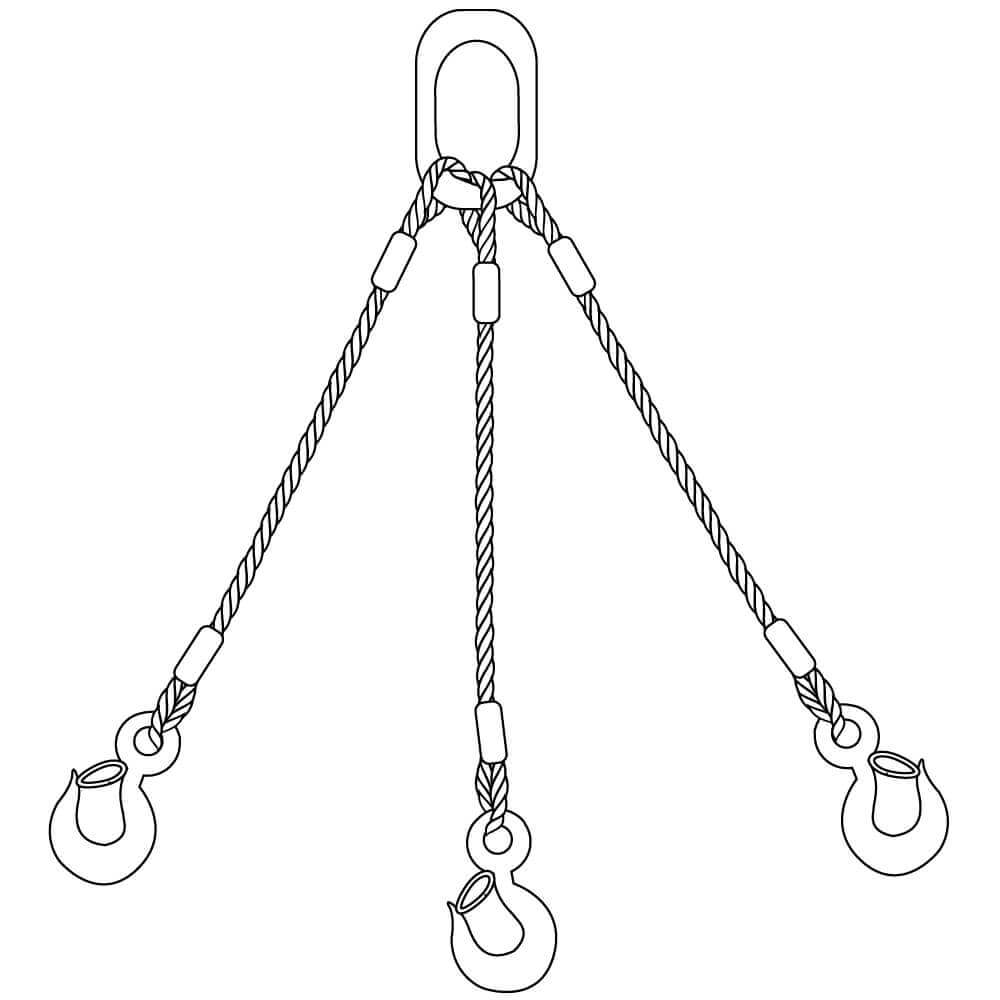

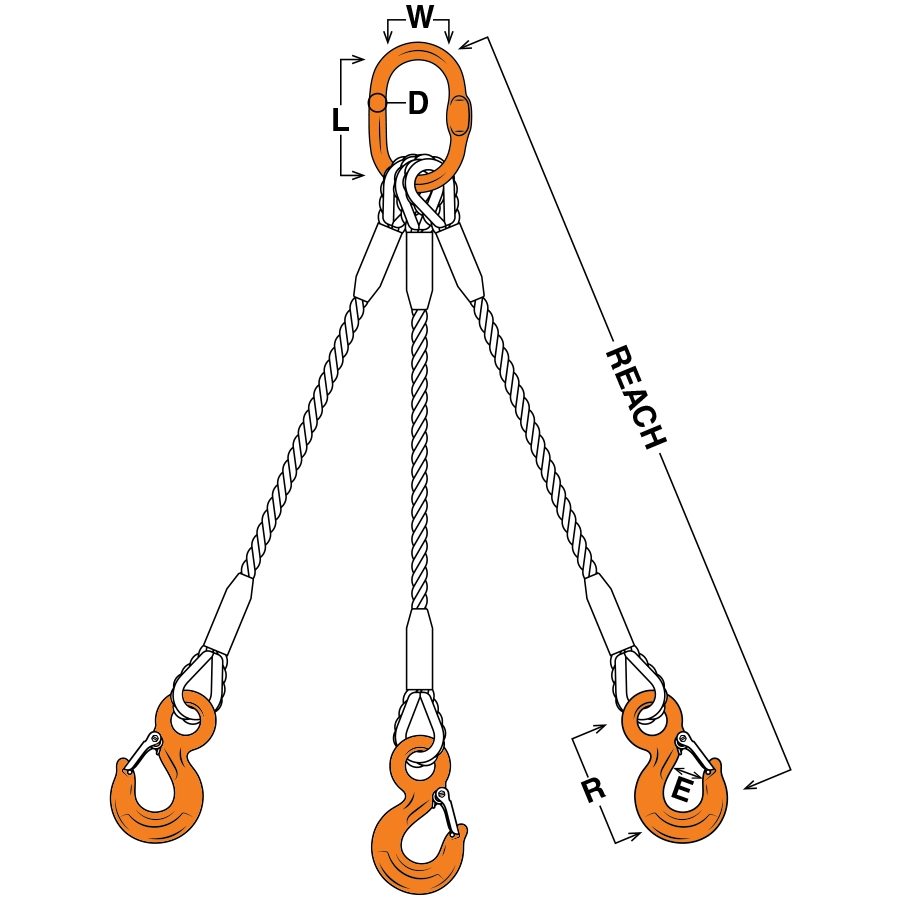

| ROPE DIA. | WORKING LOAD LIMIT – TON EIPS IWRC W/P | ALLOY OBLONG LINK | STANDARD HOOK SELECTION | ||||||
|---|---|---|---|---|---|---|---|---|---|

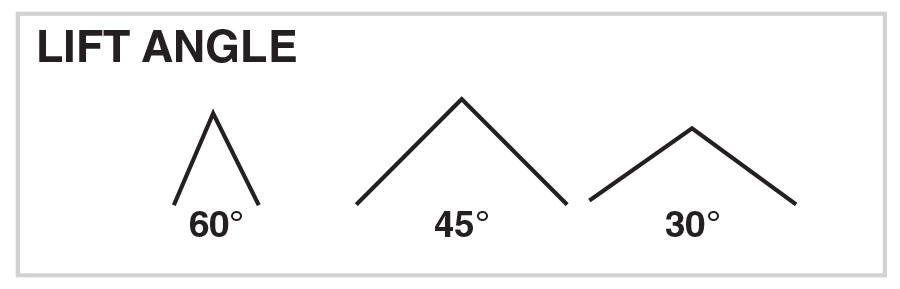

| 60° | 45° | 30° | D | L | W | WLL TON | E | R | |
| 1/4″ | 1.7 | 1.4 | .97 | 1/2″ | 4-3/8″ | 2-3/8″ | 1 | 7/8″ | 3-5/16″ |
| 5/16″ | 2.6 | 2.1 | 1.5 | 5/8″ | 5-1/2″ | 3-1/8″ | 1 | 7/8″ | 3-5/16″ |
| 3/8″ | 3.7 | 3 | 2.2 | 3/4″ | 6-5/16″ | 3-1/2″ | 1-1/2 | 7/8″ | 3-5/8″ |
| 7/16″ | 5 | 4.1 | 2.9 | 7/8″ | 6-5/16″ | 3-3/4″ | 2 | 1-1/16″ | 4″ |
| 1/2″ | 6.6 | 5.4 | 3.8 | 1″ | 7-1/8″ | 3-7/8″ | 3 | 1-1/4″ | 4-1/2″ |
| 9/16″ | 8.3 | 6.8 | 4.8 | 1″ | 7-1/8″ | 3-7/8″ | 5 | 1-1/2″ | 5-3/4″ |
| 5/8″ | 10 | 8.3 | 5.9 | 1-1/4″ | 7-7/8″ | 4-5/16″ | 5 | 1-1/2″ | 5-3/4″ |
| 3/4″ | 15 | 12 | 8.4 | 1-1/2″ | 10-3/4″ | 5-7/8″ | 7 | 2″ | 7-1/8″ |
| 7/8″ | 20 | 16 | 11 | 1-1/2″ | 10-3/4″ | 5-7/8″ | 11 | 2-1/8″ | 9″ |
| 1″ | 26 | 21 | 15 | 1-3/4″ | 13-3/8″ | 7″ | 11 | 2-1/8″ | 9″ |
| 1-1/8″ | 31 | 26 | 18 | 2″ | 13-3/4″ | 7-1/2″ | 15 | 2-1/4″ | 10-1/16″ |
| 1-1/4″ | 38 | 31 | 22 | 2-1/4″ | 16″ | 8″ | 15 | 2-1/4″ | 10-1/16″ |
| 1-1/2″ | 55 | 45 | 32 | 2-1/4″ | 16″ | 8″ | 22 | 3″ | 12-1/2″ |
All capacities in tons (2,000 lbs.) All eye and fitting dimensions in inches.
Any and all sizes are available. Please contact your sales representative for details.
WARNING Do not exceed working load limit.
