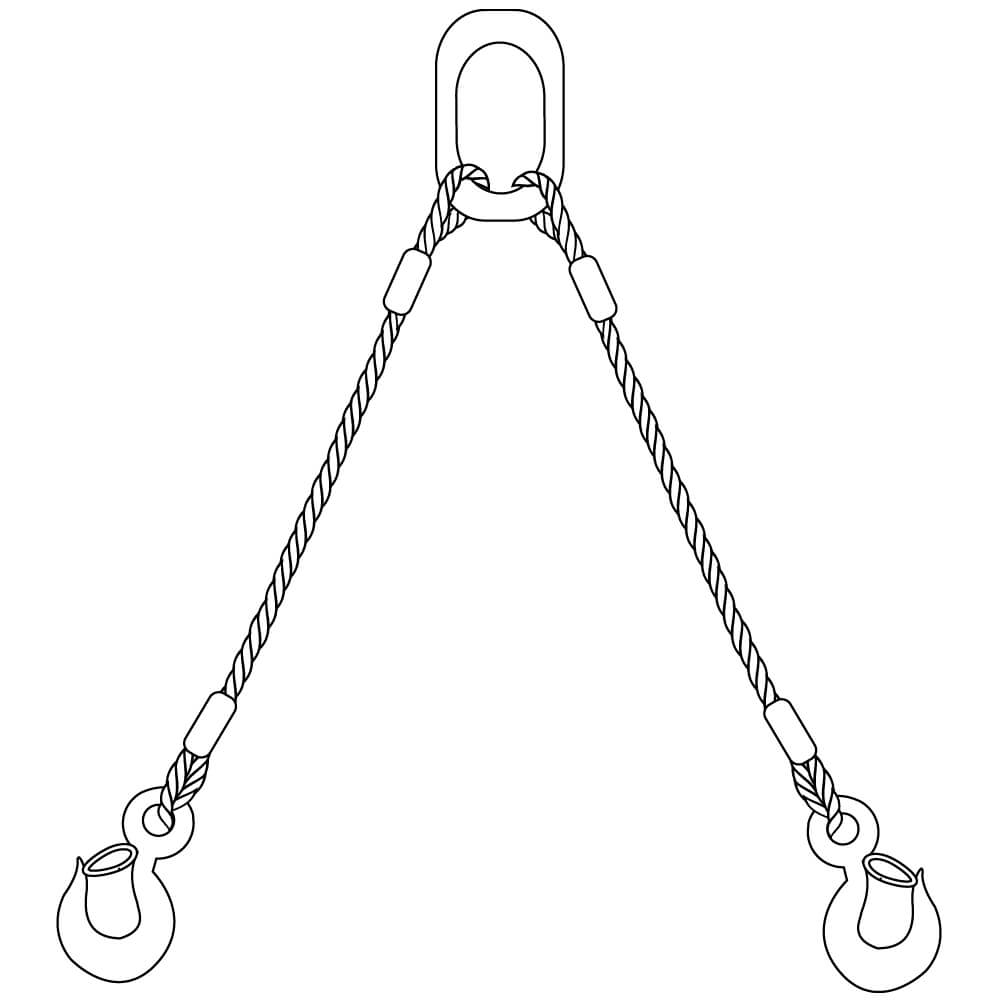

Two Leg Bridle Wire Rope Slings

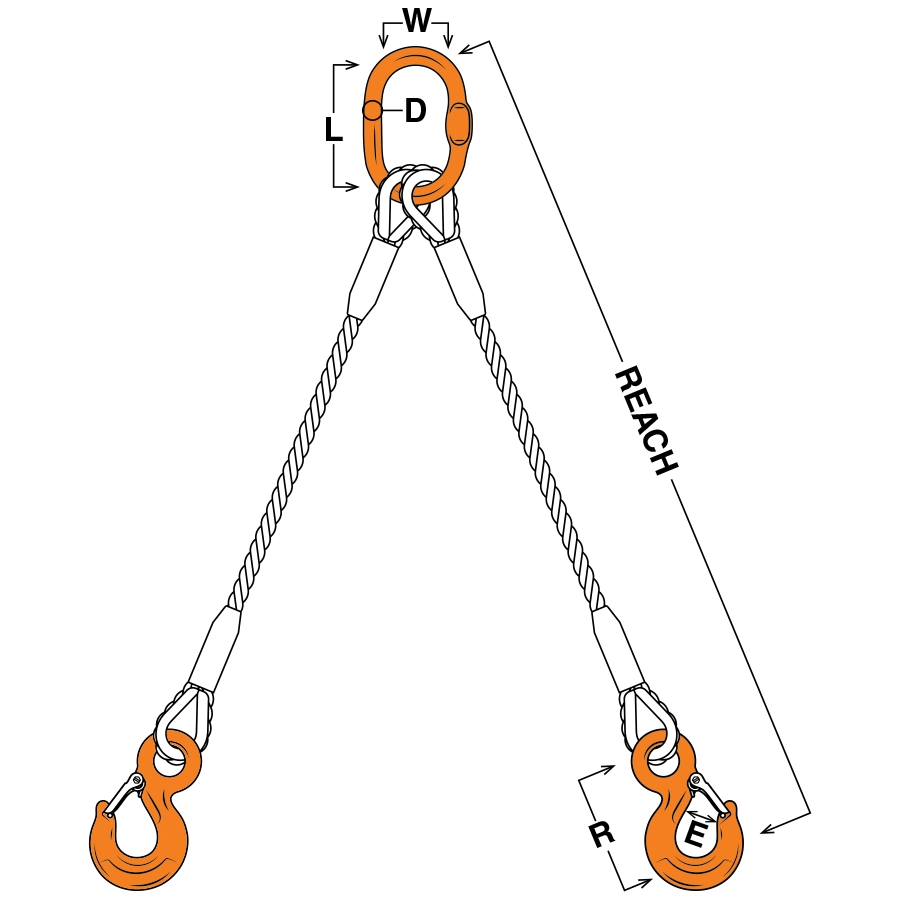

| ROPE DIAMETER |
RATED CAPACITY – TONS* EIPS IWRC W/R |
ALLOY OBLONG LINKS | HOOK | ||||||
|---|---|---|---|---|---|---|---|---|---|

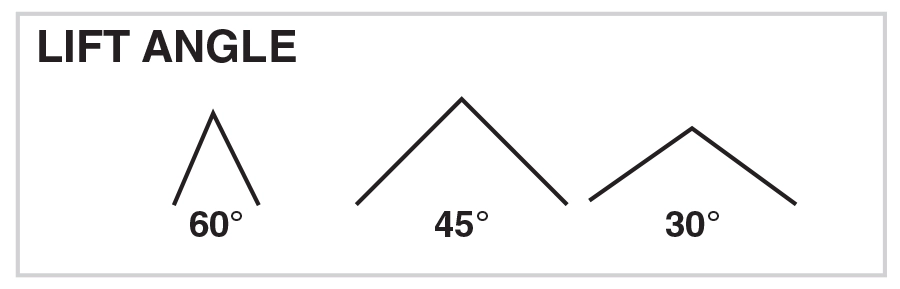

| 30° | 45° | 60° | D | L | W | WLL** TONS |
E | R | |
| 1/4″ | .65 | .91 | 1.1 | 1/2″ | 5″ | 2 1/2″ | 1 | 15/16″ | 3 7/32″ |
| 5/16″ | 1.0 | 1.4 | 1.7 | 1/2″ | 5″ | 2 1/2″ | 1 | 1 1/32″ | 3 21/32″ |
| 3/8″ | 1.4 | 2.0 | 2.5 | 1/2″ | 5″ | 2 1/2″ | 1 1/2 | 1 1/16″ | 4 3/32″ |
| 7/16″ | 1.9 | 2.7 | 3.4 | 3/4″ | 5 1/2″ | 2 3/4″ | 2 | 1 7/32″ | 4 11/16″ |
| 1/2″ | 2.5 | 3.6 | 4.4 | 3/4″ | 5 1/2″ | 2 3/4″ | 3 | 1 1/2″ | 5 3/4″ |
| 9/16″ | 3.2 | 4.5 | 5.5 | 3/4″ | 5 1/2″ | 2 3/4″ | 4 1/2 | 1 1/2″ | 5 3/4″ |
| 5/8″ | 3.9 | 5.5 | 6.8 | 1″ | 8″ | 4″ | 4 1/2 | 1 7/8″ | 7 3/8″ |
| 3/4″ | 5.6 | 7.9 | 9.7 | 1 1/4″ | 8 3/4″ | 4 3/8″ | 7 | 1 7/8″ | 7 3/8″ |
| 7/8″ | 7.6 | 11 | 13 | 1 1/4″ | 8 3/4″ | 4 3/8″ | 11 | 2 1/4″ | 9 1/16″ |
| 1″ | 9.8 | 14 | 17 | 1 1/2″ | 10 1/2″ | 5 1/4″ | 11 | 2 1/2″ | 10 1/16″ |
| 1 1/8″ | 12 | 17 | 21 | 1 1/2″ | 10 1/2″ | 5 1/4″ | 15 | 2 1/2″ | 10 1/16″ |
| 1 1/4″ | 15 | 21 | 26 | 1 3/4″ | 12″ | 6″ | 15 | 2 1/2″ | 10 1/16″ |
| 1 1/2″ | 21 | 30 | 37 | 2″ | 14″ | 7″ | 22 | 3 3/8″ | 12 1/2″ |
| 1 3/4″ | 28 | 40 | 49 | 2 1/4″ | 16″ | 8″ | 30 | 4″ | 14 1/16″ |
| 2″ | 37 | 52 | 63 | 2 3/4″ | 16″ | 9″ | 37 | 4 1/4″ | 18 5/16″ |
Do not exceed work load limit.
*Rated capacities for unprotected eyes apply only when attachment is made over an object narrower than the natural width of the eye, and apply for basket hitches only when the D/d ratio is 20 or greater, where D = Diameter of curvature around which the body of the sling is bent, and d = nominal diameter of the rope. Note: Fiber core wire rope, deduct 10%. **Working Load Limit = 20% of break strength unless otherwise noted.
Please note: Any and all sizes are available. Please contact your Advantage sales person for details.
