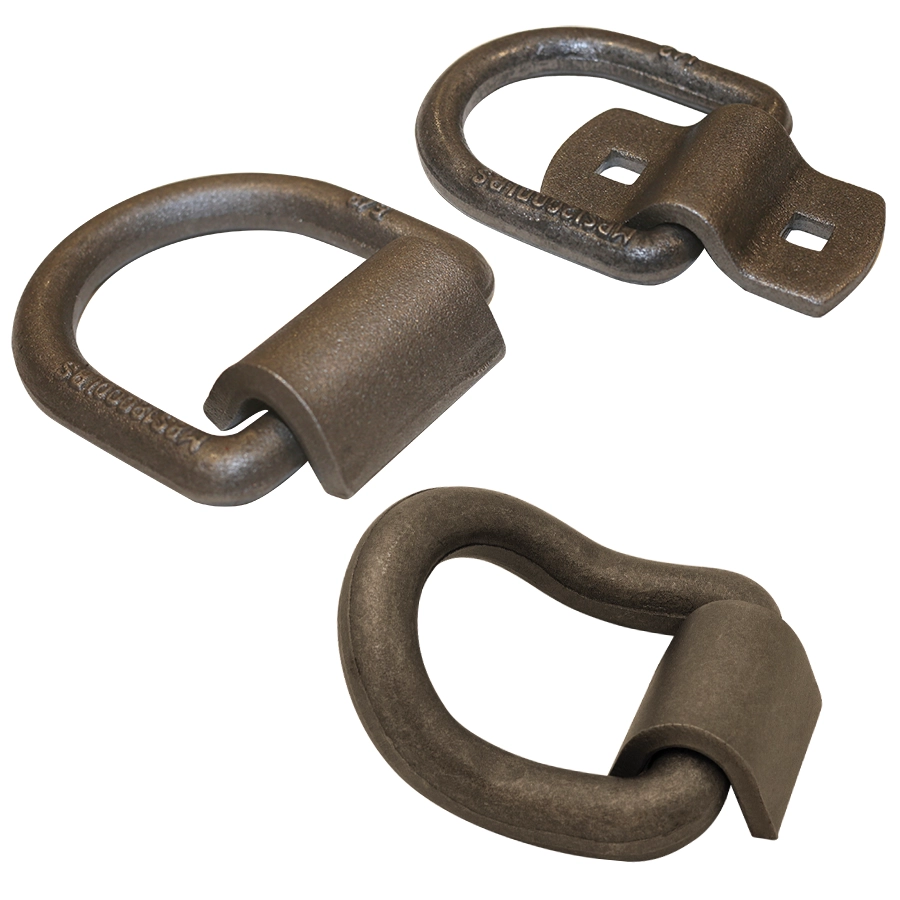

Weld-On D-Rings
- The rings come with weld-on mounting brackets
- Self colored
- Not suitable for overhead lifting
Not for Overhead Lifting
| STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | BREAKING STRENGTH (LBS.) | MATERIAL | DESCRIPTION | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|---|
| DR-500B | 3,000 | 12,000 | C-1045 | 1/2″ Forged D-Ring w/ Bolt-On Mounting Bracket | 0.5 |
| DR-500 | 3,000 | 12,000 | C-1045 | 1/2″ Forged D-Ring w/ Weld-On Mounting Bracket | 0.5 |
| DR-625 | 4,500 | 18,000 | C-1045 | 5/8″ Forged D-Ring w/ Weld-On Mounting Bracket | 0.7 |
| DR-750 | 6,625 | 26,500 | C-1045 | 3/4″ Forged D-Ring w/ Weld-On Mounting Bracket | 1.0 |
| DR-100 | 11,750 | 47,000 | C-1045 | 1″ Forged D-Ring w/ Weld-On Mounting Bracket | 1.3 |

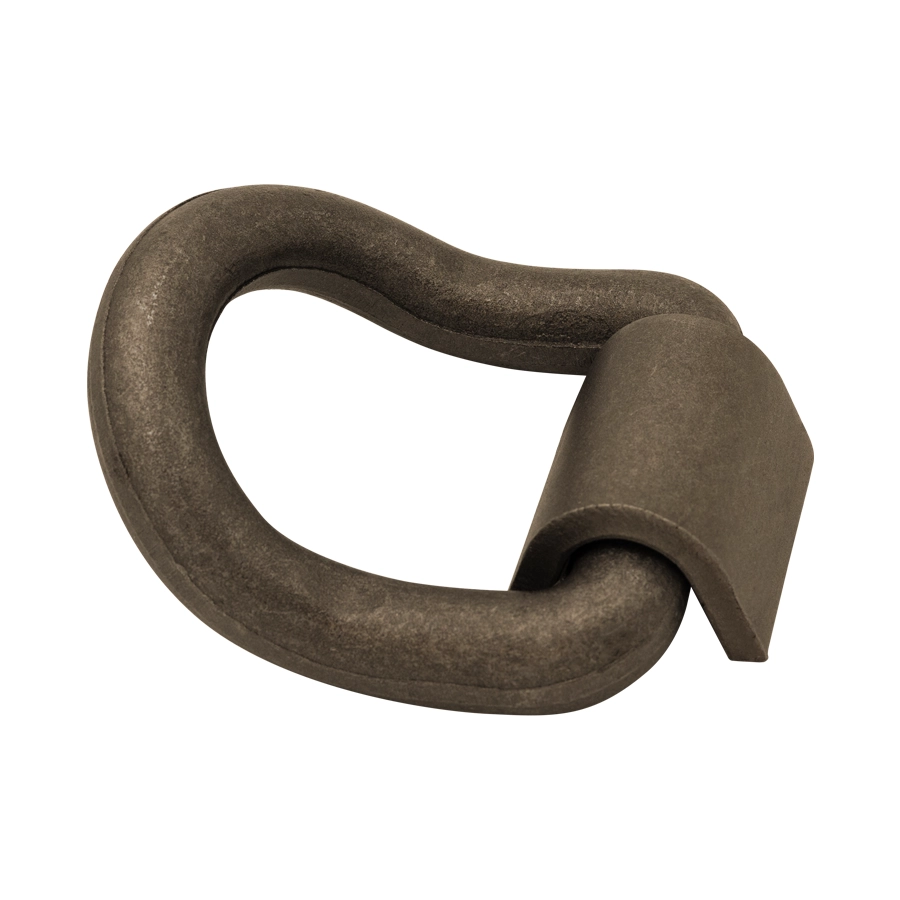

| DR-100BT | 11,750 | 47,000 | C-1045 | 1″ Bent Forged D-Ring w/ Weld On Mounting Bracket | 1.3 |
WARNING: Welding is to be performed by a qualified welder using a qualified procedure in accordance with the American Welding Society.
The rings come with weld-on mounting brackets. Brackets are 1-7/8″ wide and 3/8″ thick for DR-625 and DR-750, 2″wide and 3/8″ thick for DR-100.

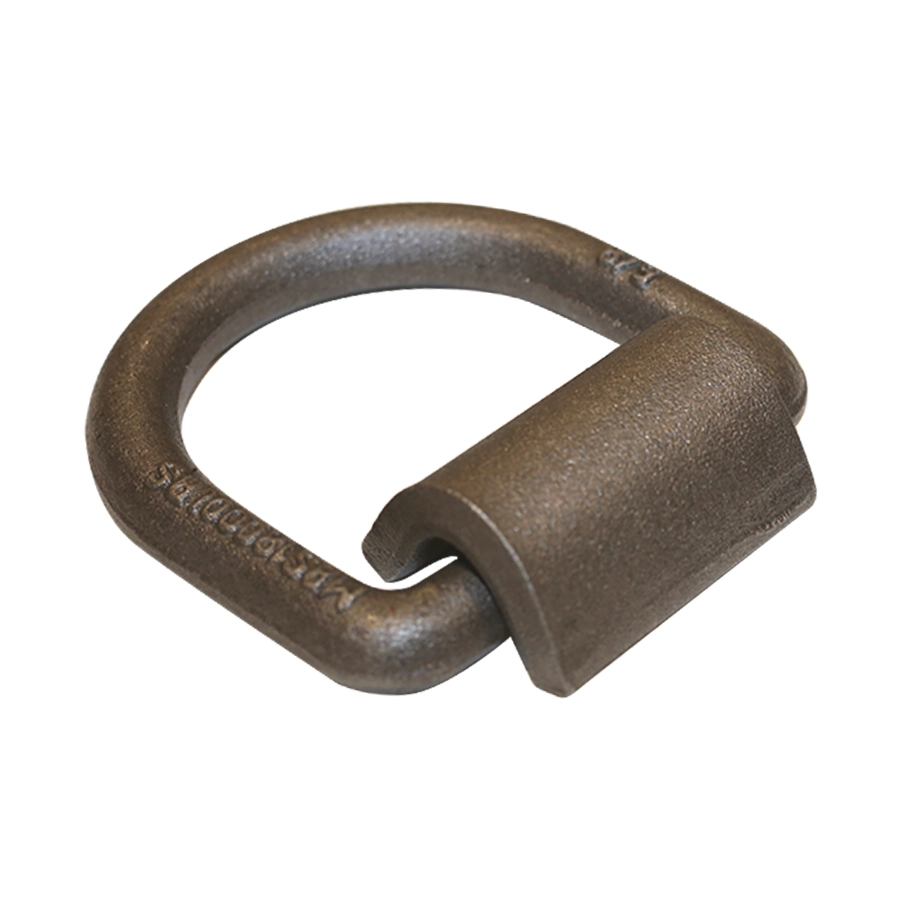

Weld-On

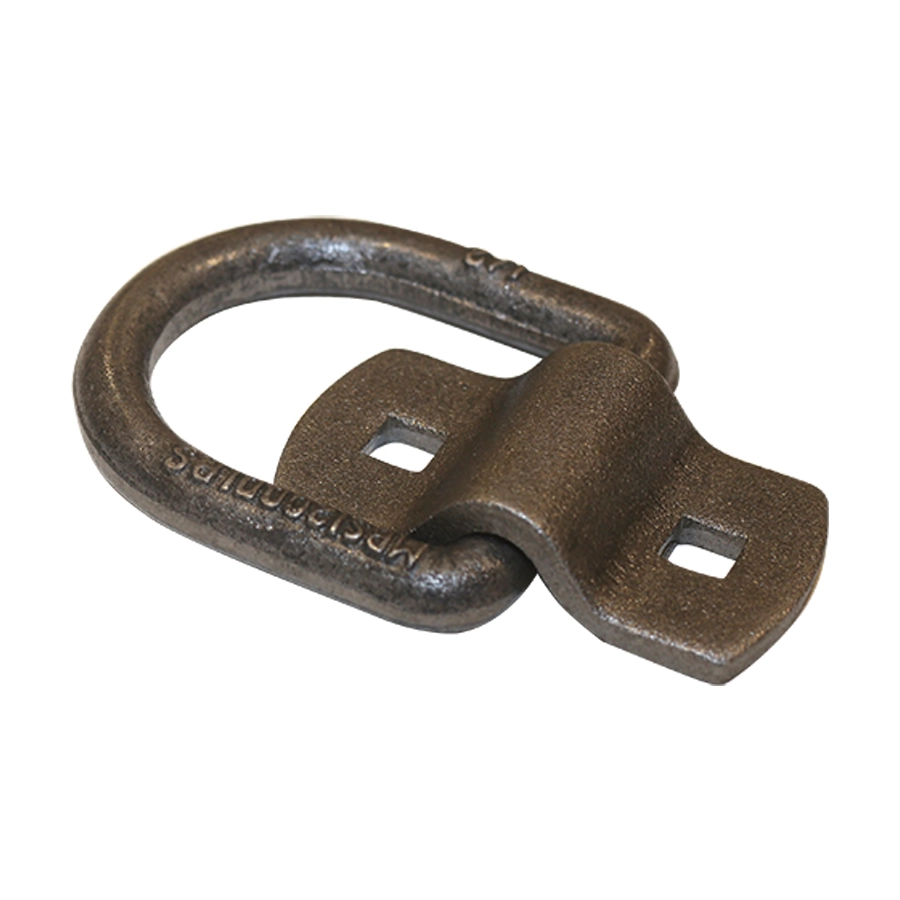

Bolt On
