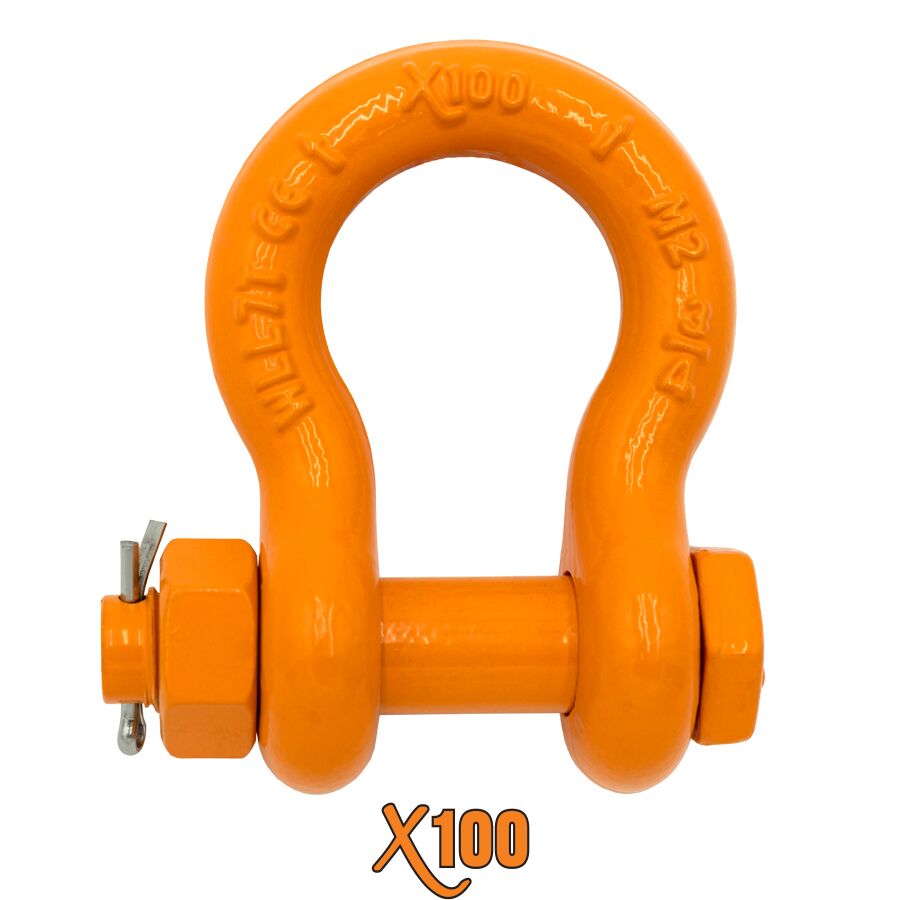

X100® All Alloy Bolt Type Anchor Shackle
APPROVED FOR OVERHEAD LIFTING
-
Approved for Overhead Lifting
-
100% Forged Alloy Steel
-
Quenched & Tempered
-
Easily recognizable X100 BLAZE ORANGE powder coating which provides protection from corrosion, and enables full exposure of identification markings
-
Zinc plated prior to X100 BLAZE ORANGE powder coating provides superior corrosion resistance
-
Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability, 45° Indicator Arrows*
-
*Convenient 45° arrows aid the end user in their rigging applications (1/2″ and larger)
| STOCK NUMBER | SIZE | PIN DIAMETER | WORKING LOAD LIMIT (TONS) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|
| XSASA500 | 1/2″ | 5/8″ | 3.33 | 1.4 |
| XSASA625 | 5/8″ | 3/4″ | 5.00 | 2.4 |
| XSASA750 | 3/4″ | 7/8″ | 7.00 | 3.6 |
| XSASA875 | 7/8″ | 1″ | 9.50 | 5.8 |
| XSASA100 | 1″ | 1-1/8″ | 12.50 | 8.0 |
| XSASA1125 | 1-1/8″ | 1-1/4″ | 15.00 | 10.8 |
| XSASA1250 | 1-1/4″ | 1-3/8″ | 18.00 | 14 |
| XSASA1375 | 1-3/8″ | 1-1/2″ | 21.00 | 18.2 |
| XSASA1500 | 1-1/2″ | 1-5/8″ | 30.00 | 18.2 |
Ultimate load is 5 times the Working Load Limit.

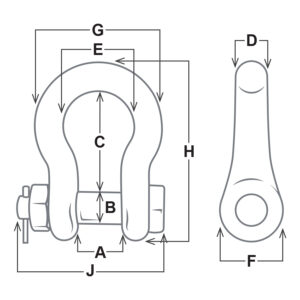

| STOCK NUMBER | DIMENSIONS (IN) | ||||||||
