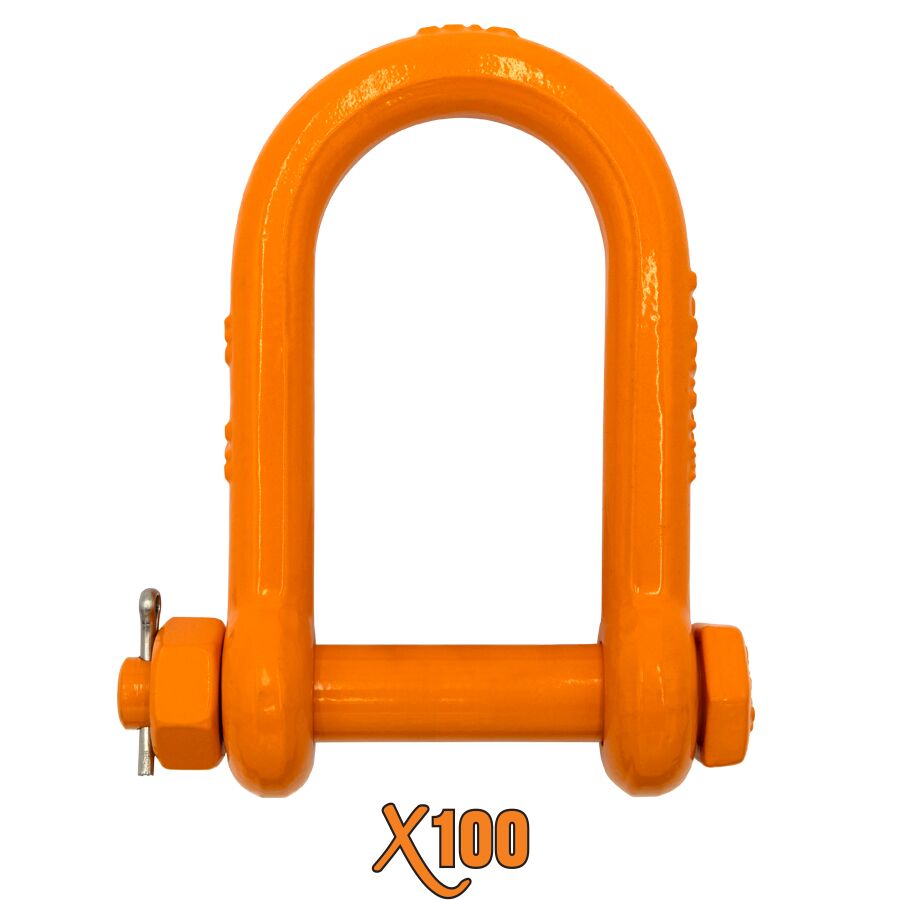

X100® All Alloy Bolt Type Long Reach Shackle
APPROVED FOR OVERHEAD LIFTING
-
Approved for Overhead Lifting
-
Meets ASME B30.26 Requirements
-
100% Forged Alloy Steel
-
Design Factor of 5:1
-
Markings: X100 Brand, Size, Working Load Limit, Traceability
-
Extended Bow: Designed for lifting applications that require an extended reach to connect to pick points
-
Easily recognizable X100 BLAZE ORANGE Powder Coated which provides protection from corrosion, and enables full exposure of identification markings
-
Hot Dip Galvanized prior to BLAZE ORANGE Powder Coating provides superior corrosion resistance
-
Load should be evenly distributed over entire pin
-
To achieve full Working Load Limit, 80% minimum pin coverage is required
-
Long Reach Shackles should not be side loaded or point loaded
- Includes Bolt, Nut, and Cotter Pin
| STOCK NUMBER | SIZE | PIN DIAMETER | WORKING LOAD LIMIT (TONS) | WEIGHT/PIECE (LBS.) | QTY/BOX |
|---|---|---|---|---|---|
| XLRSB625 | 5/8″ | 0.75″ | 3-1/2 | 2.2 | 20 |
| XLRSB750 | 3/4″ | 0.88″ | 5 | 3.6 | 10 |
| XLRSB100 | 1″ | 1.00″ | 9-1/2 | 6.6 | 6 |
| XLRSB1250 | 1-1/4″ | 1.38″ | 14 | 12.8 | 4 |
| XLRSB1500 | 1-1/2″ | 1.50″ | 17 | 19.8 | 2 |
| XLRSB1750 | 1-3/4″ | 2.00″ | 25 | 32.2 | 1 |
Ultimate load is 5 times the Working Load Limit.
