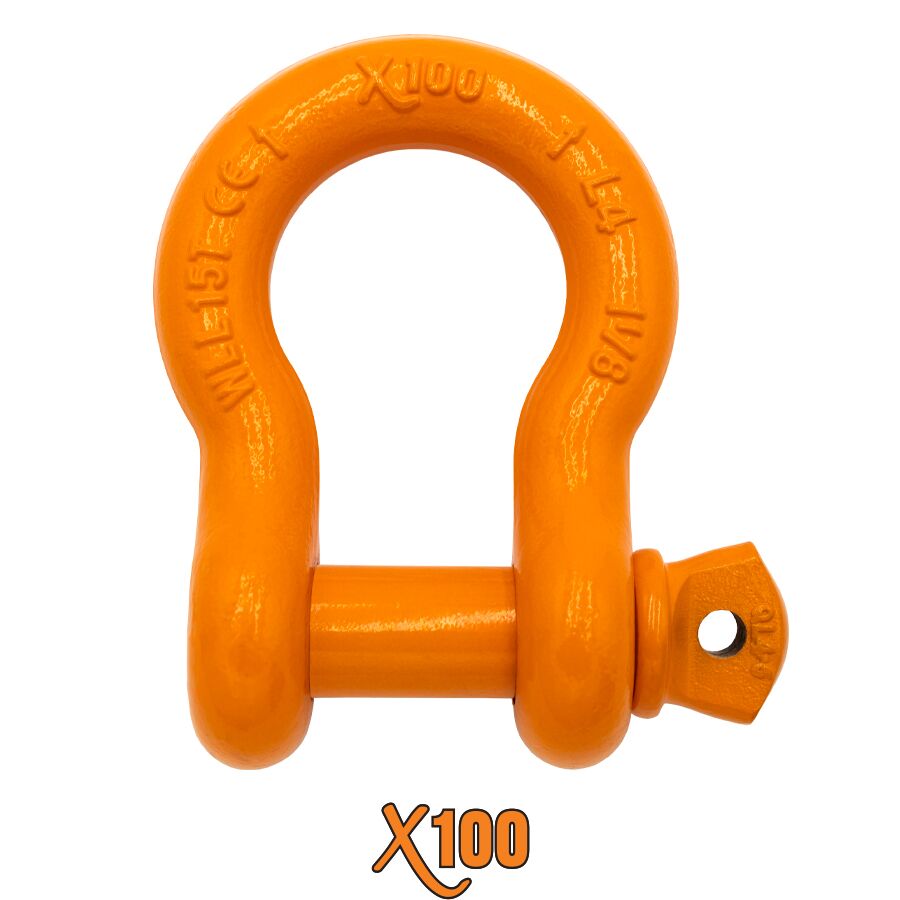

X100® All Alloy Screw Pin Anchor Shackles
APPROVED FOR OVERHEAD LIFTING
-
Approved for Overhead Lifting
-
100% Forged Alloy Steel
-
Quenched & Tempered
-
Easily recognizable X100 BLAZE ORANGE powder coating which provides protection from corrosion, and enables full exposure of identification markings
-
Zinc plated prior to X100 BLAZE ORANGE powder coating provides superior corrosion resistance
-
Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability, 45° Indicator Arrows*
-
*Convenient 45° arrows aid the end user in their rigging applications (1/2″ and larger)
STOCK NUMBER | SIZE | PIN DIAMETER | WORKING LOAD LIMIT (TON) | WEIGHT/PIECE (LBS.) |
---|---|---|---|---|
XSPAA250 | 1/4″ | 5/16″ | 0.75 | 0.10 |
XSPAA312 | 5/16″ | 3/8″ | 1.25 | 0.18 |
XSPAA375 | 3/8″ | 7/16″ | 2.00 | 0.31 |
XSPAA437 | 7/16″ | 1/2″ | 2.66 | 0.49 |
XSPAA500 | 1/2″ | 5/8″ | 3.33 | 0.74 |
XSPAA625 | 5/8″ | 3/4″ | 5.00 | 1.44 |
XSPAA750 | 3/4″ | 7/8″ | 7.00 | 2.16 |
XSPAA875 | 7/8″ | 1″ | 9.50 | 3.37 |
XSPAA100 | 1″ | 1-1/8″ | 12.50 | 5.30 |
XSPAA1125 | 1-1/8″ | 1-1/4″ | 15.00 | 7.40 |
XSPAA1250 | 1-1/4″ | 1-3/8″ | 18.00 | 9.60 |
XSPAA1375 | 1-3/8″ | 1-1/2″ | 21.00 | 13.50 |
XSPAA1500 | 1-1/2″ | 1-5/8″ | 30.00 | 17.35 |
XSPAA1750 | 1-3/4″ | 2″ | 34.00 | 27.80 |
Ultimate load is 5 times the Working Load Limit.

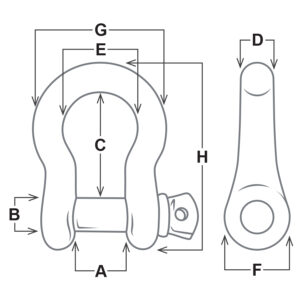

STOCK NUMBER | DIMENSIONS (IN) | |||||||
---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | G | H | |
XSPAA250 | 0.47 | 0.31 | 1.12 | 0.25 | 0.78 | 0.62 | 1.28 | 1.84 |
XSPAA312 | 0.53 | 0.38 | 1.21 | 0.31 | 0.84 | 0.76 | 1.47 | 2.09 |
XSPAA375 | 0.66 | 0.43 | 1.43 | 0.38 | 1.03 | 0.92 | 1.78 | 2.49 |
XSPAA437 | 0.75 | 0.49 | 1.68 | 0.44 | 1.16 | 1.07 | 2.03 | 2.91 |
XSPAA500 | 0.81 | 0.62 | 1.88 | 0.50 | 1.31 | 1.22 | 2.33 | 3.29 |
XSPAA625 | 1.06 | 0.75 | 2.36 | 0.63 | 1.69 | 1.57 | 2.95 | 4.16 |
XSPAA750 | 1.26 | 0.87 | 2.81 | 0.75 | 2.01 | 1.89 | 3.49 | 4.90 |
XSPAA875 | 1.46 | 0.98 | 3.33 | 0.87 | 2.28 | 2.13 | 4.00 | 5.61 |
XSPAA100 | 1.71 | 1.10 | 3.79 | 1.04 | 2.70 | 2.36 | 4.65 | 6.25 |
XSPAA1125 | 1.89 | 1.26 | 4.29 | 1.14 | 2.95 | 2.68 | 5.17 | 7.10 |
XSPAA1250 | 2.09 | 1.38 | 4.74 | 1.26 | 3.31 | 2.99 | 5.76 | 7.77 |
XSPAA1375 | 2.32 | 1.50 | 5.28 | 1.38 | 3.70 | 3.31 | 6.43 | 8.81 |
XSPAA1500 | 2.44 | 1.65 | 5.85 | 1.50 | 3.90 | 3.62 | 6.56 | 9.60 |
XSPAA1750 | 2.88 | 2.00 | 7.00 | 2.25 | 5.00 | 4.19 | 8.86 | 12.34 |
