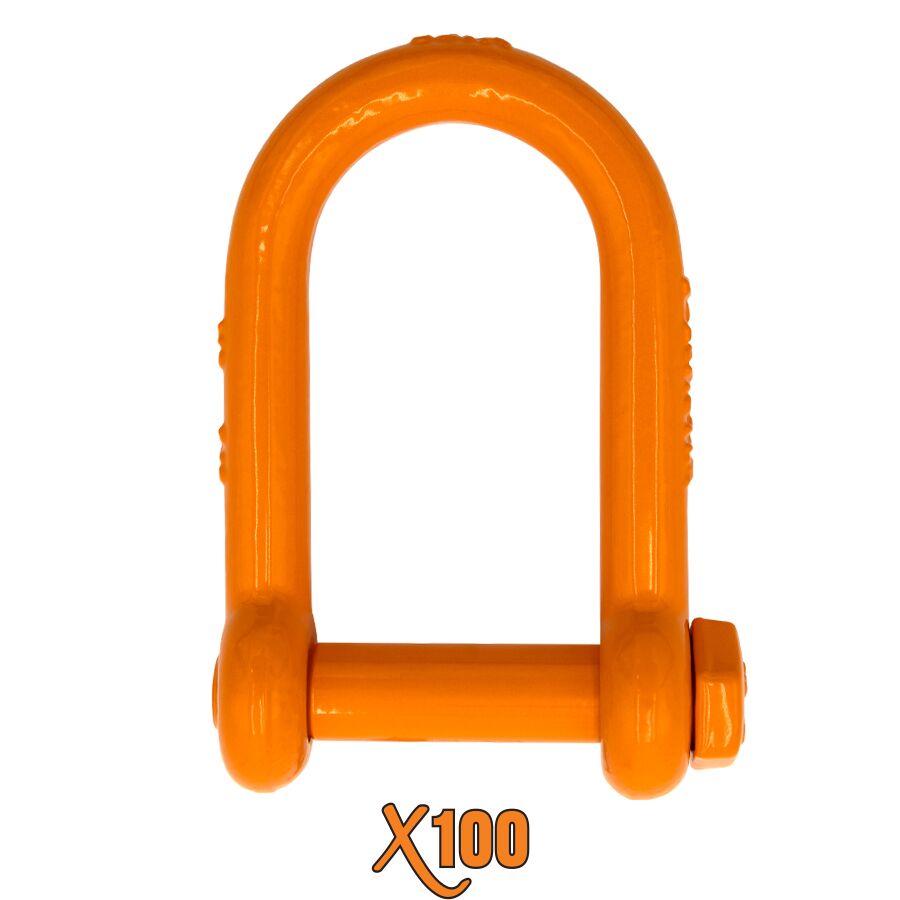

X100® All Alloy Screw Pin Long Reach Shackle
APPROVED FOR OVERHEAD LIFTING
-
Approved for Overhead Lifting
-
Meets ASME B30.26 Requirements
-
100% Forged Alloy Steel
-
Design Factor of 5:1
-
Markings: X100 Brand, Size, Working Load Limit, Traceability
-
Extended Bow: Designed for lifting applications that require an extended reach to connect to pick points
-
Easily recognizable X100 BLAZE ORANGE Powder Coated which provides protection from corrosion, and enables full exposure of identification markings
-
Hot Dip Galvanized prior to BLAZE ORANGE Powder Coating provides superior corrosion resistance
-
Load should be evenly distributed over entire pin
-
To achieve full Working Load Limit, 80% minimum pin coverage is required
-
Long Reach Shackles should not be side loaded or point loaded
| STOCK NUMBER | SIZE | PIN DIAMETER | WORKING LOAD LIMIT (TONS) | WEIGHT/PIECE (LBS.) | QTY/BOX |
|---|---|---|---|---|---|
| XLRSP625 | 5/8″ | 0.75″ | 3-1/2 | 2 | 20 |
| XLRSP750 | 3/4″ | 0.88″ | 5 | 3.2 | 10 |
| XLRSP100 | 1″ | 1.00″ | 9-1/2 | 6.2 | 6 |
| XLRSP1250 | 1-1/4″ | 1.38″ | 14 | 12 | 4 |
| XLRSP1500 | 1-1/2″ | 1.50″ | 17 | 19.2 | 2 |
| XLRSP1750 | 1-3/4″ | 2.00″ | 25 | 30.4 | 1 |
Ultimate load is 5 times the Working Load Limit.
| STOCK NUMBER | DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| XLRSP625 | 0.75″ | 0.63″ | 4.00″ | 2.25″ | 3.55″ | 1.06″ | 0.35″ | 1.58″ |
| XLRSP750 | 0.88″ | 0.75″ | 5.00″ | 2.75″ | 4.25″ | 1.25″ | 0.39″ | 1.81″ |
| XLRSP100 | 1.00″ | 1.00″ | 5.50″ | 3.25″ | 5.25″ | 1.37″ | 0.47″ | 2.38″ |
| XLRSP1250 | 1.38″ | 1.25″ | 6.25″ | 3.88″ | 6.37″ | 1.94″ | 0.59″ | 3.06″ |
| XLRSP1500 | 1.50″ | 1.50″ | 7.00″ | 4.50″ | 7.48″ | 2.16″ | 0.66″ | 3.50″ |
| XLRSP1750 | 2.00″ | 1.75″ | 8.00″ | 5.25″ | 8.75″ | 2.70″ | 0.80″ | 4.00″ |
