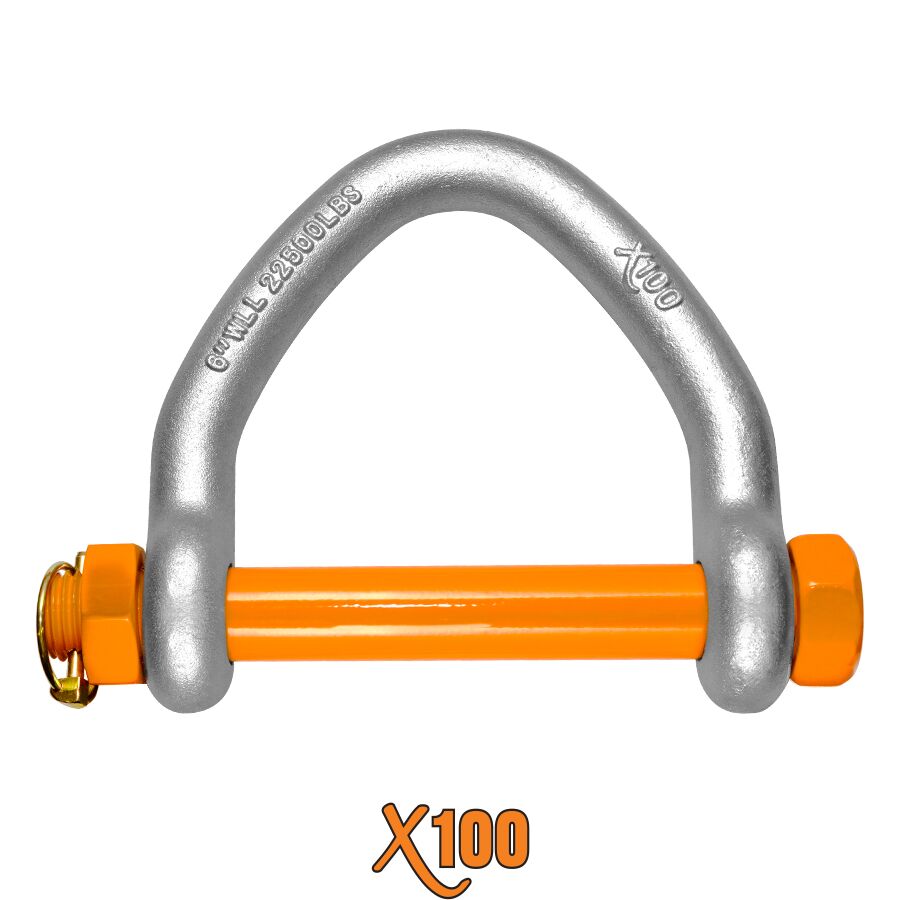

X100® Bolt Type Web Shackle
APPROVED FOR OVERHEAD LIFTING
- Approved for Overhead Lifting
- 100% Forged Alloy Steel
- Quenched & Tempered
- Markings: X100 Brand, Web Size, Working Load Limit
- Hot Dip Galvanized Body and Power Coated BLAZE ORANGE Pin
- Load Should Be Evenly Distributed Over Entire Pin
- To Achieve Full Working Load Limit, 80% Minimum Pin Coverage is Required
- Web Sling Shackles Should Not Be Side Loaded or Point Loaded
| STOCK NUMBER | WEB SIZE | PIN DIAMETER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) | QTY/BOX |
|---|---|---|---|---|---|
| XWSB3I | 3″ | 0.88″ | 13,500 | 3.0 | 10 |
| XWSB4I | 4″ | 0.87″ | 14,500 | 3.8 | 10 |
| XWSB5I | 5″ | 1.01″ | 19,000 | 6.2 | 8 |
| XWSB6I | 6″ | 1.25″ | 22,500 | 10.4 | 4 |
Ultimate load is 5 times the Working Load Limit.
