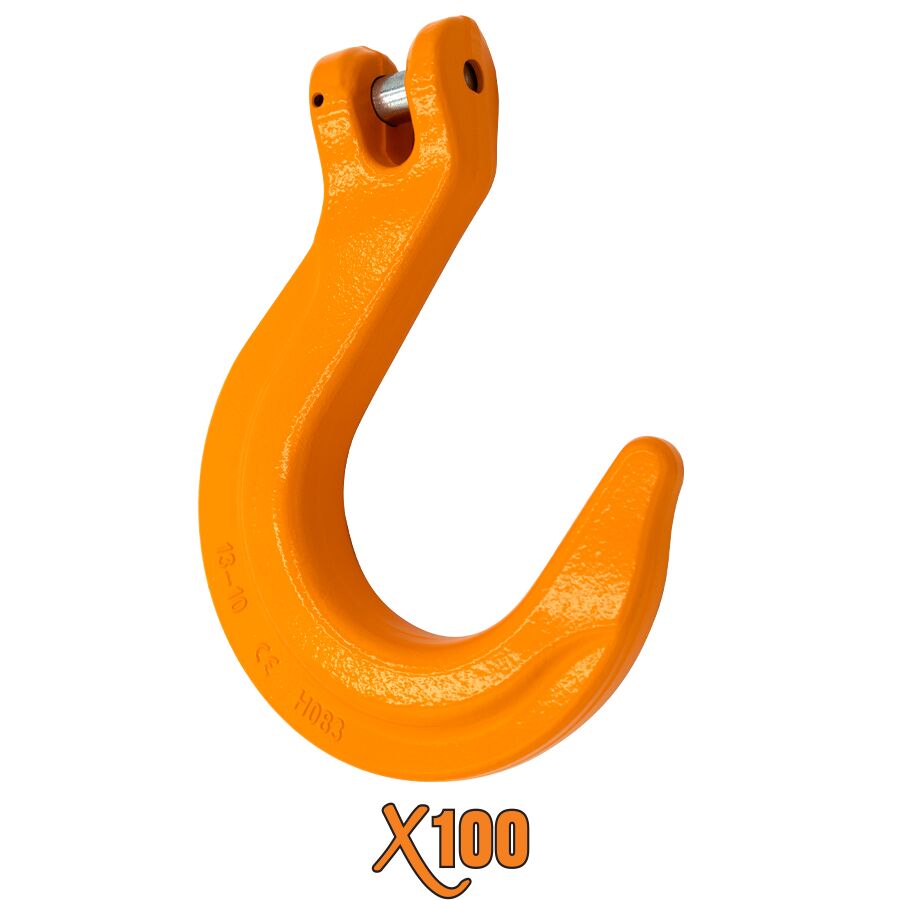

X100® Clevis Foundry Hook
FOUNDRY HOOKS CLEVIS TYPE
APPROVED FOR OVERHEAD LIFTING
- Approved for Overhead Lifting
- 100% Forged Alloy Steel
- Quenched and Tempered
- Powder Coated HI-VIZ Safety Orange
- 100% Proof Tested at 2.5 times the Working Load Limit
- 100% Mag-Particle Crack Detection
- Embossed Markings: X100 Brand, Size, Working Load Limit,
Conformity, Traceability
| STOCK NUMBER | SIZE | DIMENSIONS (IN) | WORKING LOAD LIMIT AT TIP (LBS.) | WORKING LOAD LIMIT AT BOWL (LBS.) | WEIGHT (LBS.) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||||
| XCF281-312 | – | – | – | – | – | – | – | – | – | 2.00 |
| XCF375 | 3/8” | 2.850 | 5.950 | 5.380 | 1.230 | 0.980 | 2.050 | 4,400 | 8,800 | 4.30 |
| XCF500 | 1/2” | 3.500 | 7.220 | 6.650 | 1.630 | 1.350 | 2.380 | 7,500 | 15,000 | 8.00 |
| XCF625 | 5/8” | 4.300 | 8.560 | 7.810 | 2.020 | 1.590 | 3.040 | 11,300 | 22,600 | 14.20 |
