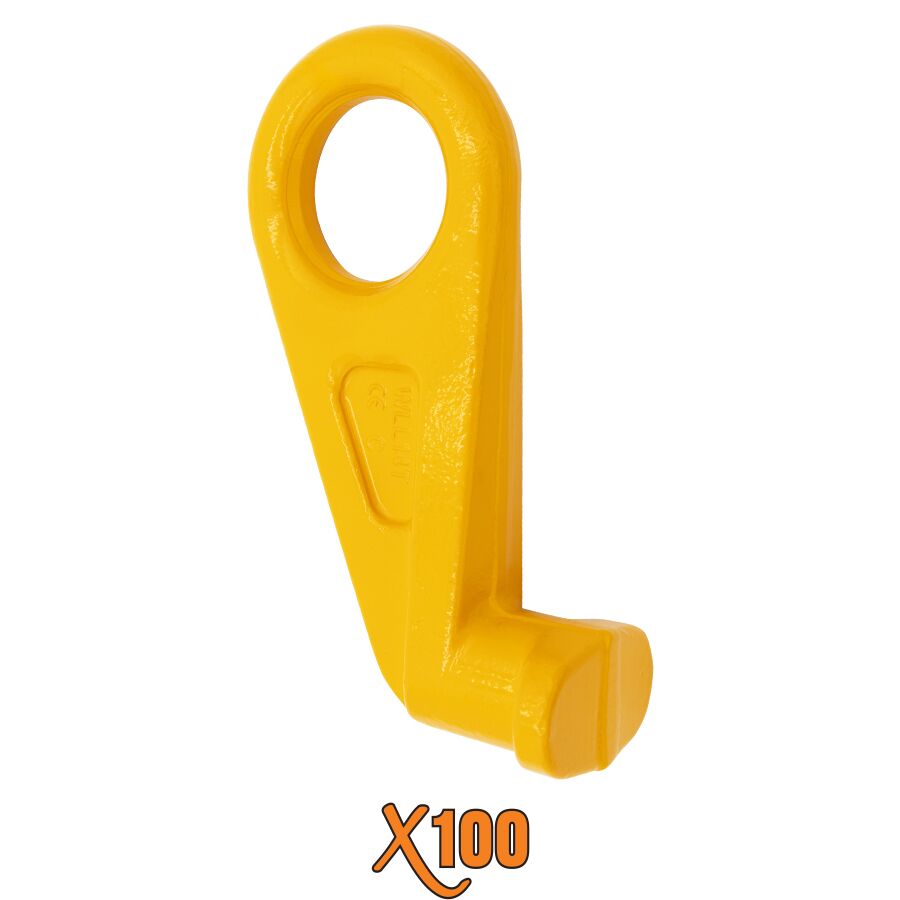

APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
| STOCK NUMBER | DEGREE | DIRECTION | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) |
| G80CHL | 45˚ | Left | 28,000 | 8.5 |
| G80CHR | 45˚ | Right | 28,000 | 8.5 |
| G80CHC | – | Straight | 28,000 | 8.5 |

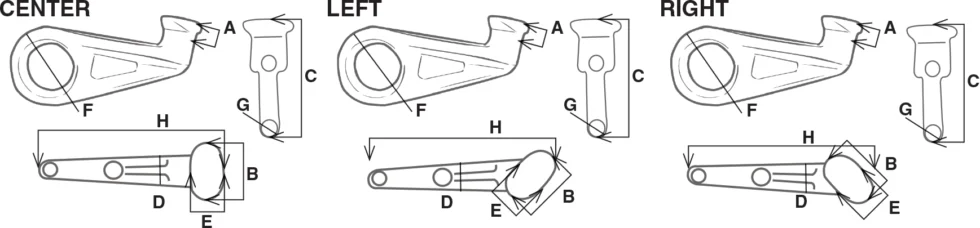

| LEFT A | LEFT B | LEFT C | LEFT D | LEFT E | LEFT F | LEFT G | LEFT H |
| 1.81” | 2.95” | 6.54” | 0.98” | 1.89” | 2.76” | 0.98″ | 10.43″ |
| RIGHT A | RIGHT B | RIGHT C | RIGHT D | RIGHT E | RIGHT F | RIGHT G | RIGHT H |
| 1.81” | 2.95” | 6.54” | 0.98” | 1.89” | 2.76” | 0.98″ | 10.43″ |
| STRAIGHT A | STRAIGHT B | STRAIGHT C | STRAIGHT D | STRAIGHT E | STRAIGHT F | STRAIGHT G | STRAIGHT H |
| 1.81” | 2.95” | 6.54” | 0.98” | 1.89” | 2.76” | 0.98″ | 10.43″ |
| STOCK NUMBER | LEFT A | LEFT B | LEFT C | LEFT D | LEFT E | LEFT F | LEFT G | LEFT H |
| G80CHL | 1.81” | 2.95” | 6.54” | 0.98” | 1.89” | 2.76” | 0.98″ | 10.43″ |
| STOCK NUMBER | RIGHT A | RIGHT B | RIGHT C | RIGHT D | RIGHT E | RIGHT F | RIGHT G | RIGHT H |
| G80CHR | 1.81” | 2.95” | 6.54” | 0.98” | 1.89” | 2.76” | 0.98″ | 10.43″ |
| STOCK NUMBER | STRAIGHT A | STRAIGHT B | STRAIGHT C | STRAIGHT D | STRAIGHT E | STRAIGHT F | STRAIGHT G | STRAIGHT H |
| G80CHC | 1.81” | 2.95” | 6.54” | 0.98” | 1.89” | 2.76” | 0.98″ | 10.43″ |
