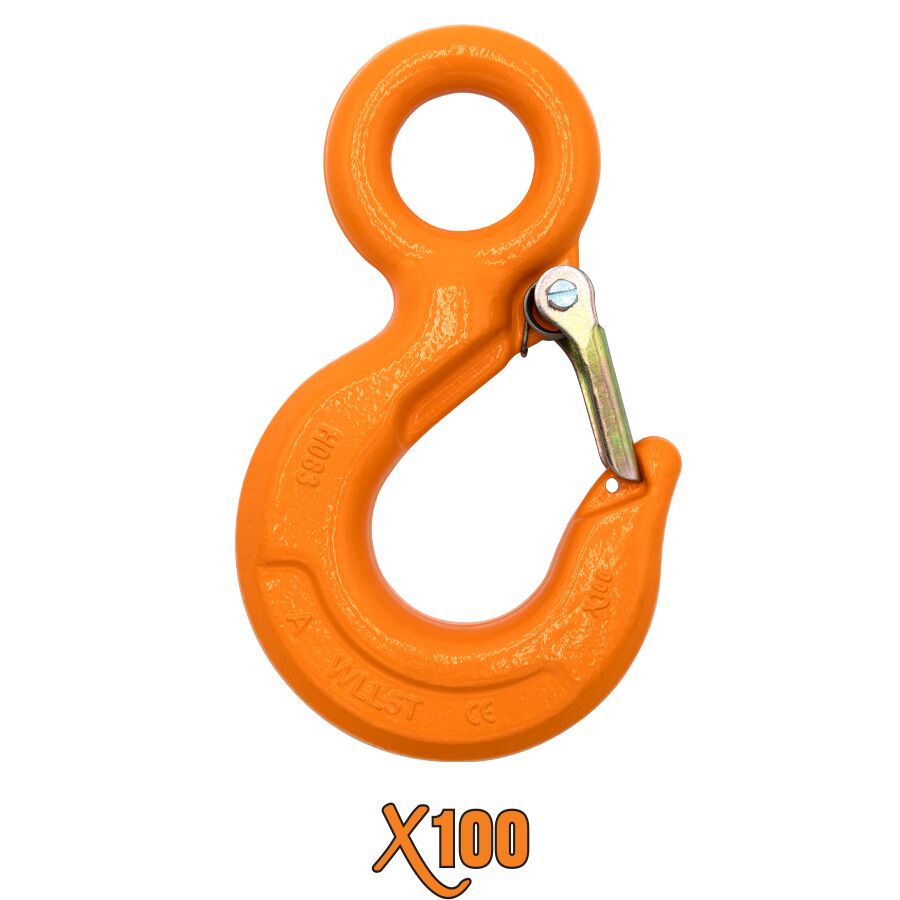

X100® Fixed Eye Hoist Hooks with Latch
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
- Uses Interchangeable Latch Kits
| STOCK NUMBER | WORKING LOAD LIMIT (TON) | WEIGHT/PIECE (LBS) | COMPATIBLE LATCH |
|---|---|---|---|
| XEHH100 | 1 | 0.75 | LK6325 |
| XEHH150 | 1.5 | 0.90 | LK6374 |
| XEHH200 | 2 | 1.5 | LK6421 |
| XEHH300 | 3 | 2.1 | LK6468 |
| XEHH500 | 5 | 4.3 | LK6515 |
| XEHH700 | 7 | 8.3 | LK6562 |
| XEHH1100 | 11 | 15.0 | LK6609 |
| XEHH1500 | 15 | 21.6 | LK6657 |
| XEHH2200 | 22 | 36.5 | LK22TONA |
| XEHH3000 | 30 | 60.5 | – |
Ultimate load is 5 times the Working Load Limit. Replacement Latch Kits available.

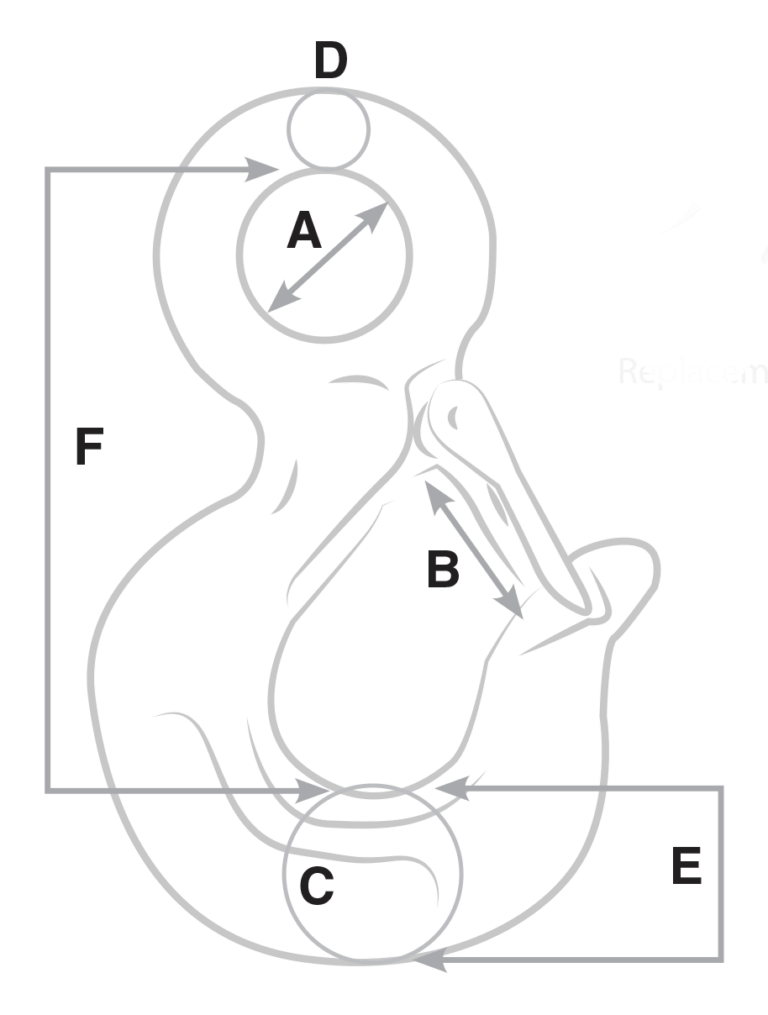

| STOCK NUMBER | DIMENSIONS (IN) | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| XEHH100 | 0.74 | 0.85 | 0.64 | 0.37 | 0.78 | 3.31 |
| XEHH150 | 0.85 | 0.88 | 0.72 | 0.46 | 0.97 | 3.64 |
| XEHH200 | 1.09 | 1.00 | 0.92 | 0.53 | 1.07 | 3.98 |
| XEHH300 | 1.205 | 1.07 | 1.00 | 0.70 | 1.33 | 4.56 |
| XEHH500 | 1.53 | 1.46 | 1.35 | 0.80 | 1.45 | 5.73 |
| XEHH700 | 2.00 | 1.67 | 1.64 | 0.99 | 1.81 | 7.10 |
| XEHH1100 | 2.43 | 2.12 | 1.95 | 1.17 | 2.26 | 8.89 |
| XEHH1500 | 2.82 | 2.25 | 2.12 | 1.30 | 2.64 | 10.2 |
| XEHH2200 | 3.50 | 2.98 | 2.74 | 1.63 | 2.96 | 12.4 |
| XEHH3000 | 3.59 | 3.46 | 3.19 | 1.90 | 3.85 | 13.9 |
