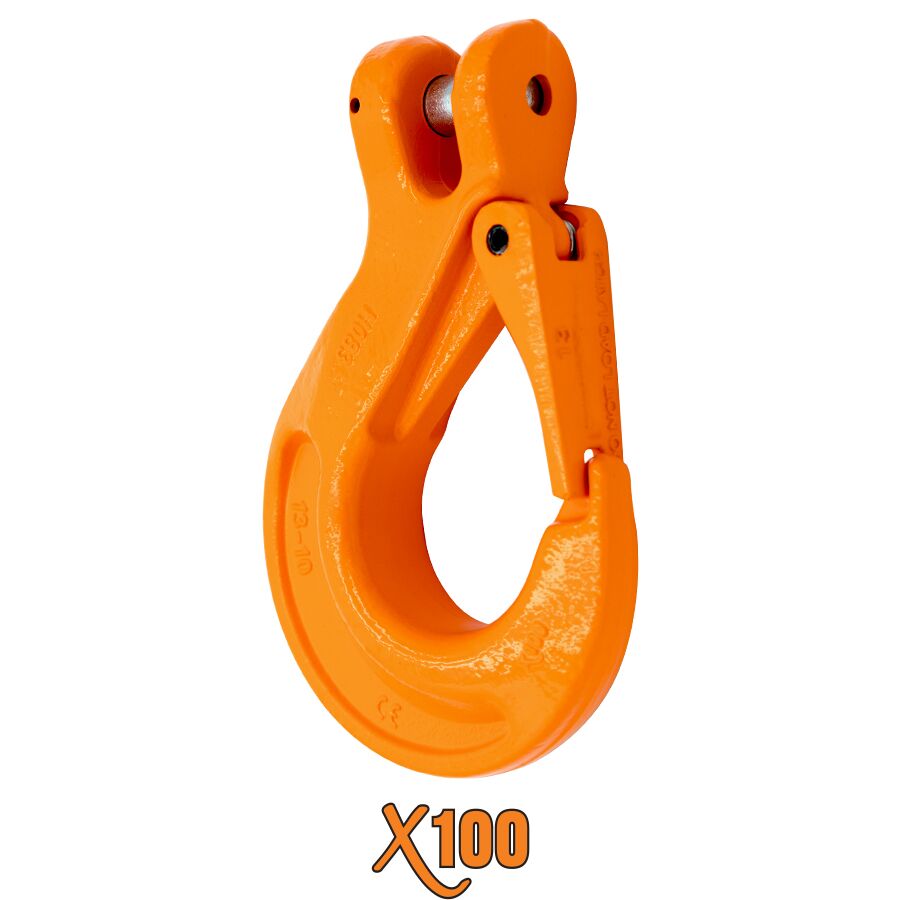

X100® Grade 100 Clevis Sling Hook with Latch
- OSHA compliant for overhead lifting
- Forged Latch Kit (up to ½” Size)
- Forged alloy steel
- Quenched & tempered
- 25% stronger than Grade 80
- Plasticized powder coated orange gloss finish
- All load pins are 100% individually inspected
- 100% proof tested at 2 times the working load limit
- 100% magnaflux crack detection
- Cast latch (5/8 and above)
| STOCK NUMBER | SIZE | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|---|
| XCS281 | 9/32″ | 4,300 | 1.6 | 0.37” | 1.46” | 0.98” | 1.08” | 3.46” | 5.28” |
| XCS312 | 5/16″ | 5,700 | 1.6 | 0.37” | 1.46” | 0.98” | 1.08” | 3.46” | 5.28” |
| XCS375 | 3/8″ | 8,800 | 3.1 | 0.47” | 1.89” | 1.10” | 1.32” | 4.15” | 6.36” |
| XCS500 | 1/2” | 15,000 | 5.4 | 0.59” | 2.32” | 1.10” | 1.65” | 5.28” | 7.99” |
| XCS625 | 5/8” | 22,600 | 8.0 | 0.69” | 2.76” | 1.73” | 1.97” | 6.32” | 9.76” |
| XCS750 | 3/4” | 35,300 | 16.1 | .98″ | 3.34″ | 1.98″ | 2.36″ | 7.40″ | 11.45″ |
| STOCK NUMBER | DIMENSIONS | WEIGHT (LBS.) | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| XCS281-312 | 0.37” | 1.46” | 0.98” | 1.08” | 3.46” | 5.28” | 1.6 |
| XCS375 | 0.47” | 1.89” | 1.10” | 1.32” | 4.15” | 6.36” | 3.1 |
| XCS500 | 0.59” | 2.32” | 1.10” | 1.65” | 5.28” | 7.99” | 5.4 |
| XCS625 | 0.69” | 2.76” | 1.73” | 1.97” | 6.32” | 9.76” | 8.0 |
| XCS750 | 0.98” | 3.34” | 1.98” | 2.36” | 7.40” | 11.45” | 16.1 |
