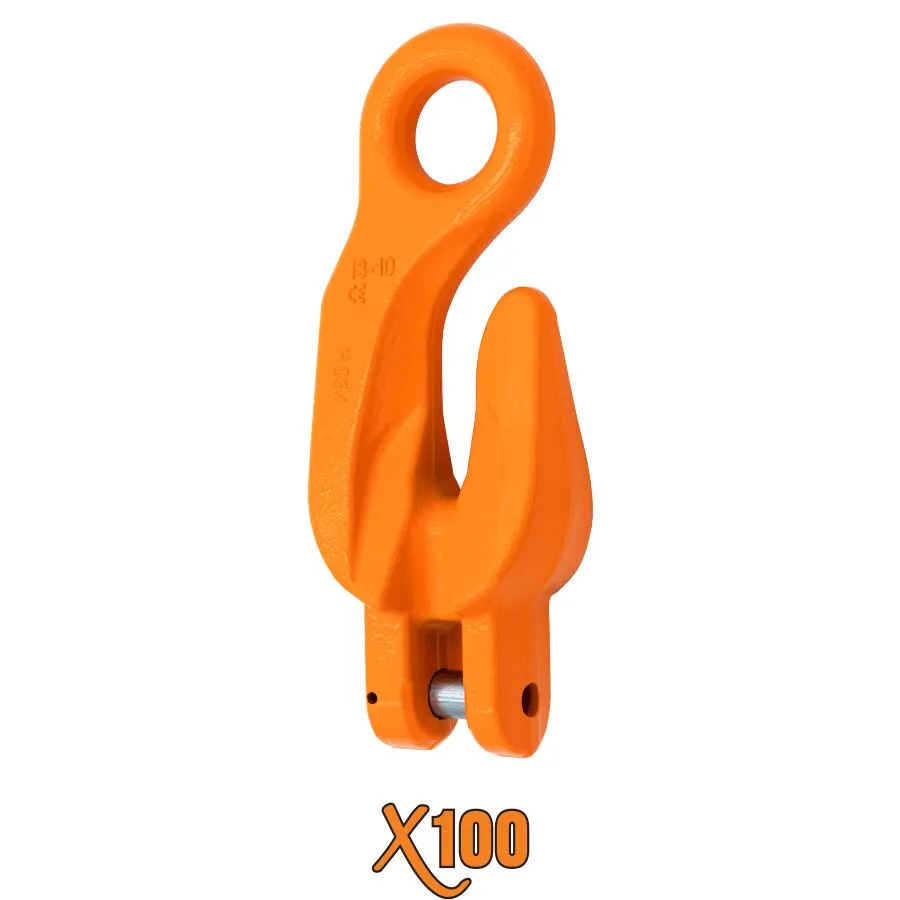

X100® Grade 100 Eye Grab Adjuster Hook
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- All load pins are 100% individually inspected
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT | WEIGHT (LBS.) | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||
| XEG281-312ADJ | 9/32” – 5/16″ | 0.94” | 0.36” | 1.42” | 0.39” | 4.57” | 5.17” | 5,700 lbs. | 1.6 |
| XEG375ADJ | 3/8″ | 1.18” | 0.49” | 1.89” | 0.49” | 5.71” | 7.30” | 8,800 lbs. | 3.0 |
| XEG500ADJ | 1/2” | 1.42” | 0.63” | 2.34” | 0.61” | 7.01” | 8.78” | 15,000 lbs. | 5.25 |
| XEG625ADJ | 5/8″ | 1.77” | 0.75” | 2.76” | 0.75” | 8.50” | 10.75” | 22,600 lbs. | 10.0 |
| XEG750ADJ | 3/4″ | 2.20” | 1.01” | 3.56” | 1.38” | 11.24” | 13.82” | 35,300 lbs. | 20.1 |
| STOCK NUMBER | DIMENSIONS | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| XEG281-312ADJ | 0.94” | 0.36” | 1.42” | 0.39” | 4.57” | 5.17” |
| XEG375ADJ | 1.18” | 0.49” | 1.89” | 0.49” | 5.71” | 7.30” |
| XEG500ADJ | 1.42” | 0.63” | 2.34” | 0.61” | 7.01” | 8.78” |
| XEG625ADJ | 1.77” | 0.75” | 2.76” | 0.75” | 8.50” | 10.75″ |
| XEG750ADJ | 2.20” | 1.01” | 3.56” | 1.38” | 11.24” | 13.82” |
