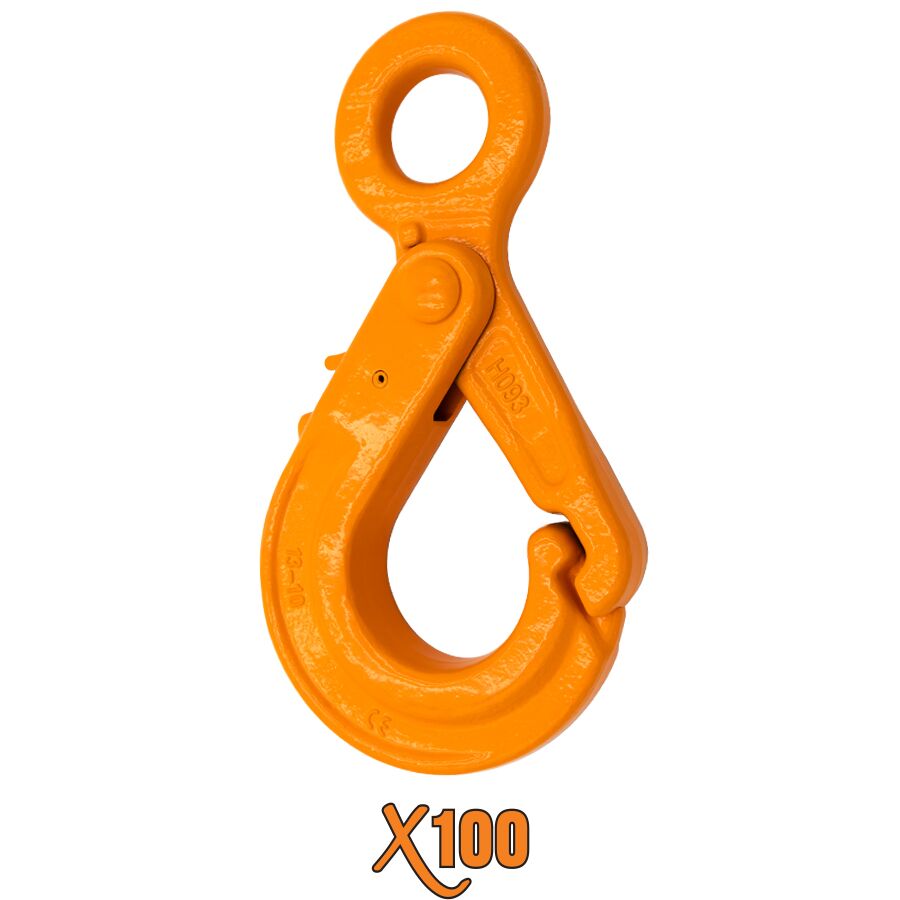

X100® Grade 100 Eye Self Locking Hook
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
- Replacement Trigger Kits available
- OSHA compliant traceable “X100” marking in raised lettering

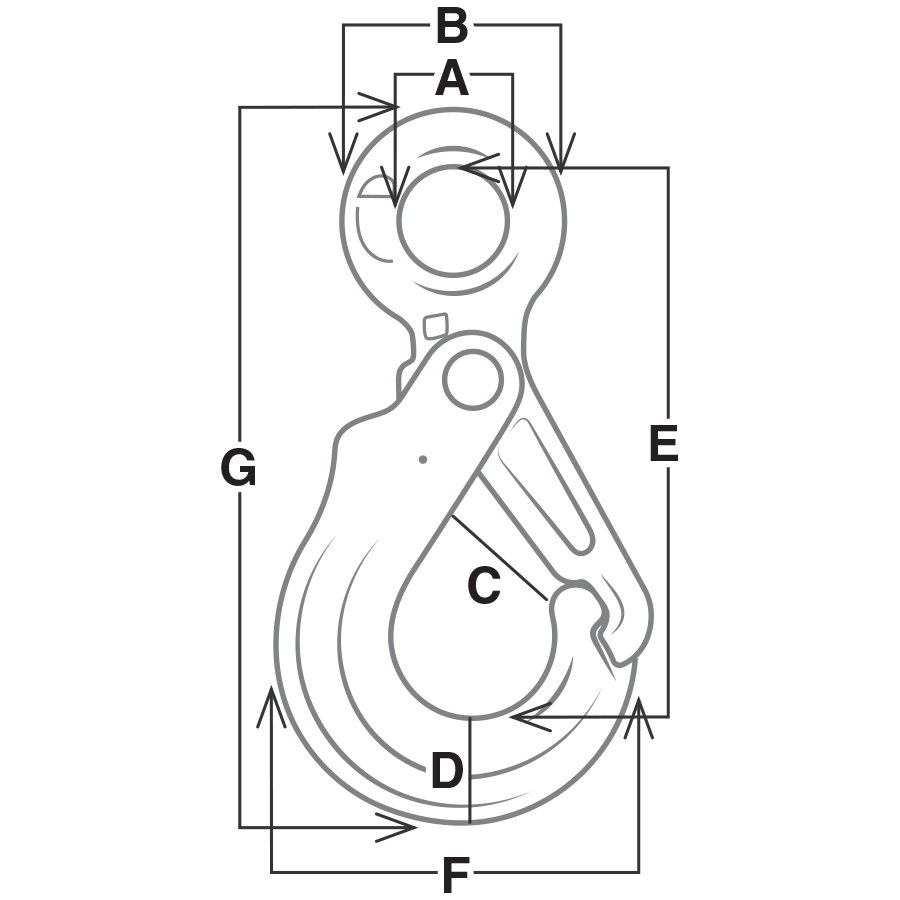

| STOCK NUMBER | SIZE | A | B | C | D | E | F | G | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) |
|---|---|---|---|---|---|---|---|---|---|---|
| XESL281 | 9/32″ | 0.87” | 1.73” | 1.18” | 0.83” | 4.52” | 2.95” | 5.87” | 4,300 | 2.0 |
| XESL312 | 5/16” | 1.06” | 2.01” | 1.51” | 0.91” | 5.26” | 3.70” | 6.70” | 5,700 | 2.0 |
| XESL375 | 3/8″ | 1.36” | 2.53” | 1.90” | 1.18” | 6.45” | 4.42” | 8.37” | 8,800 | 3.4 |
| XESL500 | 1/2” | 1.57” | 3.15” | 2.04” | 1.59” | 8.00” | 5.33” | 10.30” | 15,000 | 6.05 |
| XESL625 | 5/8” | 1.97” | 4.09” | 2.71” | 1.84” | 9.70” | 6.50” | 12.60” | 22,600 | 12.6 |
| STOCK NUMBER | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XESL281 | 0.87” | 1.73” | 1.18” | 0.83” | 4.52” | 2.95” | 5.87” |
| XESL312 | 1.06” | 2.01” | 1.51” | 0.91” | 5.26” | 3.70” | 6.70” |
| XESL375 | 1.36” | 2.53” | 1.90” | 1.18” | 6.45” | 4.42” | 8.37” |
| XESL500 | 1.57” | 3.15” | 2.04” | 1.59” | 8.00” | 5.33” | 10.30” |
| XESL625 | 1.97” | 4.09” | 2.71” | 1.84” | 9.70” | 6.50” | 12.60” |

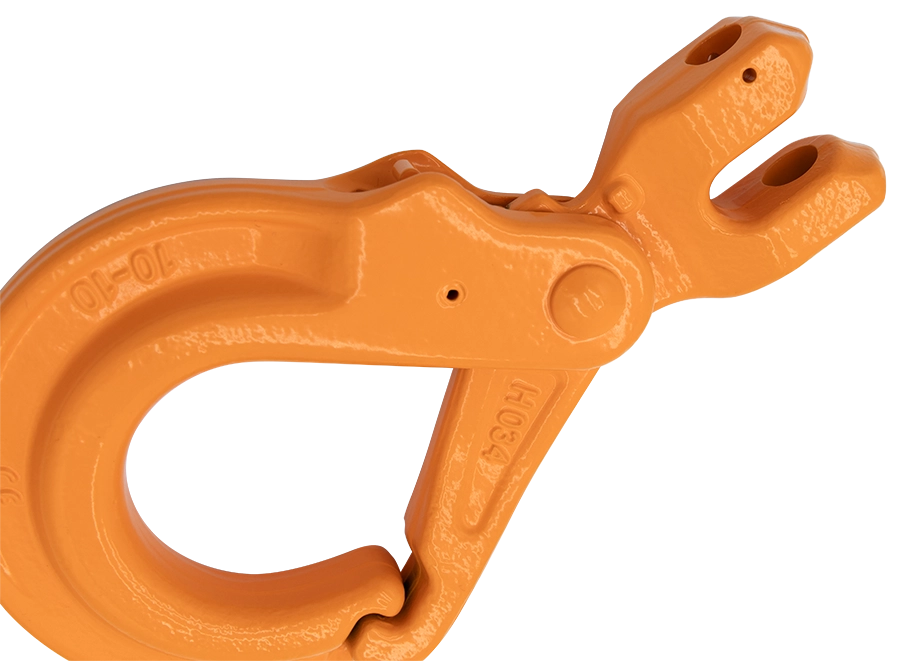

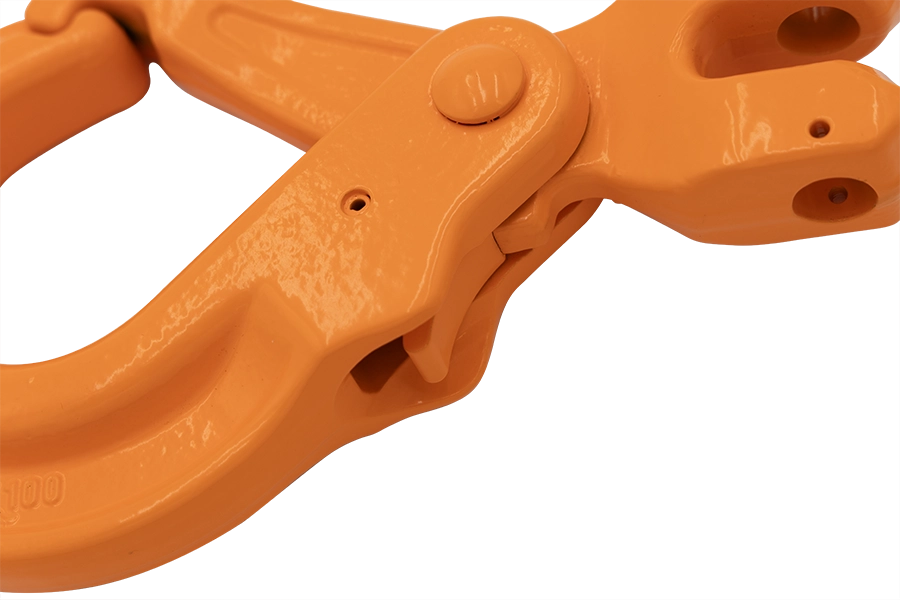

- Notched tip to help avoid hook damage
- Forged directly into the hook
- Incorporated into all X100 self-locking hooks
