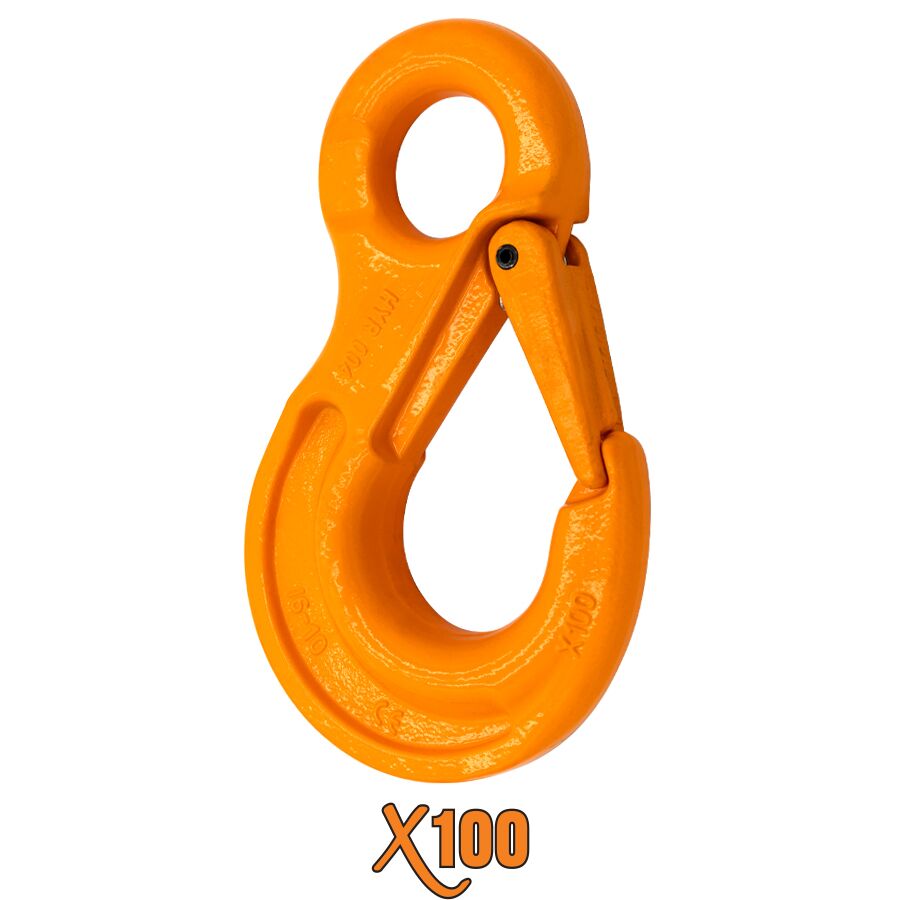

X100® Grade 100 Eye Sling Hook With Latch
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
- Forged Latch Kit (up to ½” Size)
- Cast latch (5/8 and above)
| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| XES281 | 9/32” | 0.39” | 0.93” | 0.87” | 0.83” | 0.92” | 4,300 | 1.65 |
| XES312 | 5/16” | 0.43” | 0.98” | 1.08” | 4.45” | 0.98” | 5,700 | 1.65 |
| XES375 | 3/8″ | 0.58” | 1.16” | 1.08” | 6.17” | 1.22” | 8,800 | 2.7 |
| XES500 | 1/2” | 0.78” | 1.65” | 1.47” | 6.31” | 1.50” | 15,000 | 5.0 |
| XES625 | 5/8” | 0.96” | 1.78” | 2.30” | 7.90” | 2.00” | 22,600 | 7.8 |
| STOCK NUMBER | DIMENSIONS | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| XES281 | 0.39” | 0.93” | 0.87” | 0.83” | 0.92” |
| XES312 | 0.43” | 0.98” | 1.08” | 4.45” | 0.98” |
| XES375 | 0.58” | 1.16” | 1.08” | 6.17” | 1.22” |
| XES500 | 0.78” | 1.65” | 1.47” | 6.31” | 1.50” |
| XES625 | 0.96” | 1.78” | 2.30” | 7.90” | 2.00” |
| XES750 | 1.08” | 1.97” | 2.30” | 7.90” | 2.13” |
