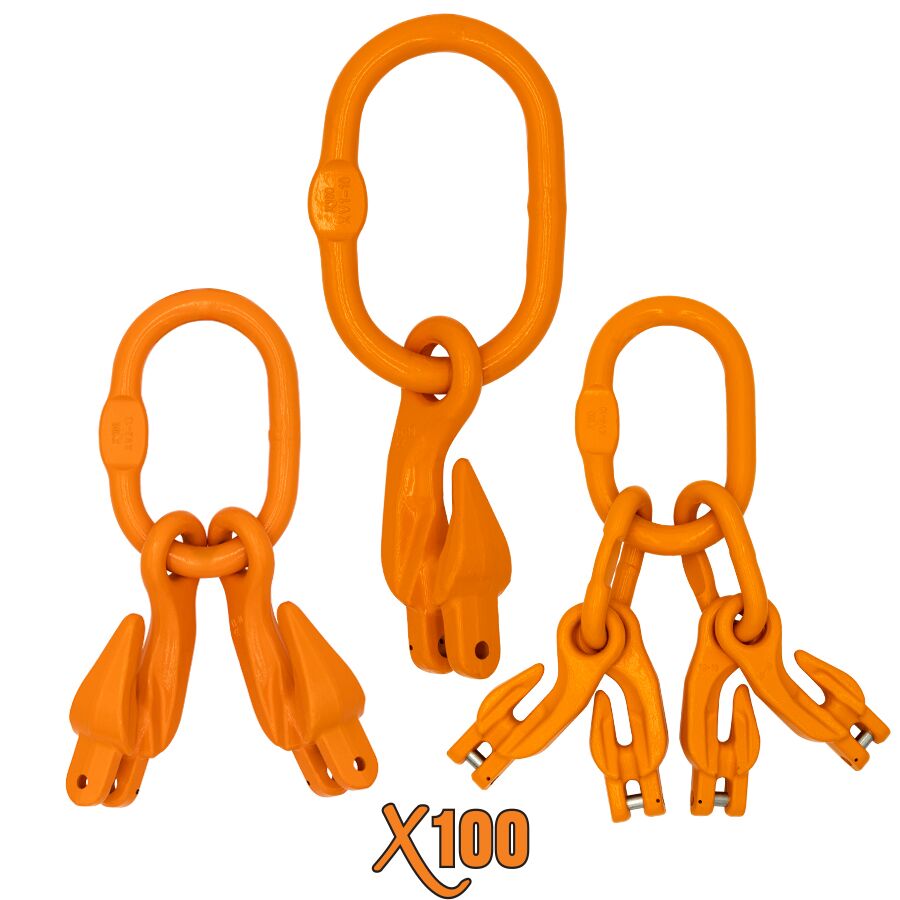

X100® Grade 100 Master Link With Adjusters
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection

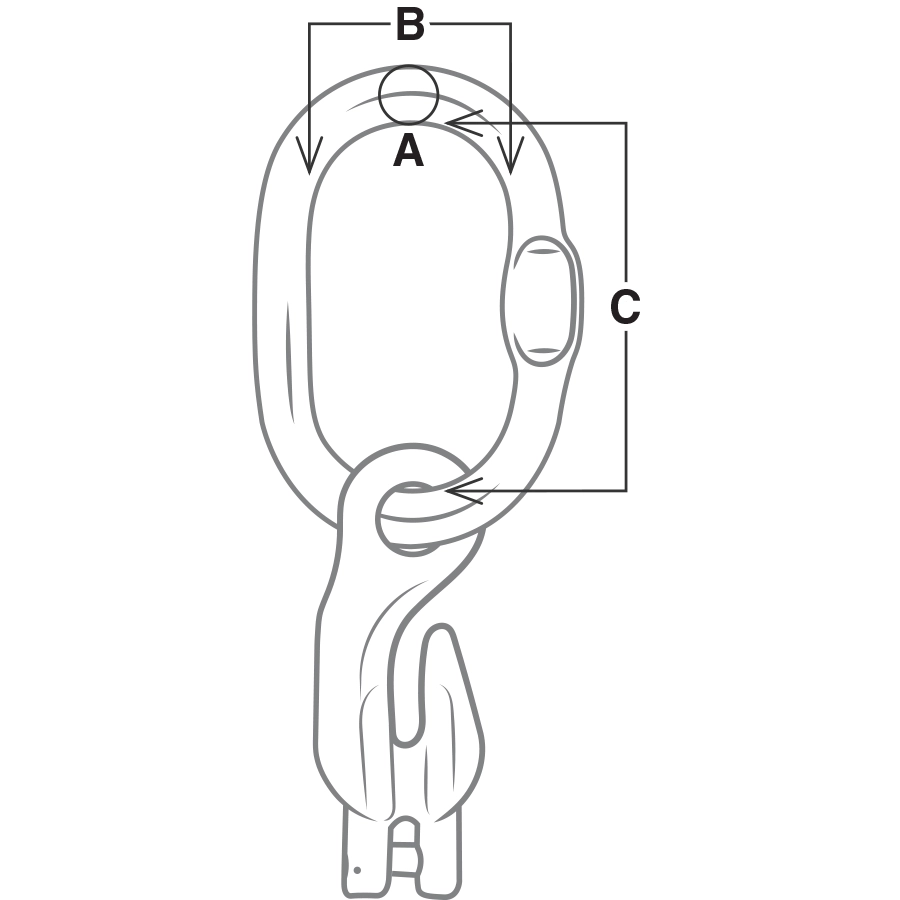

FOR SINGLE LEG CHAIN SLINGS
STOCK NUMBER | CHAIN SIZE | DIMENSIONS | WORKING LOAD LIMIT 4:1 (LBS.) |
||
---|---|---|---|---|---|
A | B | C | |||
XV1-7/8i | 9/32”-5/16” | 0.551” | 2.75” | 4.72” | 5,700 |
XV1-10i | 3/8″ | 0.669” | 3.15” | 5.51” | 8,800 |
XV1-13i | 1/2″ | 0.866” | 3.74” | 6.29” | 15,000 |
XV1-16i | 5/8″ | 0.984” | 4.33” | 7.48” | 22,600 |
NOT TO BE USED FOR BASKET APPLICATION.

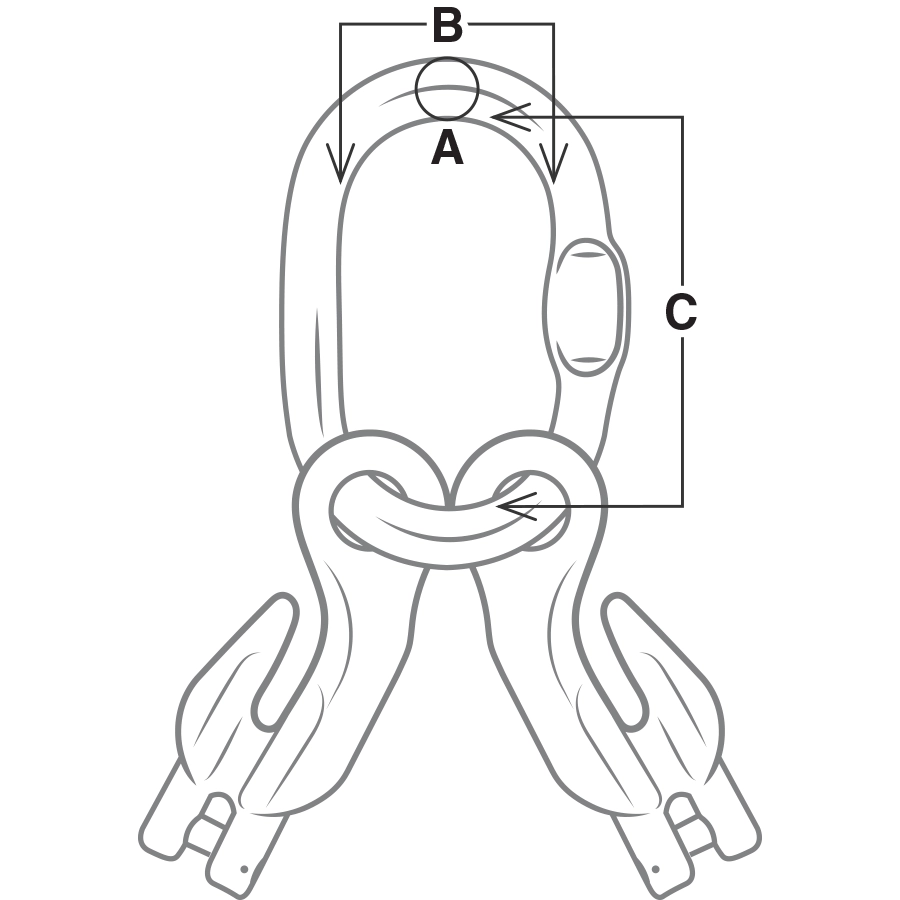

FOR DOUBLE LEG CHAIN SLINGS
STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT 4:1 (LBS.) |
||
---|---|---|---|---|---|
A | B | C | |||
XV2-7/8i | 9/32”-5/16” | 0.669” | 3.15” | 5.15” | 9,900 |
XV2-10i | 3/8″ | 0.866” | 3.74” | 6.29” | 15200 |
XV2-13i | 1/2″ | 0.984” | 4.33” | 7.48” | 26000 |
XV2-16i | 5/8″ | 1.26” | 5.11” | 9.05” | 39100 |

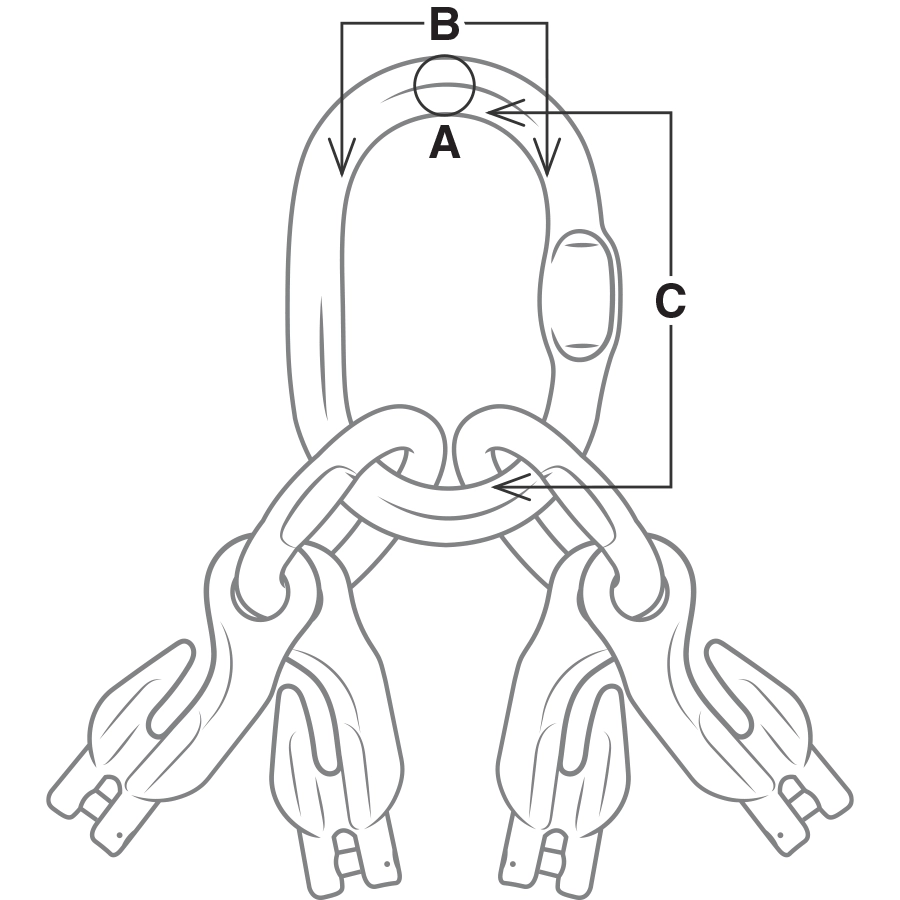

FOR TRIPLE AND QUADRUPLE LEG CHAIN SLINGS
STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT 4:1 (LBS.) |
||
---|---|---|---|---|---|
A | B | C | |||
XV4-7/8i | 9/32”-5/16” | 0.669” | 3.15” | 5.51” | 14,800 |
XV4-10i | 3/8″ | 0.866” | 3.74” | 6.29” | 22,900 |
XV4-13i | 1/2″ | 0.984” | 4.33” | 7.48” | 39,000 |
XV4-16i | 5/8″ | 1.26” | 5.11” | 9.05” | 58,700 |
NOT TO BE USED FOR BASKET APPLICATION.
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
STOCK NUMBER | DIMENSIONS | ||
---|---|---|---|
A | B | C | |
XV1-7/8i | 0.551” | 2.75” | 4.72” |
XV1-10i | 0.669” | 3.15” | 5.51” |
XV1-13i | 0.866” | 3.74” | 6.29” |
XV1-16i | 0.984” | 4.33” | 7.48” |
STOCK NUMBER | DIMENSIONS | ||
---|---|---|---|
A | B | C | |
XV2-7/8i | 0.669” | 3.15” | 5.15” |
XV2-10i | 0.866” | 3.74” | 6.29” |
XV2-13i | 0.984” | 4.33” | 7.48” |
XV2-16i | 1.26” | 5.11” | 9.05” |
STOCK NUMBER | DIMENSIONS | ||
---|---|---|---|
A | B | C | |
XV4-7/8i | 0.669” | 3.15” | 5.15” |
XV4-10i | 0.866” | 3.74” | 6.29” |
XV4-13i | 0.984″ | 4.33” | 7.8” |
XV4-16i | 1.26” | 5.11” | 9.05” |
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
