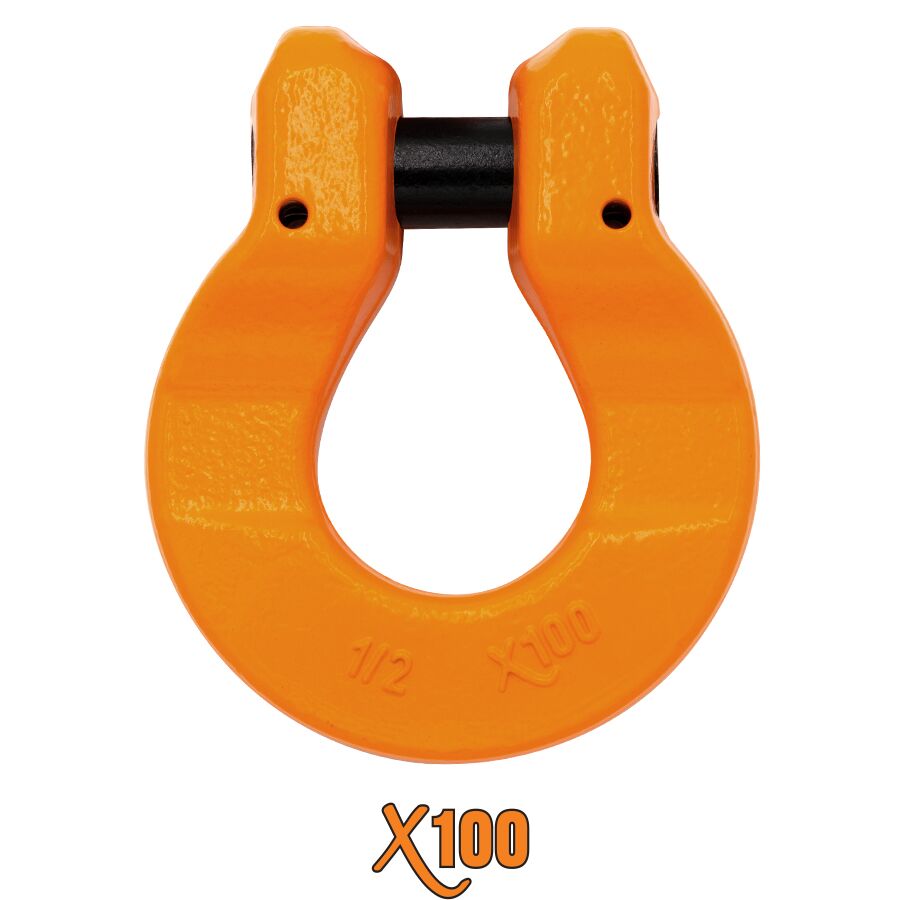

X100® Grade 100 Omega Link
APPROVED FOR OVERHEAD LIFTING
- OSHA compliant for overhead lifting
- Forged alloy steel
- Quenched & tempered
- 25% stronger than Grade 80 chain
- Plasticized powder coated orange gloss finish
- All load pins are 100% individually inspected and tested
- 100% proof tested at 2 times the working load limit
- 100% magnaflux crack detection

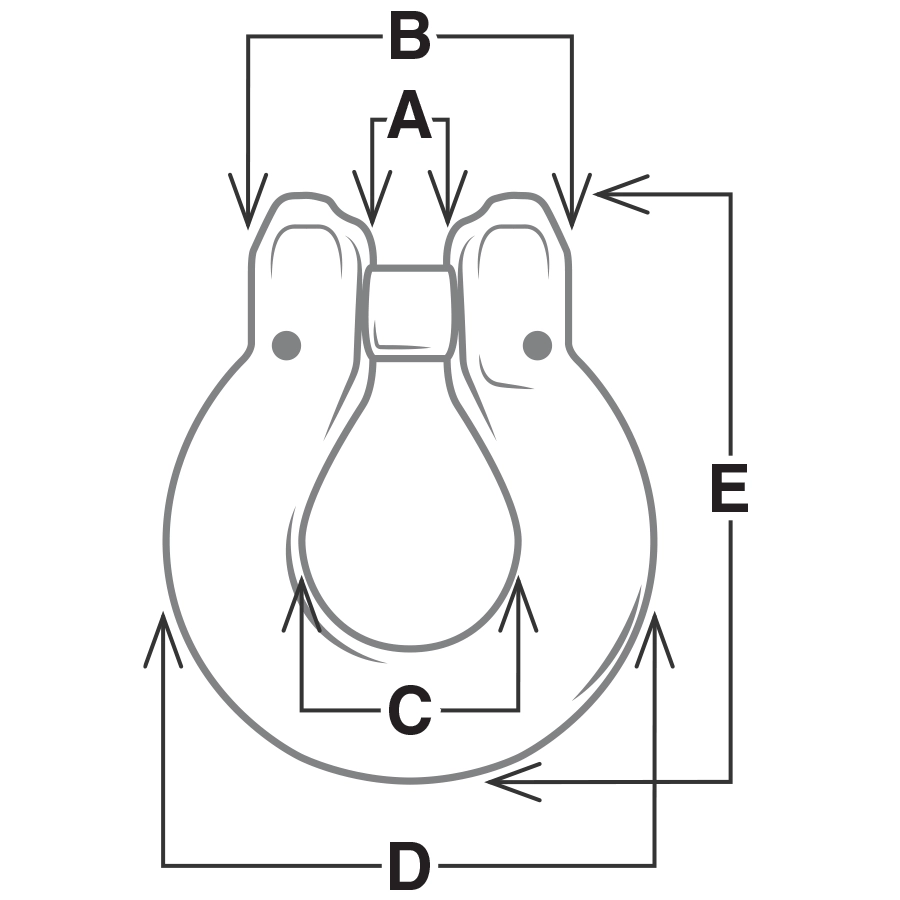

| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| XOL281-312 | 9/32″ – 5/16” | 0.41” | 1.65” | 0.94” | 2.36” | 2.89” | 5,700 | 0.5 |
| XOL375 | 3/8″ | 0.49” | 1.91” | 1.22” | 2.76” | 3.54” | 8,800 | 0.85 |
| XOL500 | 1/2” | 0.63” | 2.36” | 1.52” | 3.54” | 4.29” | 15,000 | 1.6 |
| XOL625 | 5/8” | 0.75” | 2.97” | 2.01” | 4.41” | 5.57” | 22,600 | 2.9 |
| STOCK NUMBER | DIMENSIONS | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| XOL281-312 | 0.41” | 1.65” | 0.94” | 2.36” | 2.89” |
| XOL375 | 0.49” | 1.91” | 1.22” | 2.76” | 3.54” |
| XOL500 | 0.63” | 2.36” | 1.52” | 3.54” | 4.29” |
| XOL625 | 0.75” | 2.97” | 2.01” | 4.41” | 5.57” |
