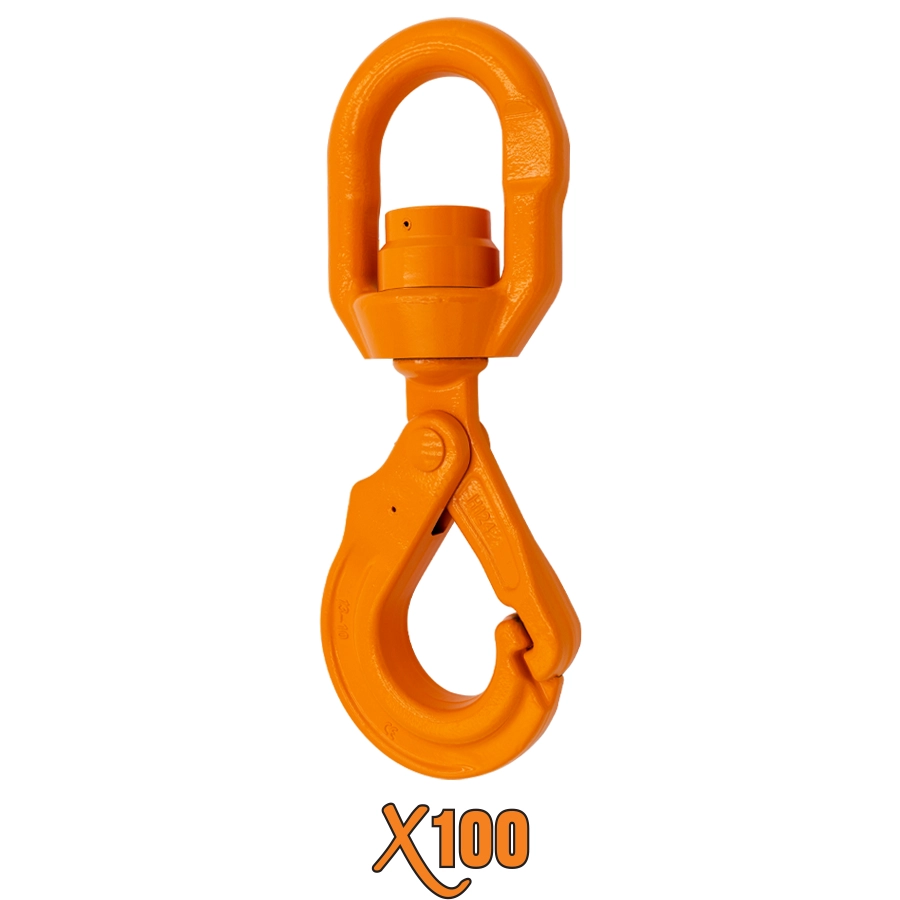

X100® Grade 100 Swivel Self Locking Hooks with Ball Bearing
APPROVED FOR OVERHEAD LIFTING
- Approved for Overhead Lifting

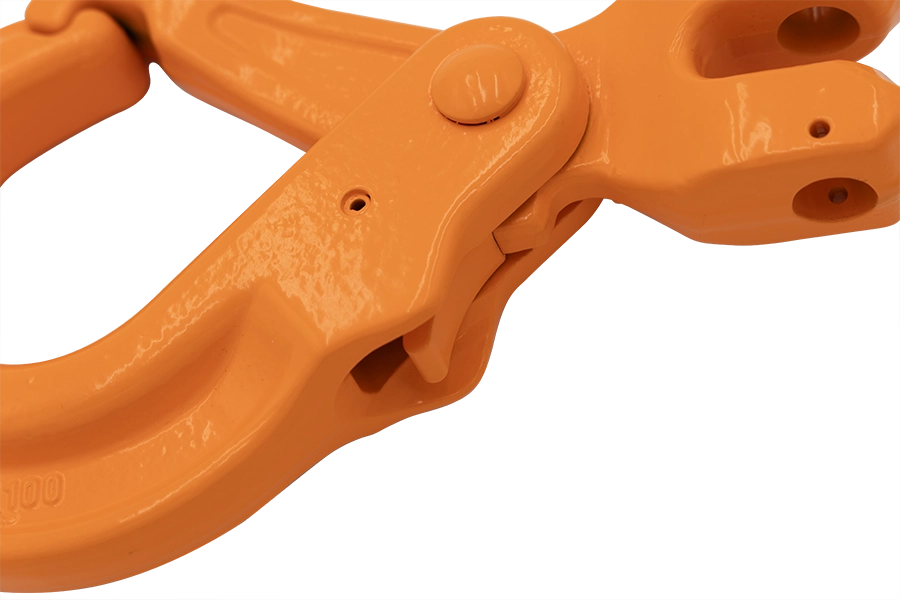

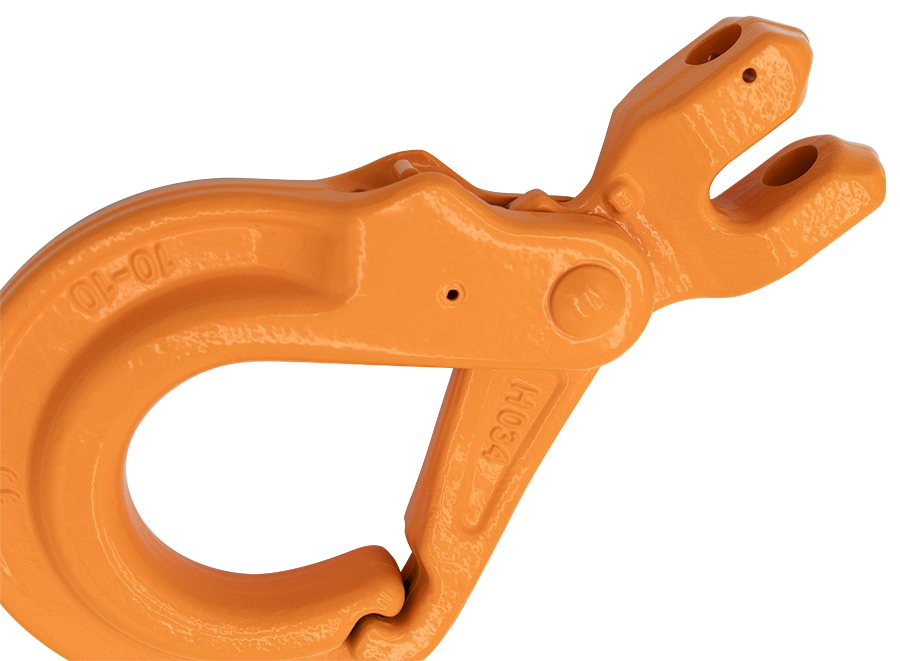

- Notched Integrated Latch to Help Avoid Hook Damage
- 100% Forged Alloy Steel
- Quenched and Tempered
- Powder Coated X100 Blaze Orange
- 100% Proof Tested at 2 times the Working Load Limit
- 100% Mag-Particle Crack Detection
- Embossed Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability

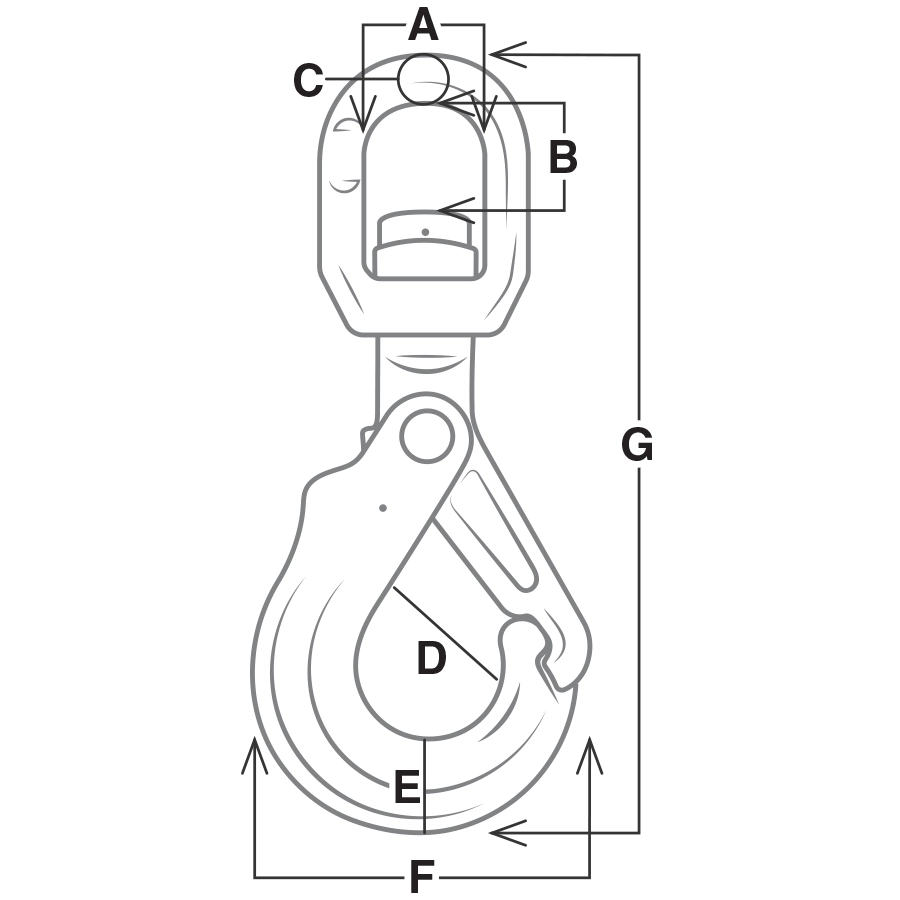

| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |||
| XSSL281-312BB | 9/32″ – 5/16” | 1.380” | 1.000” | 0.500” | 1.330” | 0.940” | 3.700” | 8.800” | 5,700 |
| XSSL375BB | 3/8″ | 1.650” | 1.270” | 0.590” | 1.700” | 1.230” | 4.500” | 10.450” | 8,800 |
| XSSL500BB | 1/2” | 1.930” | 1.690” | 0.690” | 2.000” | 1.590” | 5.520” | 12.990” | 15,000 |
| XSSL625BB | 5/8” | 2.400” | 2.170” | 0.850” | 2.430” | 1.990” | 6.710” | 16.260” | 22,600 |
Ultimate load is 5 times the Working Load Limit. Replacement Trigger Kits available.
| SIZE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XSSL281-312BB | 1.380” | 1.000” | 0.500” | 1.330” | 0.940” | 3.700” | 8.800” |
| XSSL375BB | 1.650” | 1.270” | 0.590” | 1.700” | 1.230” | 4.500” | 10.450” |
| XSSL500BB | 1.930” | 1.690” | 0.690” | 2.000” | 1.590” | 5.520” | 12.990” |
| XSSL625BB | 2.400” | 2.170” | 0.850” | 2.430” | 1.990” | 6.710” | 16.260” |
