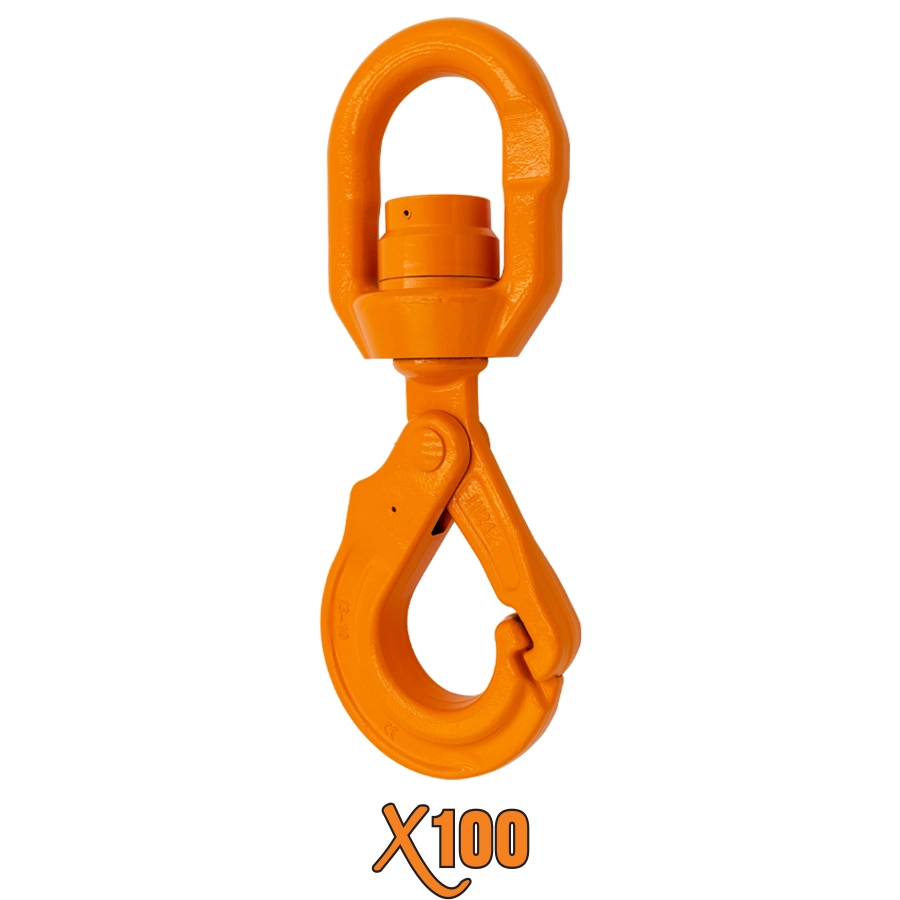

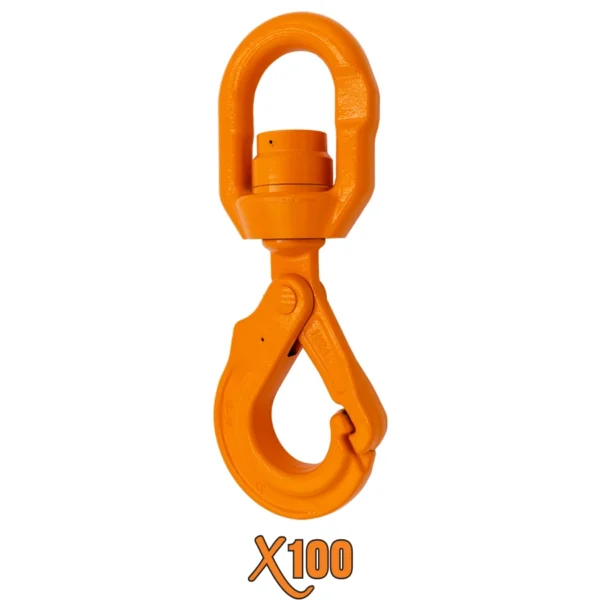

X100® Grade 100 Swivel Self Locking Hook with Bronze Bushing
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
- With bushing
- Replacement Trigger Kits available
- OSHA compliant traceable “X100” marking in raised lettering

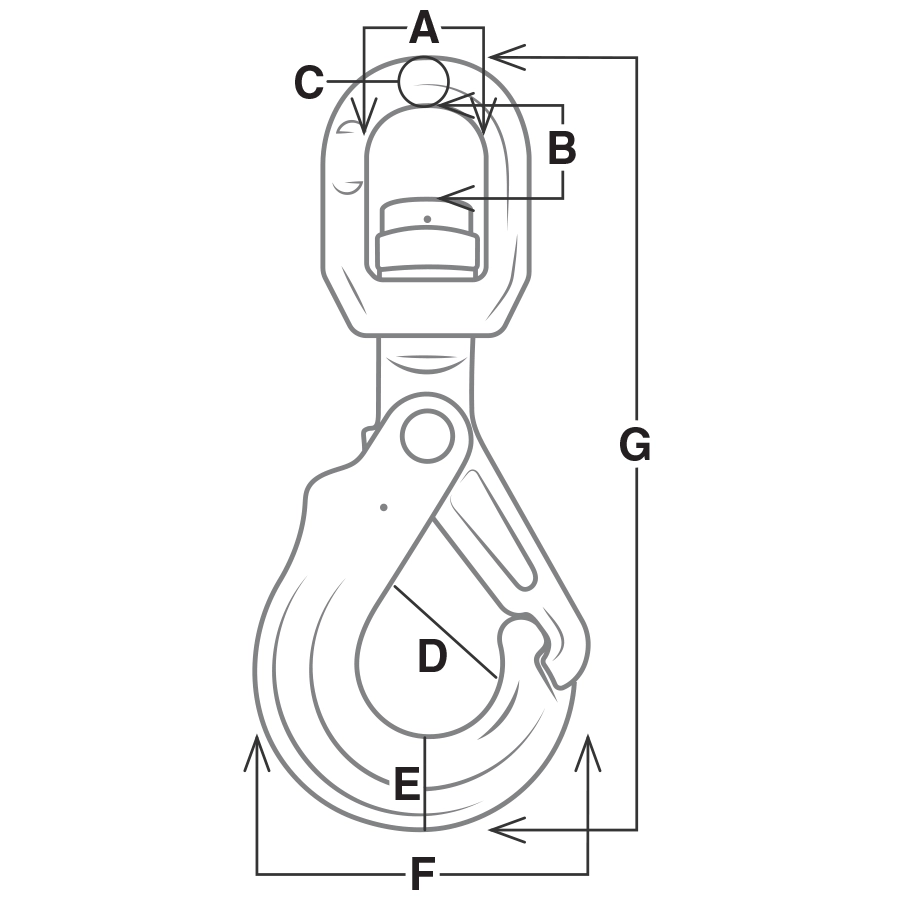

| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |||
| XSSL281-312 | 9/32″ – 5/16” | 1.42” | 1.04” | 0.51” | 1.50” | 0.94” | 3.70” | 8.80” | 5,700 |
| XSSL375 | 3/8″ | 1.65” | 1.38” | 0.63” | 1.88” | 1.23” | 4.50” | 10.45” | 8,800 |
| XSSL500 | 1/2” | 1.89” | 1.89” | 0.73” | 2.11” | 1.59” | 5.52” | 12.99” | 15,000 |
| XSSL625 | 5/8” | 2.20” | 2.20” | 0.85” | 2.44” | 1.99” | 6.71” | 16.26” | 22,600 |
| STOCK NUMBER | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XSSL281-312 | 1.42” | 1.04” | 0.51” | 1.50” | 0.94” | 3.70” | 8.80” |
| XSSL375 | 1.65” | 1.38” | 0.63” | 1.88” | 1.23” | 4.50” | 10.45” |
| XSSL500 | 1.89” | 1.89” | 0.73” | 2.11” | 1.59” | 5.52” | 12.99” |
| XSSL625 | 2.20” | 2.20” | 0.85” | 2.44” | 1.99” | 6.71” | 16.26” |
• Notched tip to help avoid hook damage
• Forged directly into the hook
• Incorporated into all X100 self-locking hooks
