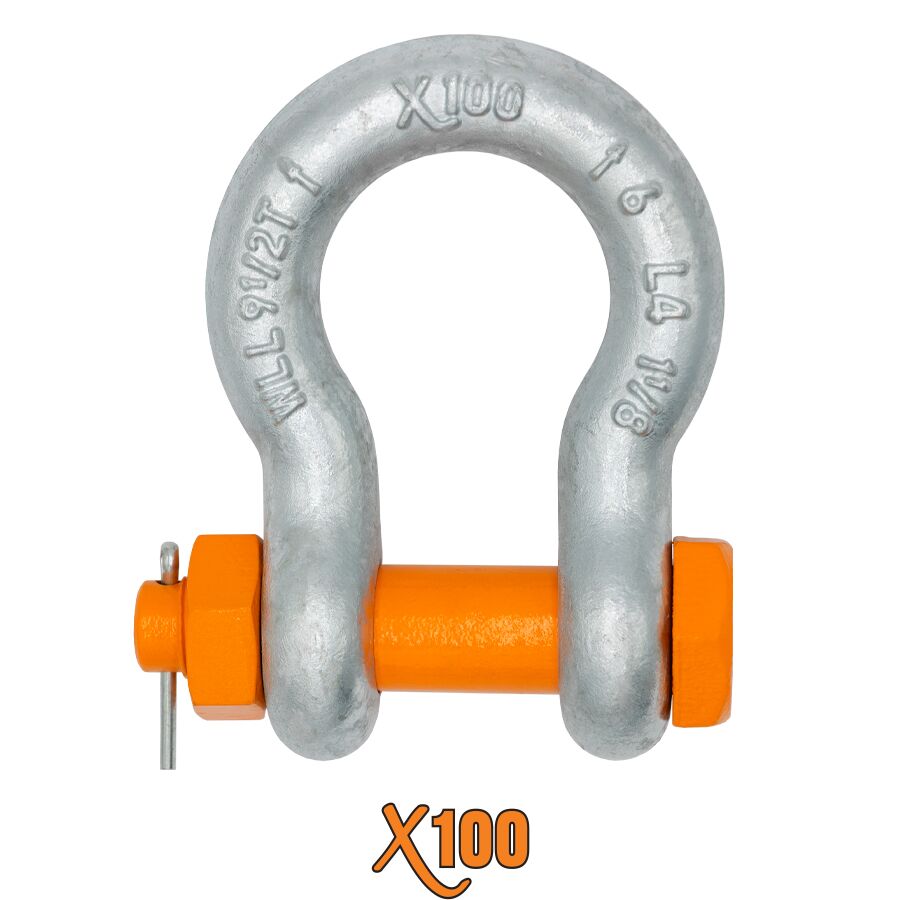

X100® Bolt Type Anchor Shackles
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Drop Forged
- Quenched & Tempered
- Carbon Steel Bow with Alloy Oversized Pin
- Pin is Powder Coated X100 BLAZE ORANGE
- Breaking Strength to Working Load Limit Ratio 6:1
- Embossed Markings: X100 Brand, Size, Working Load Limit, Lot Trace Code
DROP FORGED, LOAD RATED, HOT GALVANIZED
| SIZE | STOCK NUMBER | PIN DIA. (IN.) | WORKING LOAD LIMIT (TONS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|
| 3/8″ | XSAS375 | 4/9 |
1 |
0.37 |
| 7/16″ | XSAS437 | 1/2 |
1.5 |
0.50 |
| 1/2″ | XSAS500 | 5/8 |
2.00 |
0.92 |
| 5/8″ | XSAS625 | 3/4 |
3.25 |
1.55 |
| 3/4″ | XSAS750 | 7/8 |
4.75 |
2.53 |
| 7/8″ | XSAS875 | 1 |
6.50 |
4.24 |
| 1″ | XSAS100 | 1-1/8 |
8.50 |
5.88 |
| 1-1/8″ | XSAS1125 | 1-1/4 |
9.50 |
7.75 |
| 1-1/4″ | XSAS1250 | 1-3/8 |
12.00 |
11.65 |
| 1-3/8″ | XSAS1375 | 1-1/2 |
13.50 |
15.15 |
| 1-1/2″ | XSAS1500 | 1-3/4 |
17.00 |
18.75 |
| 1-3/4″ | XSAS1750 | 2 |
25.00 |
30.45 |
| 2″ | XSAS200 | 2-1/4 |
35.00 |
45.70 |
X100 Bolt Type Anchor Shackles are suitable for overhead lifting. According to Federal Specification RR-C-271G, Type IVA, Grade A, Class 3. Meets ASME B30.26 requirements.

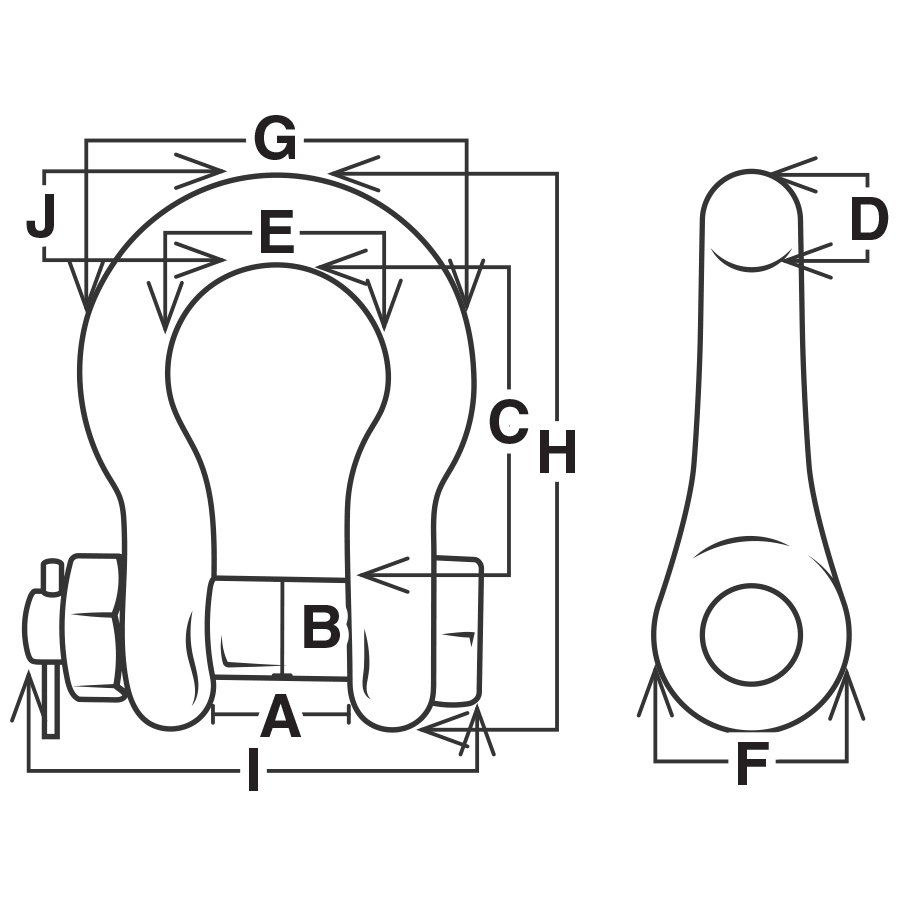

| STOCK NUMBER | DIMENSIONS (IN.) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | |
| XSAS375 |
0.708 |
0.44 |
1.44 |
0.4 |
0.995 |
1.5 |
1.8 |
2.53 |
2.36 |
0.044 |
|
XSAS437 |
0.725 |
0.51 |
1.65 |
0.47 |
1.1 |
1.08 |
2.02 |
2.87 |
2.56 |
0.45 |
| XSAS500 |
0.88 |
0.64 |
1.88 |
0.50 |
1.31 |
1.19 |
2.31 |
3.28 |
2.80 |
0.50 |
| XSAS625 |
1.06 |
0.77 |
2.38 |
0.63 |
1.69 |
1.50 |
2.94 |
4.19 |
3.56 |
0.69 |
| XSAS750 |
1.25 |
0.89 |
2.81 |
0.75 |
2.00 |
1.81 |
3.50 |
4.97 |
4.15 |
0.81 |
| XSAS875 |
1.44 |
1.02 |
3.31 |
0.88 |
2.28 |
2.09 |
4.03 |
5.83 |
4.82 |
0.97 |
| XSAS100 |
1.69 |
1.15 |
3.75 |
1.00 |
2.69 |
2.38 |
4.69 |
6.56 |
5.39 |
1.06 |
| XSAS1125 |
1.81 |
1.25 |
4.25 |
1.13 |
2.91 |
2.69 |
5.16 |
7.47 |
5.90 |
1.25 |
| XSAS1250 |
2.03 |
1.40 |
4.69 |
1.29 |
3.25 |
3.00 |
5.75 |
8.25 |
6.69 |
1.38 |
| XSAS1375 |
2.25 |
1.53 |
5.25 |
1.42 |
3.63 |
3.31 |
6.38 |
9.16 |
7.21 |
1.50 |
| XSAS1500 |
2.38 |
1.66 |
5.75 |
1.53 |
3.88 |
3.63 |
6.88 |
10.00 |
7.73 |
1.62 |
| XSAS1750 |
2.88 |
2.04 |
7.00 |
1.84 |
5.00 |
4.19 |
8.80 |
12.34 |
9.68 |
2.25 |
| XSAS200 |
3.25 |
2.30 |
7.75 |
2.08 |
5.75 |
4.81 |
10.15 |
13.68 |
10.81 |
2.40 |
