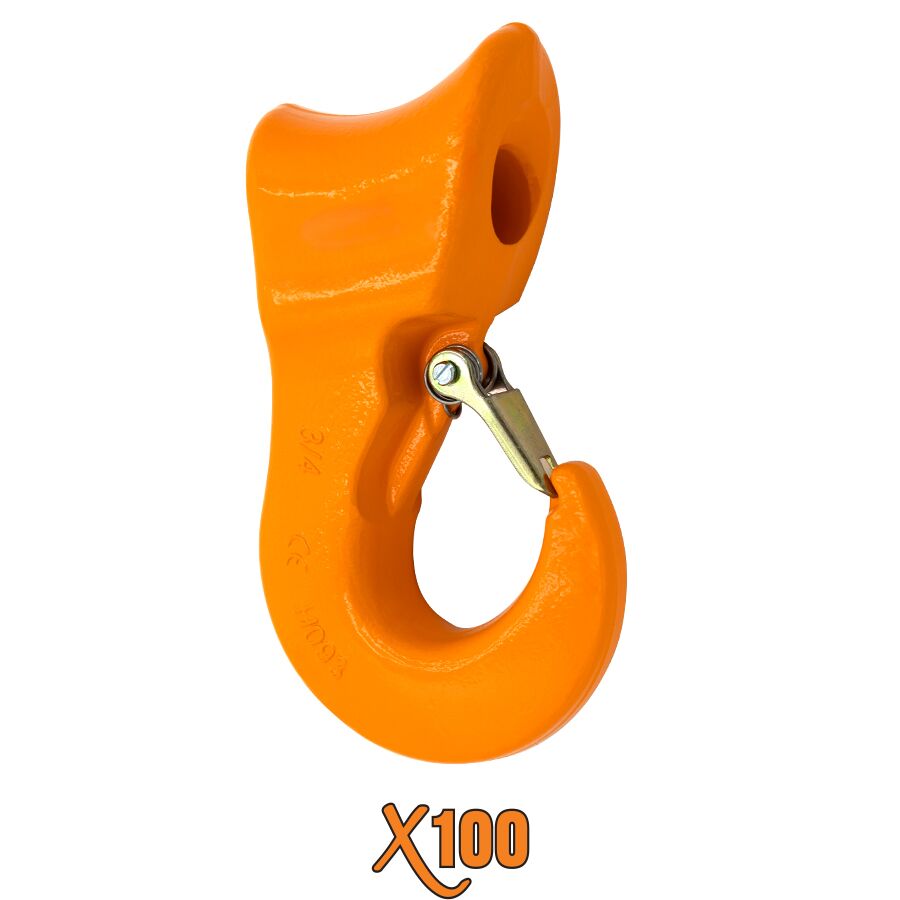

X100® Sliding Choker Hooks For Wire Rope
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X The Working Load Limit
- 100% Mag-Particle Crack Detection
| STOCK NUMBER | SIZE (IN) | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS) | COMPATIBLE LATCH |
|---|---|---|---|---|
| XSLDWR375 | 3/8 | 2,500 | 1.0 | LK6325 |
| XSLDWR500 | 1/2 | 3,800 | 1.60 | LK6374 |
| XSLDWR625 | 5/8 | 5,800 | 3.80 | LK6421 |
| XSLDWR750 | 3/4 | 8,200 | 6.60 | LK6468 |
| XSLDWR100 | 7/8 – 1 | 15,000 | 14.60 | LK6515 |
| STOCK NUMBER | DIMENSIONS (IN) | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| XSLDWR375 | 2.04 | 4.48 | 2.42 | 0.63 | 1.13 | 0.68 | 2.93 | 0.62 |
| XSLDWR500 | 2.24 | 5.03 | 2.96 | 0.87 | 1.32 | 0.79 | 3.29 | 0.75 |
| XSLDWR625 | 2.98 | 6.70 | 3.59 | 0.95 | 1.65 | 1.06 | 4.08 | 0.76 |
| XSLDWR750 | 3.30 | 7.72 | 4.27 | 1.14 | 2.14 | 1.21 | 4.91 | 0.99 |
| XSLDWR100 | 4.45 | 9.91 | 6.07 | 1.43 | 2.59 | 1.67 | 6.05 | 1.25 |
