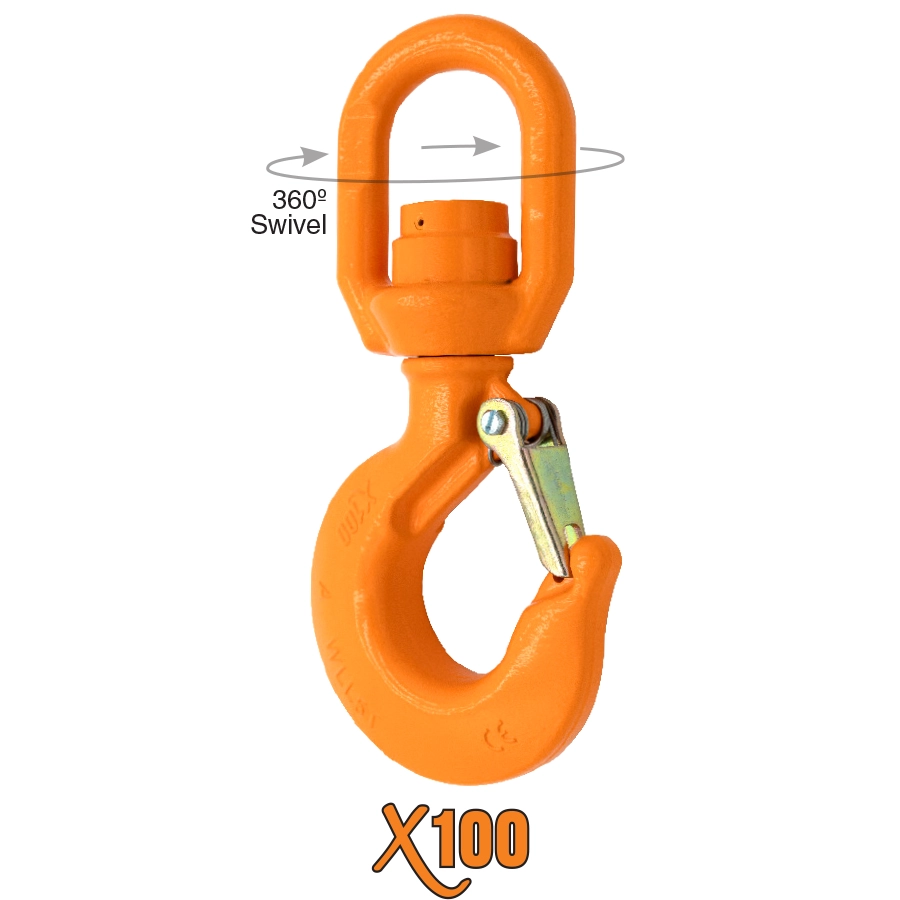

X100 Swivel Eye Hoist Hook with Ball Bearing
- Approved for Overhead Lifting
- Notched Tip and Latch
- Heavy Duty Latch, Spring and Pin included
- 100% Forged Alloy Steel
- Quenched and Tempered
- Powder Coated HI-VIZ Safety Orange
- 100% Proof Tested at 2.5 times the Working Load Limit
- 100% Mag-Particle Crack Detection
- Embossed Markings: X100 Brand Size, Working Load Limit, Conformity, Traceability

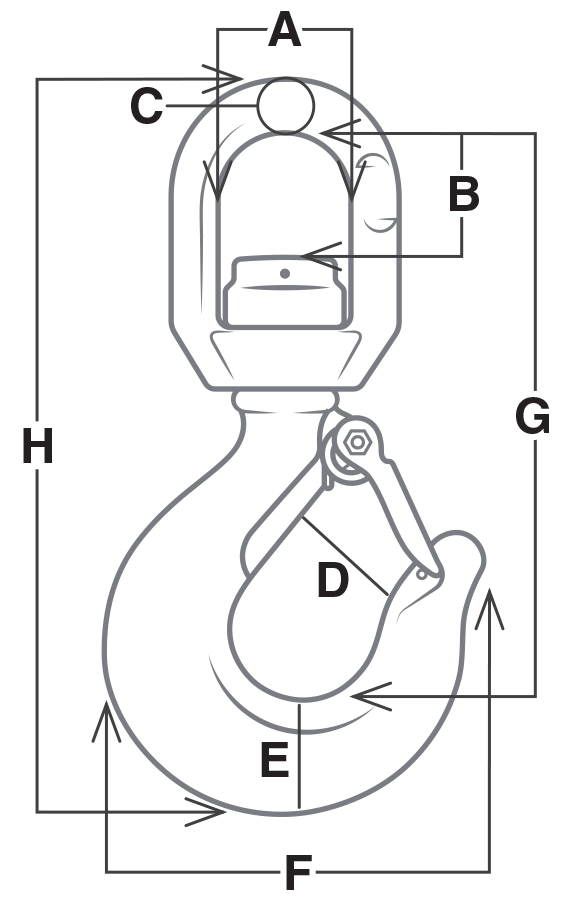

| STOCK NUMBER | WORKING LOAD LIMIT (TONS) | WEIGHT (LBS.) | DIMENSIONS | REPLACEMENT LATCH KIT STOCK NUMBER |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||
| XEHH100SBBi | 1 | 1.10 | 1.263 | 1.198 | .901 | .64 | .46 | .81 | 5.33 | XEHH100SBBLKi |
| XEHH200SBBi | 2 | 2.5 | 1.405 | 1.67 | 1.09 | .813 | .52 | .99 | 6.53 | XEHH200SBBLKi |
| XEHH300SBBi | 3 | 3.8 | 1.527 | 1.85 | 1.27 | .92 | .61 | 1.28 | 8.06 | XEHH300SBBLKi |
| XEHH500SBBi | 5 | 7.0 | 1.87 | 2.30 | 1.54 | 1.26 | .67 | 1.61 | 9.48 | XEHH500SBBLKi |
| XEHH700SBBi | 7 | 14.0 | 2.40 | 2.57 | 1.72 | 1.48 | .87 | 1.80 | 11.47 | XEHH700SBBLKi |
| XEHH1100SBBi | 11 | 22.3 | 2.91 | 3.54 | 2.16 | 1.97 | 1.02 | 2.03 | 14.47 | XEHH1100SBBLKi |
| XEHH1500SBBi | 15 | 30.0 | 2.91 | 3.54 | 2.16 | 1.97 | 1.02 | 2.03 | 14.47 | XEHH1500SBBLKi |
