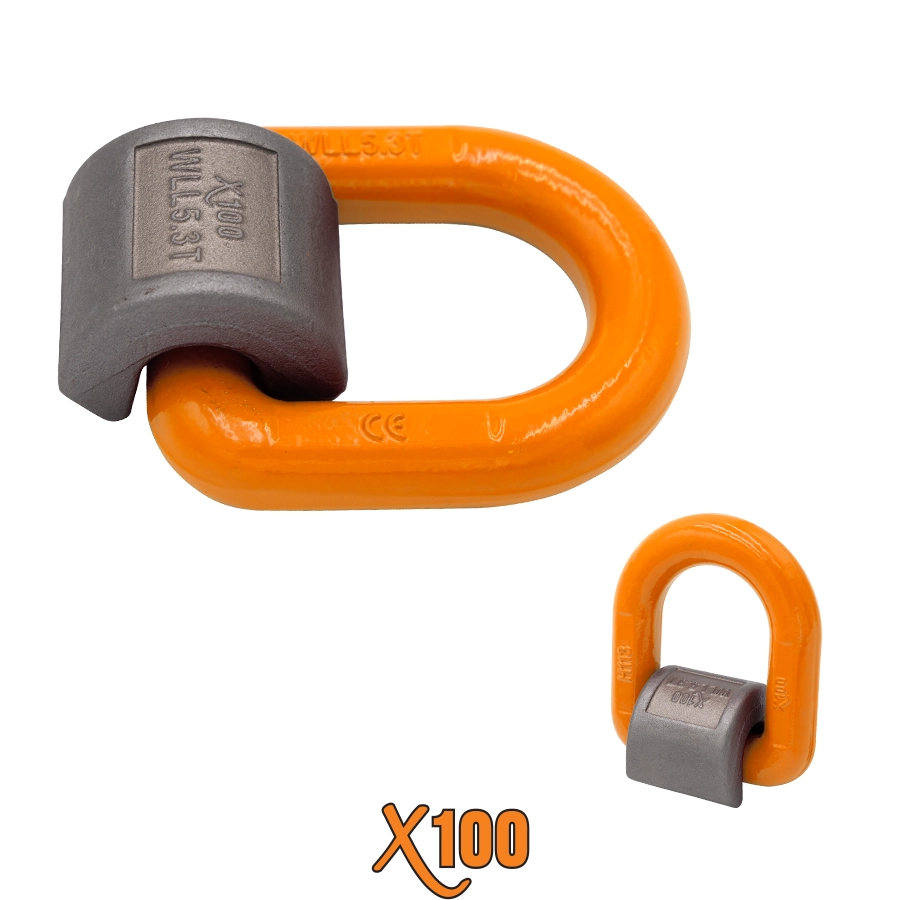

X100® Weld-on Lifting Point
APPROVED FOR OVERHEAD LIFTING
- Use weld-on pivoting link only with ferrous metal (steel)
- Loads may disengage from link if proper welding, assembly, and lifting procedures are not used
- Spring loaded pivoting link for easy rigging
- Always inspect weld-on lifting point for damage in the weld or the pivoting link. Evidence of wear, cracks, elongation, etc., is grounds for removal from service
- Each lifting point packed with instructions, warnings, and cautions
- Ultimate load is 4 times the working load limit
- Do not side load
- Suitable for overhead lifting if welded by a certified welder*
| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| XWLP1T | 1 Ton | 1.61” | 3.09” | 0.51” | 1.46” | 1.38” | 2,000 | 0.9 |
| XWLP2T | 2 Ton | 1.65” | 3.46” | 0.55” | 1.57” | 1.46” | 4,000 | 1.05 |
| XWLP3T | 3 Ton | 1.77” | 3.70” | 0.67” | 1.67” | 1.57” | 6,000 | 1.55 |
| XWLP5T | 5 Ton | 2.40” | 4.65” | 0.87” | 2.17” | 2.05” | 10,000 | 2.6 |
| XWLP8T | 8 Ton | 2.78” | 5.55” | 1.04” | 2.75” | 2.24” | 16,000 | 4.0 |
| XWLP15T | 15 Ton | 3.82” | 7.40” | 1.34” | 3.54” | 3.42” | 30,000 | 12.5 |
| STOCK NUMBER | DIMENSIONS | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| XWLP1T | 1.61” | 3.09” | 0.51” | 1.46” | 1.38” |
| XWLP2T | 1.65” | 3.46” | 0.55” | 1.57” | 1.46” |
| XWLP3T | 1.77” | 3.70” | 0.67” | 1.67” | 1.57” |
| XWLP5T | 2.40” | 4.65” | 0.87” | 2.17” | 2.05” |
| XWLP8T | 2.78” | 5.55” | 1.04” | 2.75” | 2.24” |
| XWLP15T | 3.82” | 7.40” | 1.34” | 3.54” | 3.42” |
