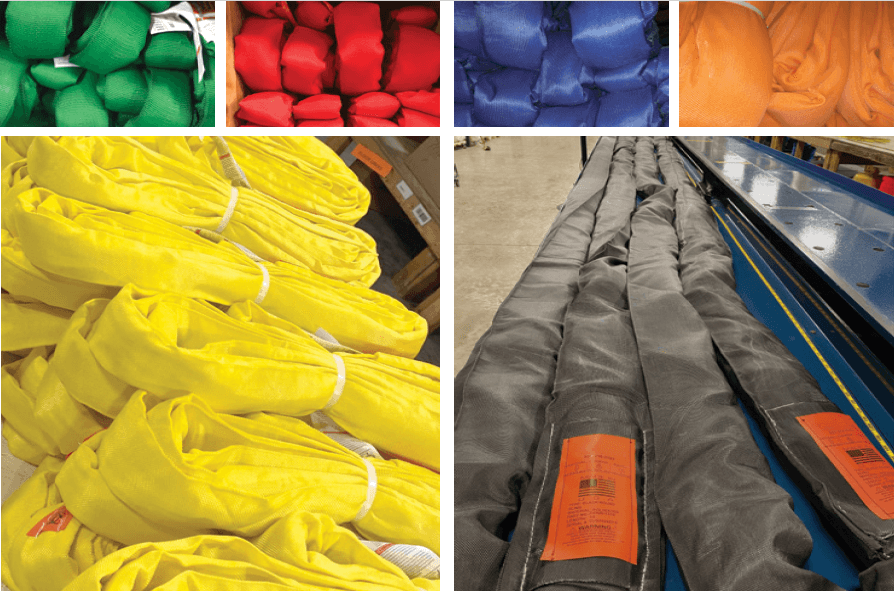

Specifications
COLOR SLEEVE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | MINIMUM LENGTH (FT) | BODY DIAMETER | WEIGHT/FT (LBS.) | |||
---|---|---|---|---|---|---|---|---|
VERTICAL | CHOKER | BASKET AT 90* | BASKET AT 45* | |||||
GREEN | HPENR10 | 10,000 | 8,000 | 20,000 | 14,000 | 3 | 0.875″ | 0.33 |
YELLOW | HPENR20 | 20,000 | 16,000 | 40,000 | 28,000 | 3 | 1.125″ | 0.47 |
TAN | HPENR30 | 30,000 | 24,000 | 60,000 | 42,000 | 3 | 1.250″ | 0.66 |
RED | HPENR40 | 40,000 | 32,000 | 80,000 | 56,000 | 3 | 1.375″ | 0.80 |
WHITE | HPENR50 | 50,000 | 40,000 | 100,000 | 70,000 | 3 | 1.500″ | 1.08 |
BLUE | HPENR60 | 60,000 | 48,000 | 120,000 | 84,000 | 3 | 1.625″ | 1.31 |
GRAY | HPENR70 | 70,000 | 56,000 | 140,000 | 98,000 | 3 | 1.875″ | 1.55 |
GRAY | HPENR80 | 80,000 | 64,000 | 160,000 | 113,000 | 5 | 2.125″ | 1.74 |
ORANGE | HPENR90 | 90,000 | 72,000 | 180,000 | 127,000 | 5 | 2.250″ | 1.93 |
ORANGE | HPENR100 | 100,000 | 80,000 | 200,000 | 141,000 | 5 | 2.500″ | 2.16 |
BROWN | HPENR125 | 125,000 | 100,000 | 250,000 | 176,000 | 5 | 3.125″ | 2.82 |
BLACK (6.5″) | HPENR150 | 150,000 | 120,000 | 300,000 | 210,000 | 5 | 3.750″ | 3.53 |
OLIVE | HPENR175 | 175,000 | 140,000 | 350,000 | 240,000 | 5 | 4.375″ | 4.32 |
BLACK (8″) | HPENR200 | 200,000 | 160,000 | 400,000 | 280,000 | 5 | 5.250″ | 5.45 |
