X100 Fixed Eye Hoist Hook

Approved for overhead lifting
Forged alloy steel
Quenched and Tempered
Powder Coated HI-VIZ safety Orange
100% proof tested at 2.5 times the working load limit
100% mag-particle crack detection
Approved for overhead lifting
Forged alloy steel
Quenched and Tempered
Powder Coated HI-VIZ safety Orange
100% proof tested at 2.5 times the working load limit
100% mag-particle crack detection

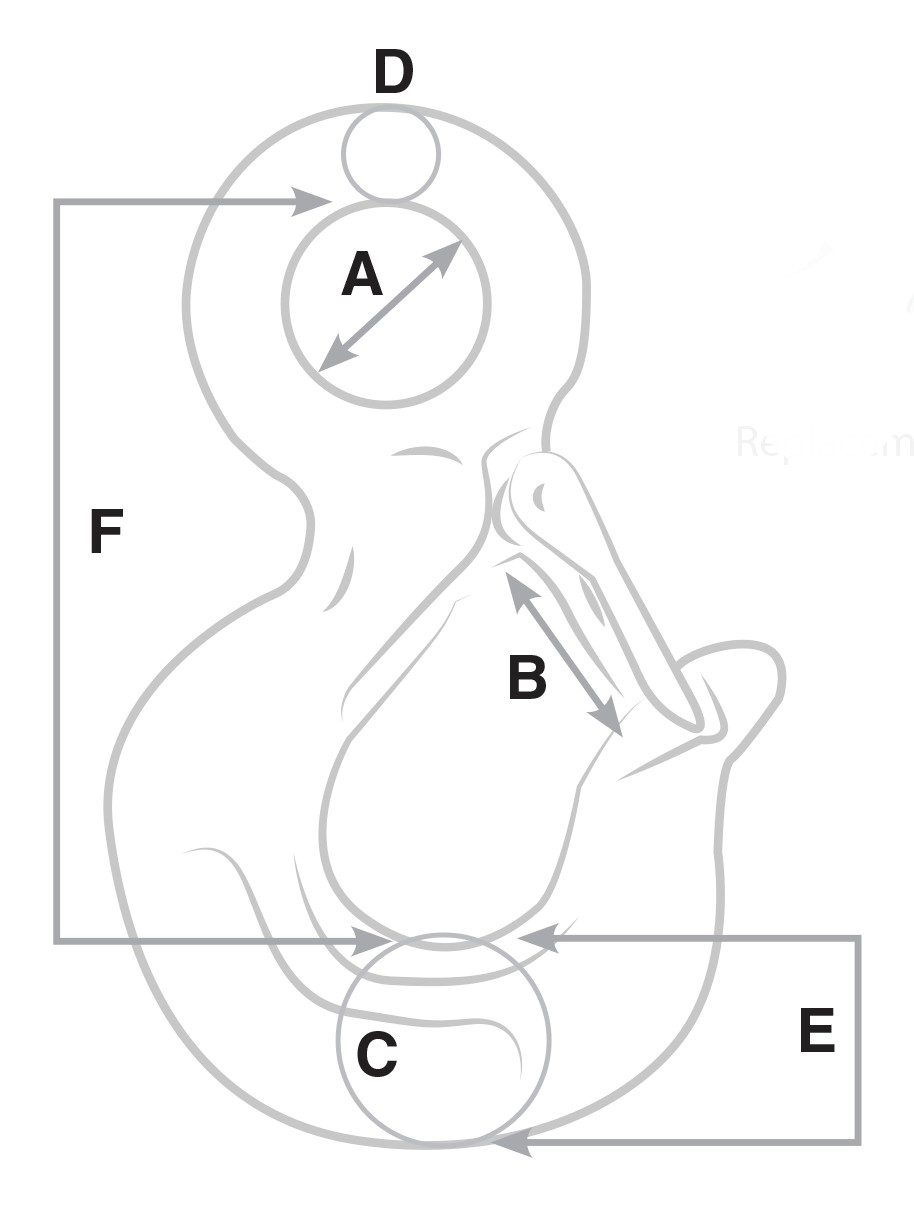

STOCK NUMBER | SIZE/WORKING LOAD LIMIT (TONS) | DIMENSIONS | |||||
---|---|---|---|---|---|---|---|
A | B | C | D | E | F | ||
XEHH100i | 1 ton | .74 | .88 | .647 | .40 | .89 | 3.07 |
XEHH150i | 1.5 ton | .85 | .88 | .72 | .46 | .97 | 3.64 |
XEHH200i | 2 ton | 1.09 | 1.00 | .92 | .53 | 1.07 | 3.98 |
XEHH300i | 3 ton | 1.205 | 1.07 | 1.00 | .70 | 1.33 | 4.56 |
XEHH500i | 5 ton | 1.53 | 1.46 | 1.35 | .80 | 1.45 | 5.73 |
XEHH700i | 7 ton | 2.00 | 1.67 | 1.64 | .99 | 1.81 | 7.10 |
XEHH1100i | 11 ton | 2.43 | 2.12 | 1.95 | 1.17 | 2.26 | 8.98 |
