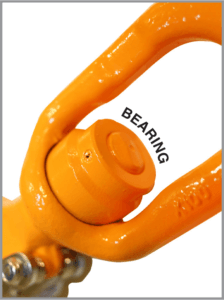

X100® Grade 100 Swivel Self Locking Hook with Ball Bearing
- Approved for Overhead Lifting
- Notched Integrated Latch to Help Avoid Hook Damage
- 100% Forged Alloy Steel
- Quenched and Tempered
- Powder Coated HI-VIZ Safety Orange
- 100% Proof Tested at 2.5 times the Working Load Limit
- 100% Mag-Particle Crack Detection

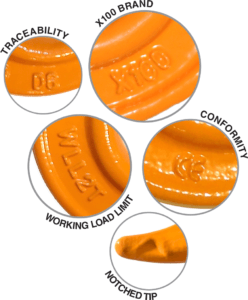

- Embossed Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability
STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | ||||||
---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | G | |||
XSSL281-312WB | 9/32″ – 5/16” | 1.380” | 1.000” | 0.500” | 1.330” | 0.940” | 3.700” | 8.800” | 5,700 |
XSSL375WB | 3/8″ | 1.650” | 1.270” | 0.590” | 1.700” | 1.230” | 4.500” | 10.450” | 8,800 |
XSSL500WB | 1/2” | 1.930” | 1.690” | 0.690” | 2.000” | 1.590” | 5.520” | 12.990” | 15,000 |
XSSL625WB | 5/8” | 2.400” | 2.170” | 0.850” | 2.430” | 1.990” | 6.710” | 16.260” | 22,600 |
Ultimate load is 5 times the Working Load Limit. Replacement Trigger Kits available.
![](https://cargocontrolusa.com/wp-content/uploads/2024/04/dimensions-170x300-1.webp)
SIZE | DIMENSIONS | ||||||
---|---|---|---|---|---|---|---|
A | B | C | D | E | F | G | |
XSSL281-312WB | 1.380” | 1.000” | 0.500” | 1.330” | 0.940” | 3.700” | 8.800” |
XSSL375WB | 1.650” | 1.270” | 0.590” | 1.700” | 1.230” | 4.500” | 10.450” |
XSSL500WB | 1.930” | 1.690” | 0.690” | 2.000” | 1.590” | 5.520” | 12.990” |
XSSL625WB | 2.400” | 2.170” | 0.850” | 2.430” | 1.990” | 6.710” | 16.260” |
