• Approved for overhead lifting
• Forged alloy steel
• Quenched & tempered
• Powder coated
• Forged latch
• 100% mag-particle crack detection

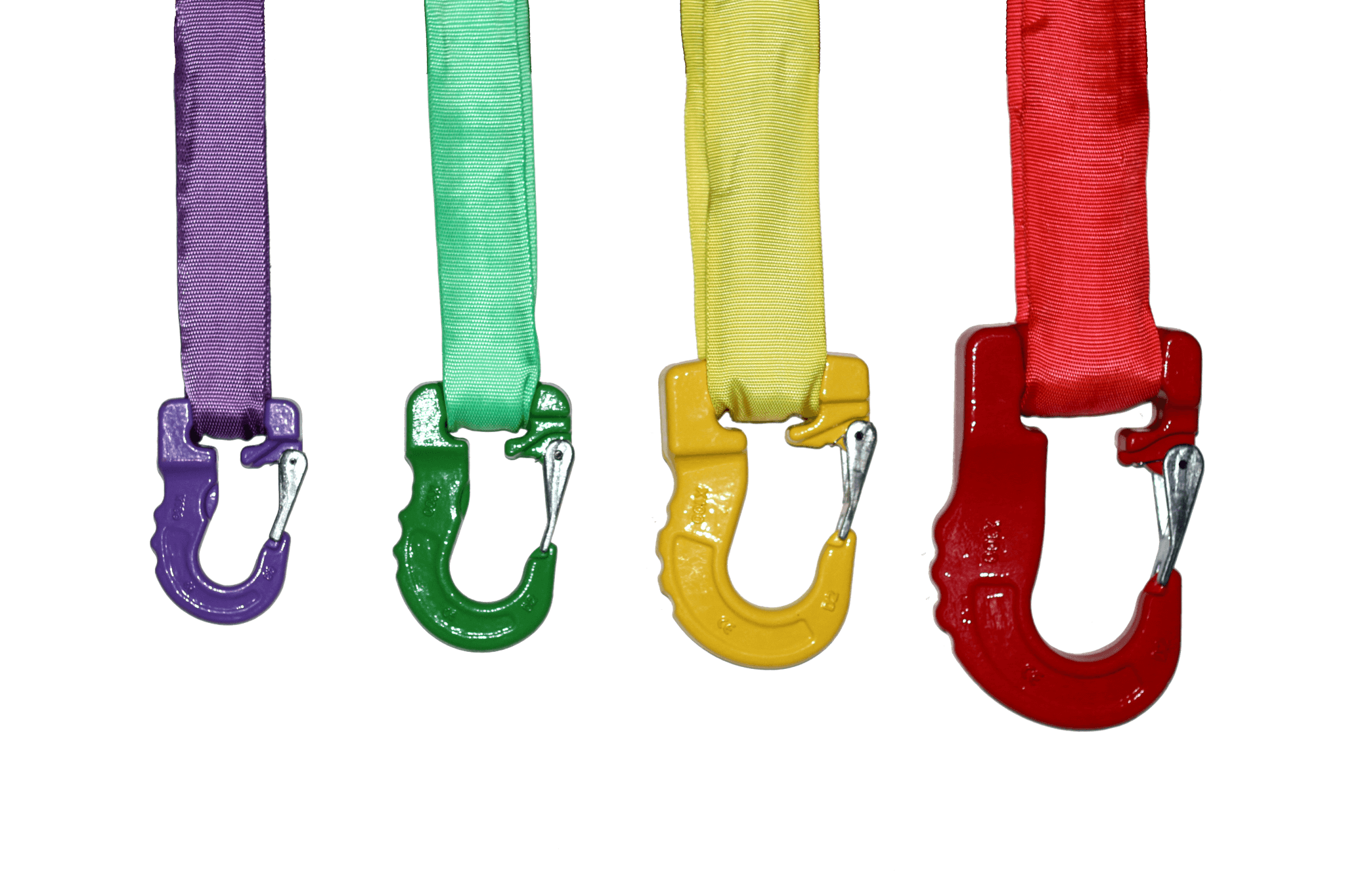

• Color coded to match Endless Round Sling
| STOCK NUMBER | COLOR | DIMENSIONS | WORKING LOAD LIMIT (lbs.) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |||
| XE1HK | Purple | 3.07” | 4.84” | 0.47” | 1.61” | 0.67” | 0.79” | 0.63” | 1.22” | 2,600 |
| XE2HK | Green | 3.58” | 5.83” | 0.75” | 1.77” | 0.83” | 1.02” | 0.67” | 1.57” | 5,300 |
| XE3HK | Yellow | 4.45” | 6.89” | 0.83” | 2.17” | 0.98” | 1.26” | 0.98” | 1.97” | 8,400 |
| XE5HK | Red | 5.21” | 8.78” | 1.57” | 2.76” | 1.42” | 2.34” | 1.42” | 2.34” | 13,200 |
| STOCK NUMBER | DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| XE1HK | 3.07” | 4.84” | 0.47” | 1.61” | 0.67” | 0.79” | 0.63” | 1.22” |
| XE2HK | 3.58” | 5.83” | 0.75” | 1.77” | 0.83” | 1.02” | 0.67” | 1.57” |
| XE3HK | 4.45” | 6.89” | 0.83” | 2.17” | 0.98” | 1.26” | 0.98” | 1.97” |
| XE5HK | 5.21” | 8.78” | 1.57” | 2.76” | 1.42” | 2.34” | 1.42” | 2.34” |
